Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika Sensors Traffic meteorological wind speed monitoring sensor 1

Rika Sensors Traffic meteorological wind speed monitoring sensor 2

Rika Sensors Traffic meteorological wind speed monitoring sensor 3

Rika Sensors Traffic meteorological wind speed monitoring sensor 4

Rika Sensors Traffic meteorological wind speed monitoring sensor 5

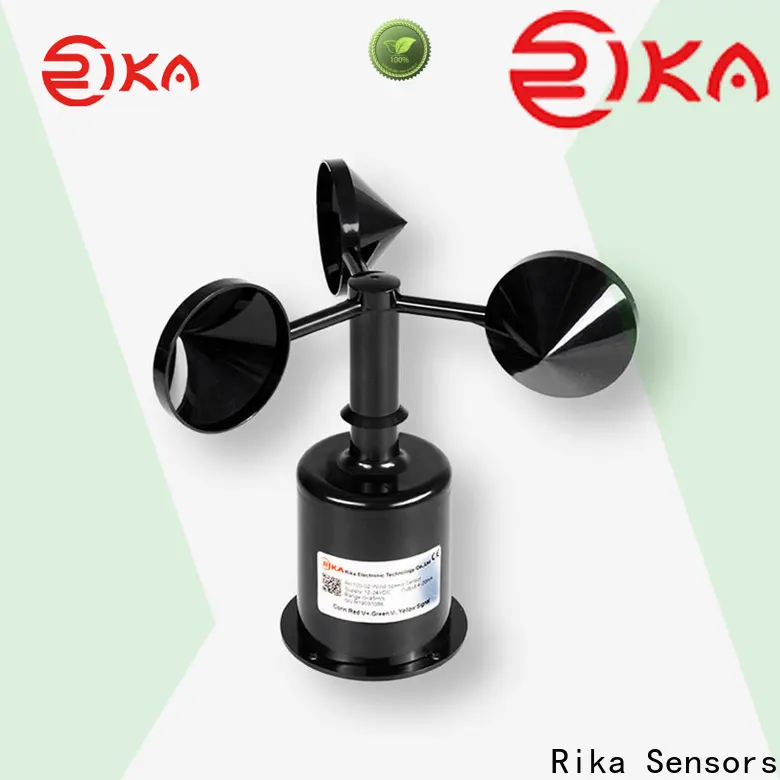

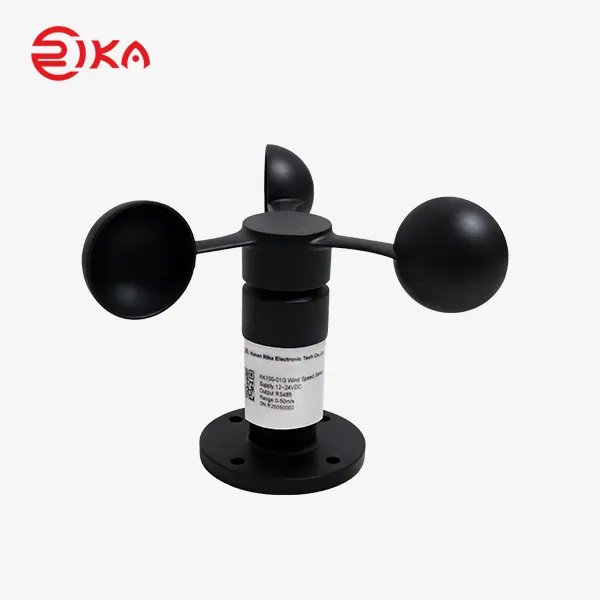

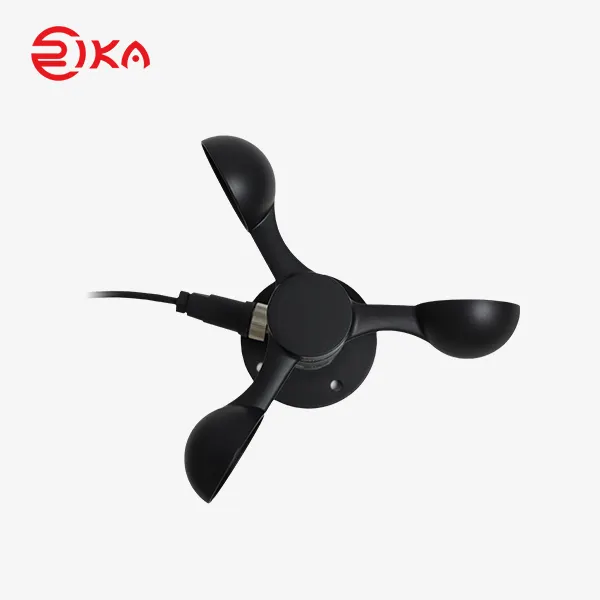

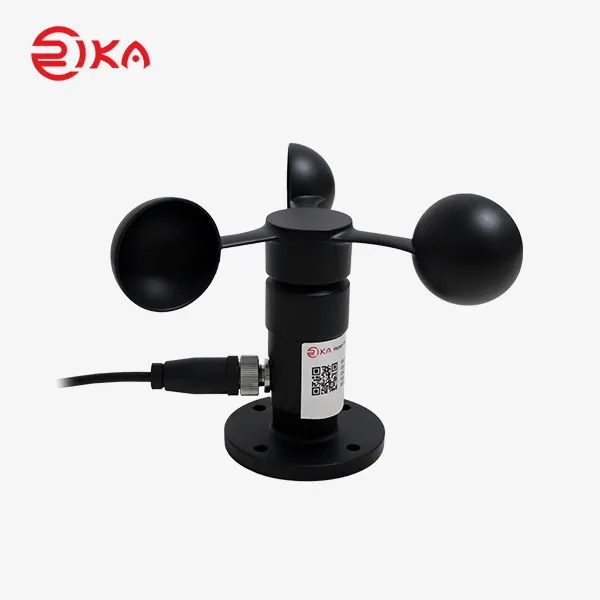

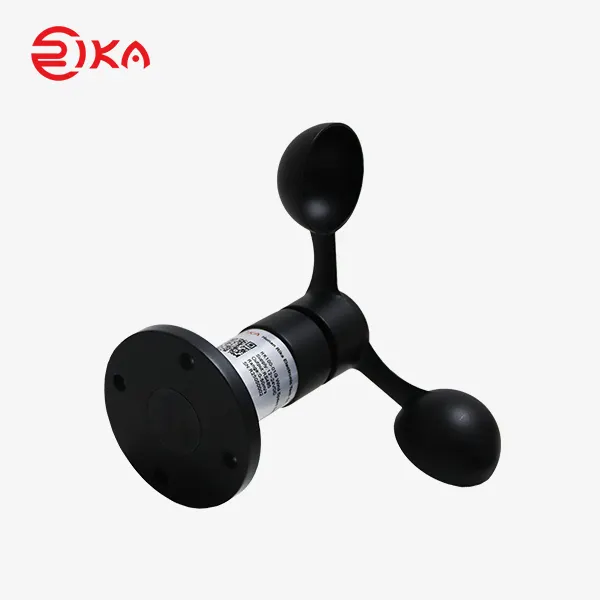

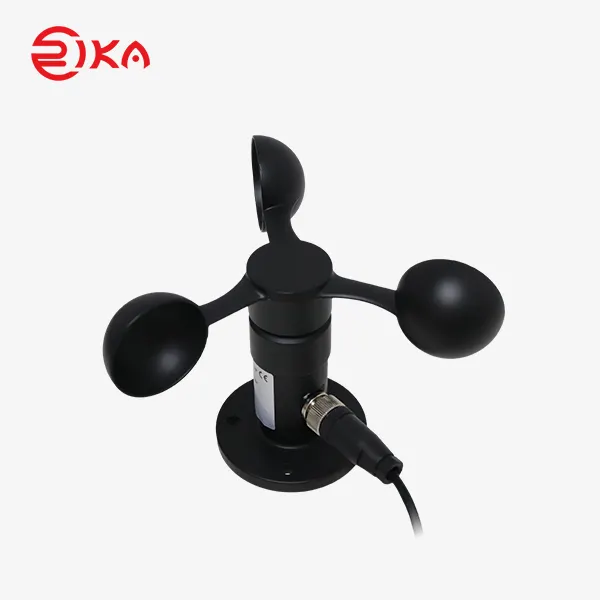

Rika Sensors Traffic meteorological wind speed monitoring sensor

Payment:

T/T, L/C or Paypal

OEM/ODM:

Available

MOQ:

1 PCS

Model:

RK100-01G

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

PDF Download

PRODUCT DESCRIPTION

The RK100-01G wind speed sensor adopts aluminum alloy precision die casting technology, with small dimensional tolerances, high surface accuracy, built-in high-performance circuits, high strength, strong weather resistance, strong corrosion resistance, and good waterproof performance. This sensor is widely used in places where wind speed needs to be measured, such as solar farm, meteorology, ships, docks, tower cranes, ports, agriculture, etc.

Rika Sensors Traffic meteorological wind speed monitoring sensor 6

Rika Sensors Traffic meteorological wind speed monitoring sensor 7

Low starting threshold.

Rika Sensors Traffic meteorological wind speed monitoring sensor 8

Overall carbon fiber material.

Rika Sensors Traffic meteorological wind speed monitoring sensor 9

Strong corrosion resistant ability.

Rika Sensors Traffic meteorological wind speed monitoring sensor 10

Light structure.

Rika Sensors Traffic meteorological wind speed monitoring sensor 11

Various output signals optional.

Rika Sensors Traffic meteorological wind speed monitoring sensor 12

Easy Installation.

SPECIFICATIONS

Rika RK100-01G wind speed sensor features

Item	Technical Specification
Supply voltage	12-24VDC	5-24VDC
Output	RS485,4-20mA	Pulse(Pulse high level depends on the supply voltage)
Range	0-30m/s,0-50m/s,0-60m/s
Starting threshold	0.2m/s
Limit wind speed	70m/s
Accuracy	±(0.3+0.03V)m/s
Resolution	0.1m/s
Response time	<1s
Power consumption	20mA@12V
Ingress protection	IP65
Operating temperature	-30℃-+70℃
Main material	Aluminum alloy
Connector	M12 waterproof connector
Finish	Polyester powder electrostatic spraying(black)
Weight(unpacked)	410g(Excluding wires)
Storage condition	10℃-60℃@20%-90%RH

DIMENSION & MOUNTING

Rika RK100-01G 3-cup anemometer size

Flange mounted, fix four screws on the bracket and keep the product horizontal.

Rika Sensors Traffic meteorological wind speed monitoring sensor 13

Unit:mm

PRODUCT APPLICATION

Rika Sensors Traffic meteorological wind speed monitoring sensor 14

Agricultural Meteoroiogical Station

Rika Sensors Traffic meteorological wind speed monitoring sensor 15

Farming Weather Stations

Rika Sensors Traffic meteorological wind speed monitoring sensor 16

Greenhouse Weather Station

Rika Sensors Traffic meteorological wind speed monitoring sensor 17

Metereological Monitoring For Expressway

Rika Sensors Traffic meteorological wind speed monitoring sensor 18

Metereological Monitoring For High-altitude Facility

Rika Sensors Traffic meteorological wind speed monitoring sensor 19

Metereological Monitoring For Seaport

Rika Sensors Traffic meteorological wind speed monitoring sensor 20

Weather Monitoring For Power Generating

Rika Sensors Traffic meteorological wind speed monitoring sensor 21

Wind Speed Sensor & Wind Direction Sensor

CUSTOMER TESTIMONIALS

Rika Sensors Traffic meteorological wind speed monitoring sensor 22

Rika Sensors Traffic meteorological wind speed monitoring sensor 23

CERTIFICATE

Rika Sensors Traffic meteorological wind speed monitoring sensor 24

CE-Wind Speed Sensor

Rika Sensors Traffic meteorological wind speed monitoring sensor 25

EMC-Wind Speed Sensor

Rika Sensors Traffic meteorological wind speed monitoring sensor 26

ISO9001

Rika Sensors Traffic meteorological wind speed monitoring sensor 27

TUV Certificate

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
