PRODUCT DESCRIPTION

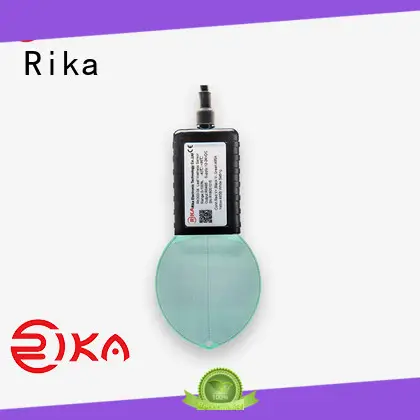

RK300-04 Leaf Wetness Sensor is an important tool for observing and studying leaf wetness, preventing pests and diseases, and spraying sprinkler control. The accurate measurement of the moisture content of the leaf surface can be used to monitor the trace moisture or ice crystal residue. The shape of the sensor is simulated by the blade, which can simulate the characteristics of the leaf surface, so that it can reflect the situation of the leaf surface more accurately. By measuring the variation of the dielectric constant of the upper surface of the blade, the mist, water vapor and ice can be measured.

best air quality detector industry for humidity monitoring-1

best air quality detector industry for humidity monitoring-2

High sensitivity.

best air quality detector industry for humidity monitoring-3

LCD display optional.

best air quality detector industry for humidity monitoring-4

Temperature compensation.

best air quality detector industry for humidity monitoring-5

Fast response.

best air quality detector industry for humidity monitoring-6

Multiple signal output options.

best air quality detector industry for humidity monitoring-7

Excellent stability.

SPECIFICATIONS

Item	Technical Specification
Range	Wetness: 0-100% Temperature: -40-+80℃
Accuracy	Wetness: ±3%(0-50%),±5%(>50%) Temperature: ±0.5℃
Repeatability	<±3%fs
Temperature Drift	≤0.2%FS/℃
Supply	5VDC,12-24VDC
Output	4-20mA,0-5V,0-2V,RS485
IP Rating	IP65
Operating Temperature	-40℃-+80℃
Dimension	6513145mm
Storage	-40-70℃@20%-90%RH

DIMENSION & MOUNTING

best air quality detector industry for humidity monitoring-8

When installing the sensor to simulate the face of the grid part of the face, roughly the same angle with the surrounding surface and the ground. Such as foliar fertilization spray testing, can be installed in the plant height of different height, to ensure that the plant close to the ground effect of foliar fertilization.

PRODUCT DETAILS

best air quality detector industry for humidity monitoring-9

best air quality detector industry for humidity monitoring-10 Product Principle

best air quality detector industry for humidity monitoring-11

best air quality detector industry for humidity monitoring-12 Multiple Output Optional

best air quality detector industry for humidity monitoring-13

best air quality detector industry for humidity monitoring-14 RS485 Or RS232 Output

best air quality detector industry for humidity monitoring-15

best air quality detector industry for humidity monitoring-16 Product Features

PRODUCT APPLICATION

best air quality detector industry for humidity monitoring-17

Leaf wetness monitoring

best air quality detector industry for humidity monitoring-18

Agriculture irrigation
