The design of Rika rain water gauge conforms to specific heavy-duty usage requirements. It is designed with characteristics of enhanced mechanical structure, less energy consumption parts, and durable components.
Inquire Online
Get the latest price
Quantity Needed:
Pieces
E-mail:
Enterprise Strength
  • Rika Sensors takes customer's satisfaction as an important criterion and provides thoughtful and reasonable services for customers with a professional and dedicated attitude.

PRODUCT DESCRIPTION

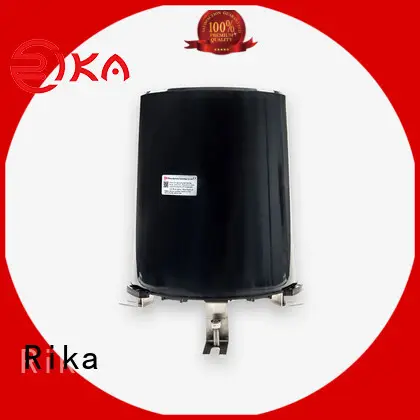

RK400-04 Economical Tipping Bucket Rainfall Sensor is a hydrology, meteorological instrument used to measure the nature of rainfall, and it converts the precipitation  into a pulse signal output. Designed with insect-proof nets, free blocking nozzle and built-in leveller. The model can be used in meteorology, hydrology, agriculture, forestry, field monitoring stations and other industries. Combined with rainfall recorder can be used to measure measure precipitation, precipitation intensity, precipitation time.

best best digital rain gauge factory for hydrometeorological monitoring-1

SPECIFICATIONS

Item

Specification

Collector

Diameter :φ200mm, height: 271mm

Measured rainfall intensity

Max: 4mm/min

Allow rainfall intensity

Max: 8mm/min

Resolution

0.2mm

Accuracy(2mm/min)

±4%

Maximum load voltage

30VDC(pulse output)

Maximum load current

20mA

Output

Pulses(@10kΩ&0.01uF),RS485(12-24VDC supply)

Operating temperature

0-60℃@0%-100%RH

Weight(unpacked)

Rainfall collector & tipping bucket: ABS,
     Supporting leg:304SS

Weight(unpacked)

2kg

WORKING PROCESS DIMENSION & MOUNTING

DIMENSION & MOUNTING

Adjust the balance foot screws to ensure that it is in a horizontal position.Using three fastening screws to fix this three support legs at the platform to keep the entire apparatus at an optimum level , which ensure the accuracy of rainfall data.

best best digital rain gauge factory for hydrometeorological monitoring-8

WORKING PROCESS

Rainfall is captured in the 200mm diameter collector funnel and is directed through a delivery pipe to fill a divided ABS injection molded tipping bucket device.The bucket is pivoted through its center and has a preset calibration to tip for 0.2 mm of rainfall. When the bucket is “full”, it pivots and empties - this action magnetically closes and opens a reed switch, sending a pulse signal to the data logger or electronic counter. Through this tipping “seesaw” action, the other side of the bucket is aligned to receive the flow from the delivery pipe. This recording and tipping cycle continues with rainfall.

PRODUCT DETAILS

best best digital rain gauge factory for hydrometeorological monitoring-9

best best digital rain gauge factory for hydrometeorological monitoring-10Product Principle

best best digital rain gauge factory for hydrometeorological monitoring-11

best best digital rain gauge factory for hydrometeorological monitoring-12 Material

best best digital rain gauge factory for hydrometeorological monitoring-13

best best digital rain gauge factory for hydrometeorological monitoring-14Leaf Filter

best best digital rain gauge factory for hydrometeorological monitoring-15

best best digital rain gauge factory for hydrometeorological monitoring-16Horizontal Adjustment

PRODUCT APPLICATION



rain water gauge The texture is light and thin, the essence is sufficient and full, the nature is mild and non-irritating, and the skin-friendly and comfortable feeling of application can make the skin moist, tender, smooth, firm and elastic after continuous use.
unique rain gauges Selected high-quality raw materials, processed and manufactured through multiple complicated processes, the structure is compact, the texture is thick, the quality is high, and it has great ornamental value and collection value.
rain water gauge The high-pressure pump and raw water pump selected are high-quality pumps of well-known brands, which are stable in use, low in noise, and can work continuously for a long time.
rain water gaugeSimple design, beautiful shape, small size, reliable quality, simple operation, easy installation, easy post-cleaning and maintenance.
best digital rain gauge The meat is firm, delicious and sweet, comprehensive in nutrition, high in quality, safe to eat, rich in essential amino acids and trace elements, and can be eaten with confidence.
This product has a high color rendering index and can illuminate the space with sufficient light, but without any glare. Fashion,high quality standards and diversification designs consistute of the white ceramic dinnerware sets
