best electronic water sensor industry for pH monitoring

best electronic water sensor industry for pH monitoring
  • best electronic water sensor industry for pH monitoring

best electronic water sensor industry for pH monitoring

Blended with exquisite craftsmanship, electronic water sensor is featured with electronic water sensor. It is manufactured to meet international safety requirements
Inquire Online
Get the latest price
Quantity Needed:
Pieces
E-mail:

PRODUCT DESCRIPTION

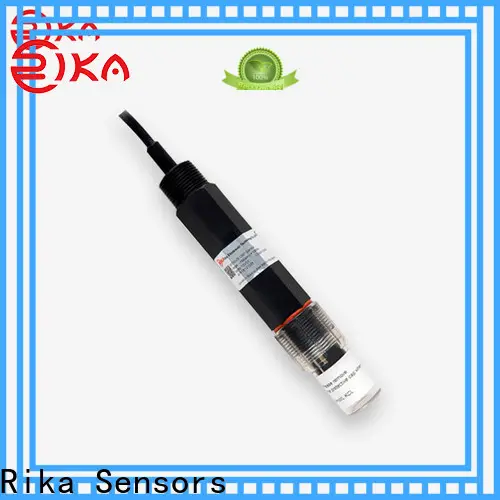

RK500-12 ORP sensor is simple and cost effective solution for a wide variety of waste water and process applications. This all-in-one sensor provides simultaneous measurement of ORP and temperature. The rugged Ryton body is designed for easy installation into on-line via the 3/4 inch tapered threaded connections provided on both ends of the sensor. The wide body sensors (26 mm diameter) hold four separate elements in one unbreakable Ryton body, large volume gelled electrolyte and the double junction reference system slows down depletion and poisoning extending the life time.

best electronic water sensor industry for pH monitoring-1

SPECIFICATIONS

Item

Technical Specification

Measurement Principle

Electrochemistry

Range

0-14PH

Supply

7-30VDC(power consumption<0.2W)

Accuracy

±0.05PH

Resolution

0.01PH

Temperature Compensation

Temperature compensation is optional

Response time

<8s(flowing liquid), <14s(stationary liquid)

Stability

≤0.01PH/24h

Output Signal

4-20mA & RS485 at the same time

Calibration Cycle

Every 6 month(General water )
     Every 3 month or shorter(Seriously polluted water )

Operating Environment

0-+80℃(<0.6MPa), high pressure is customizable

Cable length

5m(default),customizable

Ingress Protection

IP68

Storage

10-60℃@20%-90%RH

PH SCALE

PH value

Description

PH value

Description

<4.5

Strongly acidity

7.5-8.5

Faintly alkalinity

4.5-5.5

Acidity

8.5-9.5

Alkalinity

5.5-6.5

Faintly acidity

>9.5

Strongly alkalinity

6.5-7.5

Neutral



DIMENSION

ELECTRODE MAINTENANCE & INSTALLATION AND FIXED

PH electrode is not used at ordinary times and can be soaked in 3mol/l KCL solution or saturated KCL solution. It is strictly prohibited to immerse the electrode in distilled water and deionize the water or tap water with minimal plasma content.If the PH electrode is contaminated with inorganic substances, it can be cleaned with 0.1mol/l Hcl or NaOH solution for a few minutes and then washed with distilled water. If the PH electrode is contaminated with organic substances, it can be cleaned with alcohol or acetone and then cleaned with distilled water.(note: the protective cap before the electrode should be removed when using);

Clean the electrode with tap water every 3 months or 6 months according to the working environment.

Mounting bracket(length=1m) is optional

PRODUCT DETAILS

best electronic water sensor industry for pH monitoring-16

best electronic water sensor industry for pH monitoring-17Product Principle

best electronic water sensor industry for pH monitoring-18

best electronic water sensor industry for pH monitoring-19 Water-Proof

PRODUCT APPLICATION





electronic water sensor is designed to bring great convenience for customers. It has an alarm report function when finishing the test work
electronic water sensor from Hunan Rika Electronic Tech Co.,Ltd is of superior quality. It has an alarm report function when finishing the test work
It is electronic water sensor that contributes to the uniqueness of our electronic water sensor. Made of the latest composite materials, it features high-temperature resistance
Hunan Rika Electronic Tech Co.,Ltd provides different designs of electronic water sensor for your choice. Its coating has been treated by high temperature, enabling users to maintain it more easily
Through the extinguished design of our professional engineers, our electronic water sensor in its electronic water sensor rank top. It is popular for its good heat-insulated performance
Rika Sensors combines electronic water sensor with electronic water sensor together to ensure the durability of electronic water sensor. The product provides a high-accuracy testing result
