PRODUCT DESCRIPTION

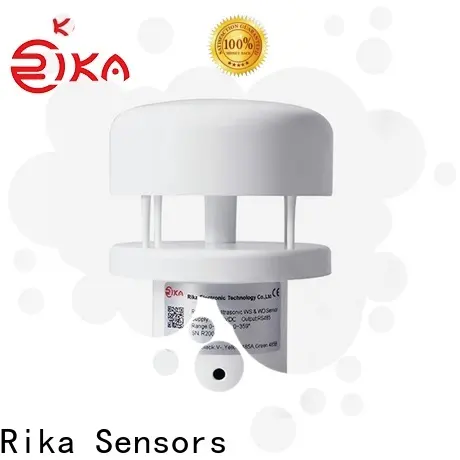

RK120-07 The wind speed and direction meter is a kind of measuring instrument which uses the time difference of ultrasonic wave in the air to measure the wind speed and direction. RK120-07 uses low-power chip with power consumption of only 0.2W, which is especially suitable for solar or battery powered environment with high power consumption requirements. Due to the adoption of new technology and new process, the structure is more compact and compact. Optional temperature and air pressure module.

best wind monitoring industry for industrial applications-1

best wind monitoring industry for industrial applications-2

Low starting threshold.

best wind monitoring industry for industrial applications-3

Overall carbon fiber material.

best wind monitoring industry for industrial applications-4

Strong corrosion resistant ability.

best wind monitoring industry for industrial applications-5

Light structure.

best wind monitoring industry for industrial applications-6

Various output signals optional.

best wind monitoring industry for industrial applications-7

Easy Installation.

SPECIFICATIONS

Item	Technical Specification
Power Supply	12-24VDC
Power consumption	1.7W
Output Signal	RS232/RS485(Modbus/NMEA-0183),SDI-12
Operating Temperature	-30℃-+60℃
Ingress Protection	IP65




Dimension	Ф82*108mm
Weight(unpacked)	0.8kg
Main material	ABS

Item	Technical Specification
	Range	Resolution	Accuracy
Wind Speed	0-40m/s	0.1m/s	±3%
Wind Direction	0-360°	1°	±3°




Starting Threshold	0.1m/s	0.1m/s	-
Extreme Wind Speed	60m/s

DIMENSION & MOUNTING

Step1:

Positioning: generally, RK120-07 is installed in a vertical installation pipe .ensure the measurement on the same level.

For indoor use, the sensor can be used at any where .Directional installation to measure wind speed on different planes.

Step2:

There is rotary adjustable mounting holes at the bottom of the senor,when mounting the sensor, to ensure the indicator on on the sensor comply with the geographic north.

Step3:

Installation: the installation pipe needs 3 equally spaced holes, tapping M5 screws, position7.5mm from the top of the pipe.

best wind monitoring industry for industrial applications-8

PRODUCT DETAILS

PRODUCT APPLICATION

best wind monitoring industry for industrial applications-12

Drilling Platform

best wind monitoring industry for industrial applications-13

Port

best wind monitoring industry for industrial applications-14

Automatic Weather Station

best wind monitoring industry for industrial applications-15

Scenic Spot

best wind monitoring industry for industrial applications-16

Ships

best wind monitoring industry for industrial applications-17

Tunnels
