PRODUCT DESCRIPTION

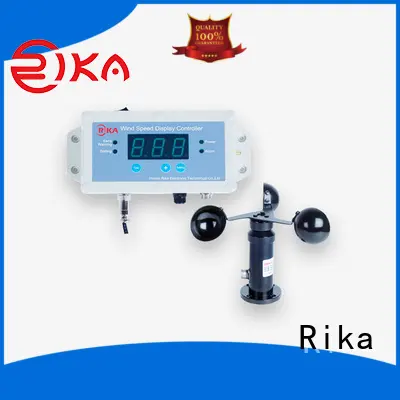

The RK150-01 wind speed display controller gives a visual indication of real-time wind speed , with a LED digital display. In its housing shell, build in a microprocessor with the function of high performance, low power consumption. The wind speed early warn value and alarm value can be set by buttons on the panel. When alarming, the signal output can be controlled by relay. RK150-01 is the companion to our RK100-01 wind speed sensor.

best wind speed detector industry for meteorology field-1

best wind speed detector industry for meteorology field-2

Low starting threshold.

best wind speed detector industry for meteorology field-3

Overall carbon fiber material.

best wind speed detector industry for meteorology field-4

Strong corrosion resistant ability.

best wind speed detector industry for meteorology field-5

Light structure.

best wind speed detector industry for meteorology field-6

Various output signals optional.

best wind speed detector industry for meteorology field-7

Easy Installation.

SPECIFICATIONS

Items	Specification
Range	0-60m/s	0-216km/h
Resolution(display)	0.1m/s	0.1km/h(<100km/h) 1km/h(≥100km/h)
Accuracy(sensor)	±1m/s
Alarm response time	<100mS
Type of alarm	Sound and light alarm
Contact capacity	5A@30VDC
Early warning	Any value within 1 m/s ~40 m/s, the early warning value must be lower than the alarm value	Any value within 1km/h ~99km/h, the early warning value must be lower than the alarm value
Alarm	Any value within 1 m/s~40 m/s	Any value within 1km/h ~144km/h
Operating Temperature	-30℃-+70℃
Power supply	AC100-240V/DC12V/DC24V
Power consumption	With wire:<3W(sensor & controller)
	Wireless:sensor: 0.25W,controller: 2.5W
Ingress Protection	Controller:IP54,wind speed sensor:IP65
Weight(unpacked)	Controller:315g,wind speed sensor:240g
Main material	Controller:ABS,wind speed sensor:Aluminum alloy & 304SS
Storage Condition	10℃-50℃@20%-90%RH

MOUNTING & WIRELESS(433MHZ) CONNECTION

Four ø4.5mm mounting pole

best wind speed detector industry for meteorology field-8

best wind speed detector industry for meteorology field-9

PRODUCT DETAILS

PRODUCT APPLICATION

best wind speed detector industry for meteorology field-14

best wind speed detector industry for meteorology field-15

best wind speed detector industry for meteorology field-16

best wind speed detector industry for meteorology field-17

f******m

Rika Sensors wind direction instrument has been tested in many aspects, such as user interface options, display options, additional output options, and environmental parameters. Its working temperature will be automatically controlled within a normal range

c******s

The design of Rika Sensors wind speed detector has been optimized. For example, the system components including geometric stress of the parts, the flatness of section, and connection mode have been improved by our designers. The product is the fruit of continuous innovation and improvement

w******h

The quality of Rika Sensors wind speed detector will be authenticated using professional inspection approaches, including visual inspection, non-destructive inspection, and metallographic examination. It can run at a very high speed

d******w

Rika Sensors wind direction instrument meets domestic standards for mechanical devices. It is manufactured in line with requirements for different aspects of GB/T and JB/T. The product is of a firm and unbreakable structure

b******g

The design of Rika Sensors wind speed detector is a combination of various technologies. Its design adopts automation, intelligence, sensing, computer science, and mechanical engineering technologies. The product can process items in a large quantity

s******e

Adopt strict quality control system to provide strong guarantee for product quality. It has gained wide acceptance and recognition from abroad
