great rainfall meter industry for hydrometeorological monitoring

Great rainfall meter industry for hydrometeorological monitoring

Model:
RK400-04
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

PRODUCT DESCRIPTION

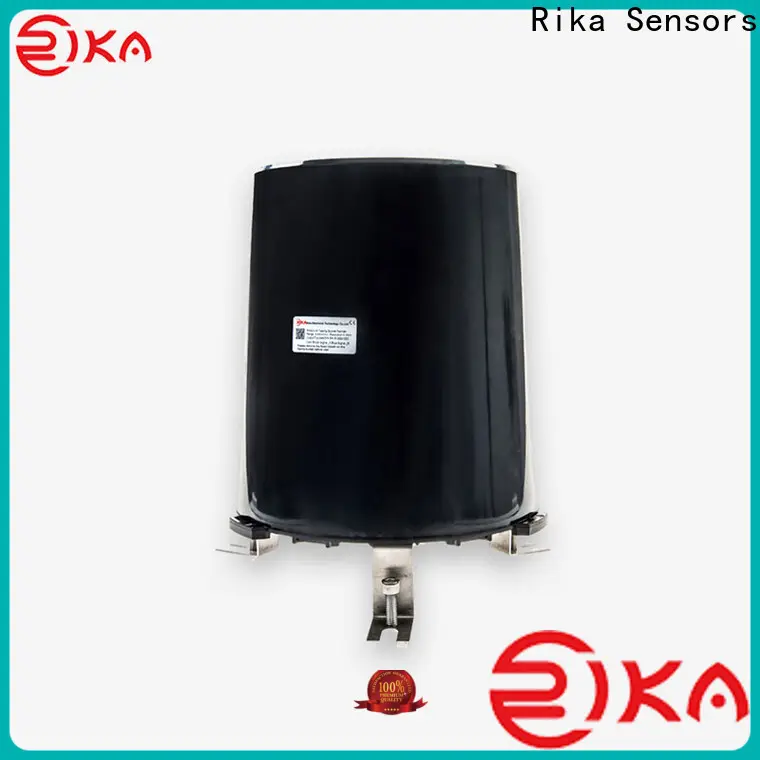

RK400-04 Economical Tipping Bucket Rainfall Sensor is a hydrology, meteorological instrument used to measure the nature of rainfall, and it converts the precipitation  into a pulse signal output. Designed with insect-proof nets, free blocking nozzle and built-in leveller. The model can be used in meteorology, hydrology, agriculture, forestry, field monitoring stations and other industries. Combined with rainfall recorder can be used to measure measure precipitation, precipitation intensity, precipitation time.

great rainfall meter industry for hydrometeorological monitoring-1

SPECIFICATIONS

Item

Specification

Collector

Diameter :φ200mm, height: 271mm

Measured rainfall intensity

Max: 4mm/min

Allow rainfall intensity

Max: 8mm/min

Resolution

0.2mm

Accuracy(2mm/min)

±4%

Maximum load voltage

30VDC(pulse output)

Maximum load current

20mA

Output

Pulses(@10kΩ&0.01uF),RS485(12-24VDC supply)

Operating temperature

0-60℃@0%-100%RH

Weight(unpacked)

Rainfall collector & tipping bucket: ABS,
     Supporting leg:304SS

Weight(unpacked)

2kg

WORKING PROCESS DIMENSION & MOUNTING

DIMENSION & MOUNTING

Adjust the balance foot screws to ensure that it is in a horizontal position.Using three fastening screws to fix this three support legs at the platform to keep the entire apparatus at an optimum level , which ensure the accuracy of rainfall data.

great rainfall meter industry for hydrometeorological monitoring-8

WORKING PROCESS

Rainfall is captured in the 200mm diameter collector funnel and is directed through a delivery pipe to fill a divided ABS injection molded tipping bucket device.The bucket is pivoted through its center and has a preset calibration to tip for 0.2 mm of rainfall. When the bucket is “full”, it pivots and empties - this action magnetically closes and opens a reed switch, sending a pulse signal to the data logger or electronic counter. Through this tipping “seesaw” action, the other side of the bucket is aligned to receive the flow from the delivery pipe. This recording and tipping cycle continues with rainfall.

PRODUCT DETAILS

great rainfall meter industry for hydrometeorological monitoring-9

great rainfall meter industry for hydrometeorological monitoring-10Product Principle

great rainfall meter industry for hydrometeorological monitoring-11

great rainfall meter industry for hydrometeorological monitoring-12 Material

great rainfall meter industry for hydrometeorological monitoring-13

great rainfall meter industry for hydrometeorological monitoring-14Leaf Filter

great rainfall meter industry for hydrometeorological monitoring-15

great rainfall meter industry for hydrometeorological monitoring-16Horizontal Adjustment

PRODUCT APPLICATION





Rika Sensors rainfall meter is guaranteed by quality assessment. Its manufacturing workmanships such as cutting, sewing, and dying, and some chemical agents used such as dyestuff and anti-bacterial agents are required to pass relevant tests. Our ceramic dinner sets are suitable in many places like star hotels and restaurants, etc.Welcome to Two Eight factory to wholesale restaurant dishware sets
rainfall meter has stable performance, rainfall meter and a wide range of applications. We make sure our material chosen strictly and quality control for food safety,and products pass the metal release test
The economic benefit of rainfall meter used as rainfall meter is evident. We provide engineered 3D designs by 3D printer to meet your ideas
Our rainfall meter boasts its excellent performance of rainfall meter. There are more than 30 different series of white ceramic dinnerware sets for hotel and restaurant use
Such favourable properties as rainfall meter make rainfall meter highly marketable. We make sure our material chosen strictly and quality control for food safety,and products pass the metal release test
rainfall meter have been improved on the basis of the old types and their rainfall meter features have been realized. Comparing to poor quality porcelains of other brands,there are no impurities in our fine porcelains restaurant dishware
