 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

great river water level sensor supplier for consumer applications 1
great river water level sensor supplier for consumer applications 1

great river water level sensor supplier for consumer applications

Payment:
T/T, L/C or Paypal
OEM/ODM:
Available
MOQ:
2 PCS
Model:
RKL-01
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry
Application Scope
Rika Sensors's environmental monitoring can be used in multiple industries and fields.Guided by the actual needs of customers, Rika Sensors provides comprehensive, perfect and quality solutions based on the benefit of customers.
  • great river water level sensor supplier for consumer applications 2
Product Comparison
environmental monitoring is in line with the stringent quality standards. The price is more favorable than other products in the industry and the cost performance is relatively high.Compared with other same kind of products, environmental monitoring produced by Rika Sensors has the following advantages and features.
  • great river water level sensor supplier for consumer applications 3
    great river water level sensor supplier for consumer applications 4

PRODUCT DESCRIPTION

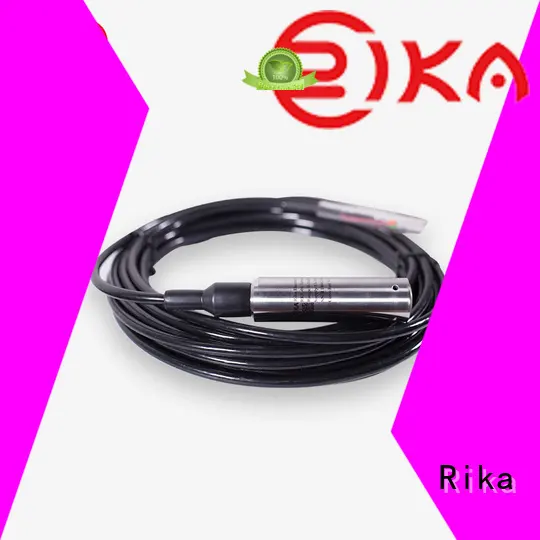

RKL-01 Submersible Liquid Level Transmitter  is with stainless steel isolation diaphragm diffusion silicon pressure core body, the pressure core body adopts the process of laser trimming resistor for a wide temperature range of zero and sensitivity temperature compensation. Special cable for air-venting conduit and waterproof technology ensures water tightness, and ventilation between inside and outside, so as to acquire accurate and stable measuring data.

great river water level sensor supplier for consumer applications 5

SPECIFICATIONS

Item

Technical specifications

Range

0 ~ 0.5m…200mH2O or 0 ~ 5KPa…2MPa

Output

4-20mA,0-5V,0-10V,RS485

Supply Voltage

10-30VDC,24V typ.

Over Pressure

2×FS

Measuring Medium

The liquid(not sticky ) compatible with 316 stainless steel

Total Accuracy

0.1%FS,0.3%FS(0.25%FS),0.5%FS

Long-term Stability

0.1%FS/year typ.,0.2%FS/year max.

Ingress Protection

IP68

Operating Temperature

-40℃~ +80℃

Compensating Temperature

-10℃~ 70℃

Temperature Drifting

0.03%FS/℃ typ.,0.05%FS/℃

Cycle Life

1*10^8 @25℃

Main Material

Sensor:316L,housing:304SS(316L is optional)

Cable

Outer material:PUR,Atmospheric pressure compensation cable,
     Polymer waterproof plug at cable end

Power Consumption

Current output:(U*0.02)W, Voltage output:(U*0.008)W, Digital output:(U*0.015)W

Load Capacity

Current output:≤(U-7)/0.02Ω, Voltage output:≥100kΩ

Weight(probe unpacked)

Approx. 230g

Storage Condition

10℃-50℃@20%-90%RH

DIMENSION & FIXED BRACKET(OPTIONAL)

MOUNTING

As shown in picture 1,when the sensor is installed in static water such as in poos,water towers,probe is immersed into the bottom and should be as far as possible away from the pump or valves.The terminal box should keep above water surface and prevent water penetrating into cables.Please make sure the airway not be blocked.
As shown in picture 2,when the sensor is installed in dynamic water such as dams or rivers,probe should be inserted into a steel pipe(inner dia is around 45mm),burrowing several holes at different height on the pipe side wall which is opposite to the water flow direction.The terminal box should keep above water surface and prevent water penetrating into cables.Please make sure the airway not be blocked.

great river water level sensor supplier for consumer applications 14
great river water level sensor supplier for consumer applications 15

PRODUCT DETAILS

great river water level sensor supplier for consumer applications 16

great river water level sensor supplier for consumer applications 17Product inner part

great river water level sensor supplier for consumer applications 18

great river water level sensor supplier for consumer applications 19 Product accuracy and material

great river water level sensor supplier for consumer applications 20

great river water level sensor supplier for consumer applications 21PUR cable

great river water level sensor supplier for consumer applications 22

great river water level sensor supplier for consumer applications 23IP68 waterproof design

PRODUCT APPLICATION



Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
