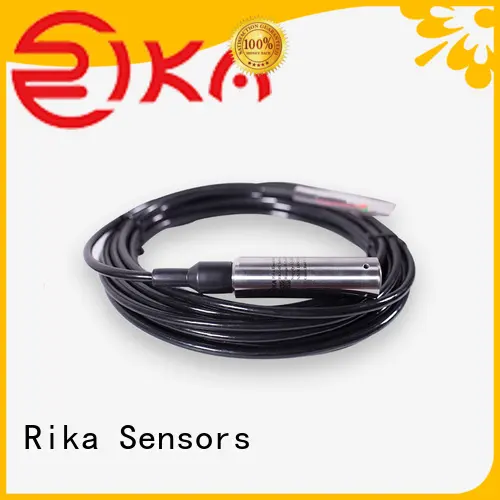

Great water level transducer industry for industrial applications

Range

0 ~ 0.5m…200mH2O or 0 ~ 5KPa…2MPa

Output

4-20mA,0-5V,0-10V,RS485

Supply Voltage

10-30VDC,24V typ.

Over Pressure

2×FS

Measuring Medium

The liquid(not sticky ) compatible with 316 stainless steel

Total Accuracy

0.1%FS,0.3%FS(0.25%FS),0.5%FS

Long-term Stability

0.1%FS/year typ.,0.2%FS/year max.

Ingress Protection

IP68

Operating Temperature

-40℃~ +80℃

Compensating Temperature

-10℃~ 70℃

Temperature Drifting

0.03%FS/℃ typ.,0.05%FS/℃

Cycle Life

1*10^8 @25℃

Main Material

Sensor:316L,housing:304SS(316L is optional)

Cable

Outer material：PUR,Atmospheric pressure compensation cable,
     Polymer waterproof plug at cable end

Power Consumption

Current output:(U*0.02)W, Voltage output:(U*0.008)W, Digital output:(U*0.015)W

Load Capacity

Current output:≤(U-7)/0.02Ω, Voltage output:≥100kΩ

Weight(probe unpacked)

Approx. 230g

Storage Condition

10℃-50℃@20%-90%RH
