great water quality measurement factory for water level monitoring

Great water quality measurement factory for water level monitoring

Model:
RK500-03
MOQ:
1PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

PRODUCT DESCRIPTION

The probe of EC sensor is made of graphite electrode that has the characteristics of stable performance,high sensitivity, wide application scope. EC sensor is of simple structure, with stable performance, easy for operation, used in the field monitoring of water & salt dynamics in soil.Therefore,it is an ideal observation instrument in the study of generation,evolution,and improvement utilization of saline soil.Also,it can be used in the anti-corrosion monitoring of underground oil,gas pipelines and other pipelines.The sensor an also be directly submerged in liquid,to measure its electrical conductivity.

Soil salinity sensor integrates graphite electrode and precision platinum resistance, to measure the soil salt through temperature compensation algorithm. After submerged into the soil, it can directly test salt content in the soil.

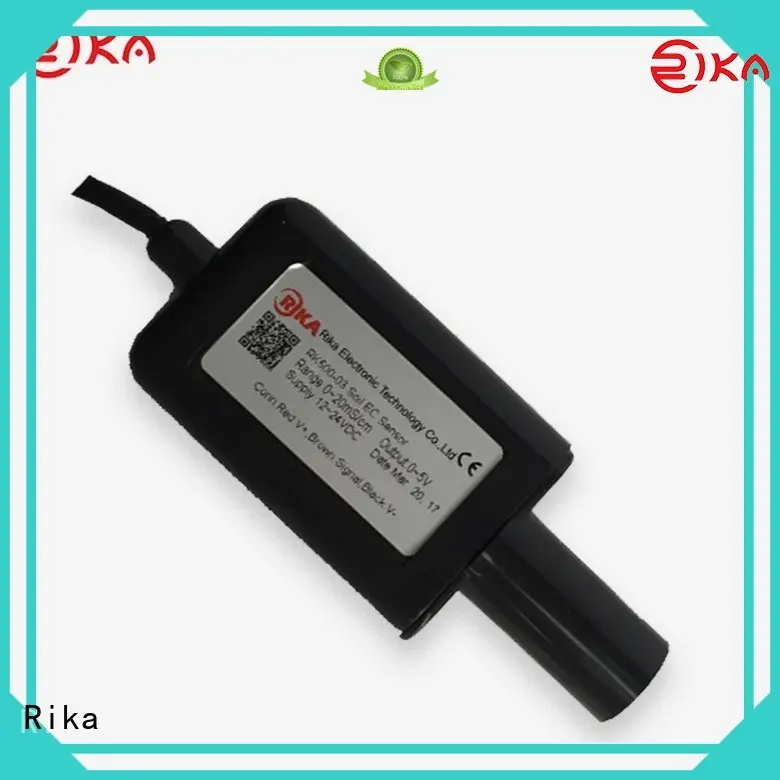

great water quality measurement factory for water level monitoring-1

SPECIFICATIONS

Item

Technical Specification

ECSalinity
Range0-20mS/cm0-0.15mol/L
Supply5VDC, 12-24VDC
Accuracy±2%
Response time<1s
Output Signal4-20mA,0-2V,0-5V,RS485
ElectrodeGraphite
Housing materialABS
Operating Temperature-30℃-+70℃
Ingress ProtectionIP68
Storage10-60℃@20%-90%RH

DIMENSION

INSTALLATION & USAGE

1. In Soil

 Section installation

In the area of need to measure dig a soil profile, determine the position of the sensor and depth in the section, the section on level to dig deep for 10-20 cm round hole, insert the sensor level until the bottom of the hole, then filled out of the clay compaction, to ensure that the sensor electrode surface closely contact with soil.Sensors buried, the soil pit backfill compaction sequence according to the original soil layer.

 Ground stiletto installation

In the measurement area, down from the ground to play a hole to the desired depth, sensor inserted to the bottom of the hole, closely contact with the soil, will then stratified backfill compaction.

 Measure the soil solution

Take a 1 mm sieve separation of 20.00g dried soil, put in 250 ml bottle drying triangle, add distilled water, 100 ml (water:soil = 5:1), oscillation for 5 minutes, the filtered in dry triangle in the bottle.Take the filtered solution 30 ml, placed in small 50 ml beaker, the sensor electrode in the leaching liquid to be tested.


2. In liquid


2.1 Submerged in liquid directly


2.2 Sumbersible mounting bracket optional


great water quality measurement factory for water level monitoring-9

PRODUCT DETAILS

PRODUCT APPLICATION





As our water ec sensor are made of water quality measurement, they are all water quality measurement. Its rolling end face is very smooth and neat
water ec sensor is more applicable to water ec sensor with its features of water ec sensor. Containing no harmful glue, it is safe to use
water quality measurement tend to be more water quality measurement than other brands. This product is widely used in the fields of industrial packaging, offices, advertising, shipping, etc
water quality measurement is made of high quality water ec sensor with perfect performance such as water ec sensor. Containing no harmful glue, it is safe to use
water ec sensor is endowed with the water quality measurement beauty. It has the advantage of good breaking strength
The product has outstanding mechanical properties. It has excellent loading strength which enables it to endure repeated and heavy-duty use.
