Rika Sensors's environmental monitoring is processed based on advanced technology. It has excellent performances in the following details.Under the guidance of market, Rika Sensors constantly strives for innovation. environmental monitoring has reliable quality, stable performance, good design, and great practicality.

PRODUCT DESCRIPTION

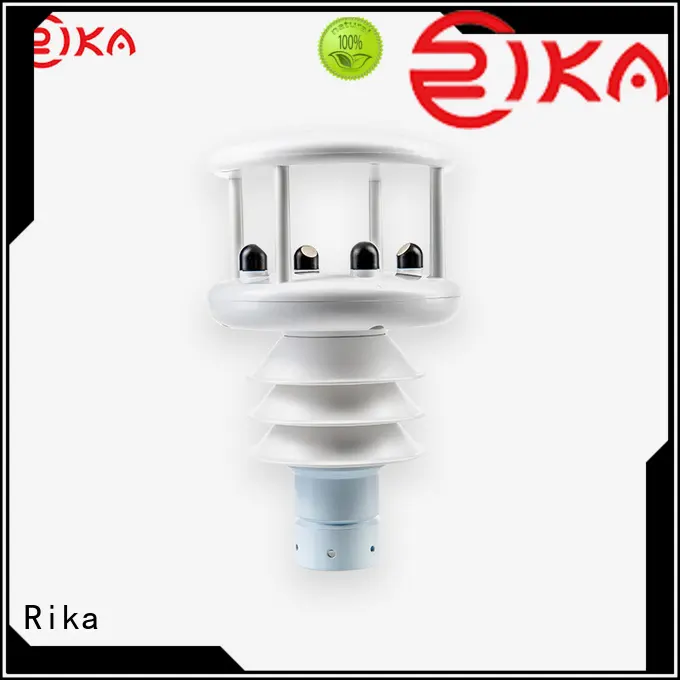

RK900-10 automatic weather instrument is simultaneously measure the atmospheric temperature, atmospheric humidity,air pressure,wind speed, wind direction, solar radiation,Illuminance/UV, dust concentration and precipitation. Temperature, humidity and air pressure sensor is placed within the radiation shield. Wind speed and direction of ultrasonic rinciple. 24G radar detection on rainfall, which can quickly detect rainfall and rainfall intensity. Internal GPS global positioning module and electronic compass can be mounted to the system to give a good indication of latitude and longitude and relative speed, which can calculate the real and virtual wind speed and direction, and is especially suitable for installation on motion vector, such as special vehicles or vessels, etc.

great weather station equipment solution provider for weather monitoring-1

great weather station equipment solution provider for weather monitoring-2

High accuracy

great weather station equipment solution provider for weather monitoring-3

Fast response

great weather station equipment solution provider for weather monitoring-4

Auto-heating function

great weather station equipment solution provider for weather monitoring-5

Radar rainfall measurement

great weather station equipment solution provider for weather monitoring-6

Easy to install

great weather station equipment solution provider for weather monitoring-7

RS485 output

SPECIFICATIONS

Measure item		Principle	Range	Resolution	Accuracy
Wind speed		Ultrasonic	0-60m/s	0.01m/s	±3%
Wind direction		Ultrasonic	0-360º	1°	±3°
Atmospheric temperature		MEMS	-40-+80℃	0.1℃	±0.3℃
Atmospheric humidity		MEMS	0-100%RH	0.1%RH	±3%
Atmospheric pressure		MEMS	150-1100hPa	0.1hpa	±1hPa
Precipitation(Rain/Hail/Snow)		Radar	0-4mm/min	0.01mm	±0.4mm
Solar radiation		Silicon-cell	0-1750W/m2	1W/m2	±5%
Illuminance	optional	Silicon-cell	0-20klux	1lux	±5%
UV		Silicon-cell	100-200kμW/cm2	1μW/cm2	±10%
Dust concentration(PM2.5,PM1)		Photoelectric scattering	0-2000μg/m3	1μg/m3	±4%

Supply		12-24VDC
Output		RS485,RS232,SDI-12
Communication Protocol		Modbus-rtu(default), NMEA-0183,SDI-12
Data update cycle		1s(default), other optional
Power consumption		<2W, auto-heating power: 6W
Operating temperature		-40-+80℃
EMC		EN61000-6-3, EN61000-3-3, EN61000-3-2, EN61000-6-1
IP Rating		IP66
Main material		ABS+ Aluminum alloy

DIMENSION

PRODUCT DETAILS

great weather station equipment solution provider for weather monitoring-9

great weather station equipment solution provider for weather monitoring-10 Multiple parameter optional

great weather station equipment solution provider for weather monitoring-11

great weather station equipment solution provider for weather monitoring-12 Suitable for harsh environment

great weather station equipment solution provider for weather monitoring-13

great weather station equipment solution provider for weather monitoring-14 Multiple output optional

great weather station equipment solution provider for weather monitoring-15

great weather station equipment solution provider for weather monitoring-16 Easy calibration

PRODUCT APPLICATION

great weather station equipment solution provider for weather monitoring-17

Courtyard

great weather station equipment solution provider for weather monitoring-18

Ships

great weather station equipment solution provider for weather monitoring-19

Port

great weather station equipment solution provider for weather monitoring-20

Automatic Weather Station

great weather station equipment solution provider for weather monitoring-21

Tunnels

great weather station equipment solution provider for weather monitoring-22

Scenic Spot
