great wind speed and direction indicator manufacturer for meteorology field

Great wind speed and direction indicator manufacturer for meteorology field

Model:
RK120-07
MOQ:
2PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

PRODUCT DESCRIPTION

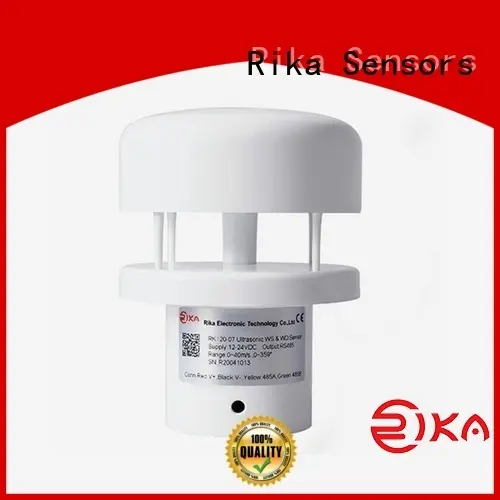

RK120-07 The wind speed and direction meter is a kind of measuring instrument which uses the time difference of ultrasonic wave in the air to measure the wind speed and direction. RK120-07 uses low-power chip with power consumption of only 0.2W, which is especially suitable for solar or battery powered environment with high power consumption requirements. Due to the adoption of new technology and new process, the structure is more compact and compact. Optional temperature and air pressure module.

    great wind speed and direction indicator manufacturer for meteorology field-1

    SPECIFICATIONS

    Item

    Technical Specification

    Power Supply

    12-24VDC

    Power consumption

    1.7W

    Output Signal

    RS232/RS485(Modbus/NMEA-0183),SDI-12

    Operating Temperature

    -30℃-+60℃

    Ingress Protection

    IP65

    Dimension

    Ф82*108mm

    Weight(unpacked)

    0.8kg

    Main material

    ABS


    Item

    Technical Specification

    Range

    Resolution

    Accuracy

    Wind Speed

    0-40m/s

    0.1m/s

    ±3%

    Wind Direction

    0-360°

    ±3°

    Starting Threshold0.1m/s
    0.1m/s        -
    Extreme Wind Speed60m/s


    DIMENSION & MOUNTING

    Step1:

    Positioning: generally, RK120-07 is installed in a vertical installation pipe .ensure the measurement on the same level.

    For indoor use, the sensor can be used at any where .Directional installation to measure wind speed on different planes.

    Step2:

    There is rotary adjustable mounting holes at the bottom of the senor,when mounting the sensor, to ensure the indicator on on the sensor comply with the geographic north.

    Step3:

    Installation: the installation pipe needs 3 equally spaced holes, tapping M5 screws, position7.5mm from the top of the pipe.


    great wind speed and direction indicator manufacturer for meteorology field-8


    PRODUCT DETAILS

    PRODUCT APPLICATION





    wind speed and direction indicator follows the design idea of 'speciality and meticulousness'. Its heating panels are made with ultra-fine carbon fiber, which ensures maximum safety
    Rika Sensors wind speed and direction indicator is precisely designed and manufactured based on customer specific requirements. The green, blue, or red LED light clearly shows the selected setting for easy-to-understand use
    The materials of Rika Sensors wind speed and direction indicator are sourced from suppliers that enforce strict social standards in their factories. This product is available in various sizes
    Defect-free Rika Sensors wind speed and direction indicator adopts high quality raw materials. This product simply requires a short charging time
    The production process of Rika Sensors wind speed and direction indicator follows the general method in the industry. This product is the perfect blend of fashion and utility
    The product quality has been strictly controlled by professional QC team. It is perfectly suitable for hiking, rock climbing, cliff rappelling, and camping in the wild
