PRODUCT DESCRIPTION

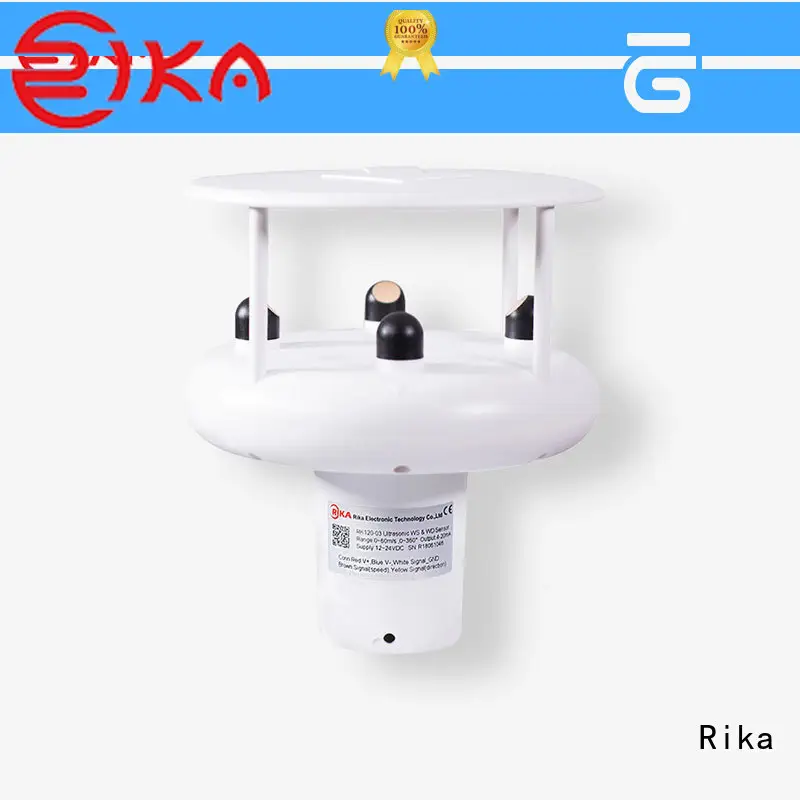

rk120-03 Economical Ultrasonic Wind Sensor is a fully digital detector, high-precision sensors, integrated by the ultrasonic wind speed and direction sensors. it can accurately and quickly detect the wind speed, wind direction; built-in signal processing unit can output a corresponding signal in response to user needs, with the structure lightweight and compact, no moving parts, high-strength structural design can be accurately detected in the harsh climatic conditions,made the accurate and stable elements, low maintenance, an open communications protocol and so on.It can be widely used in meteorology, oceanography, environment, airports, ports, laboratories, industry and agriculture, and transportation and other fields.

great wind speed detector factory for meteorology field 5

Low starting threshold.

Overall carbon fiber material.

Strong corrosion resistant ability.

Light structure.

Various output signals optional.

Easy Installation.

SPECIFICATIONS

Item	Technical Specification
Power Supply	12-24VDC
Power consumption	<1W(Heating not activated); <3W(Heating activated)
Output Signal	RS232/RS485(Modbus/NMEA-0183),4-20mA(only for wind speed & direction) optional
Operating Temperature	-30℃-+70℃
Ingress Protection	IP66
Heating power	3W max.
Electronic compass	optional
Atmospheric pressure	optional
Dimension	Ф144*148mm
Weight(unpacked)	0.8kg
Main material	ASA

Item	Technical Specification
Item	Wind speed	Wind direction	Atmospheric pressure
Range	0-45m/s,0-60m/s	0-360°	150-1100hPa
Resolution	0.01m/s	1°	0.1hPa
Accuracy	≤10m/s：±0.2m/s ＞10m/s：＜±2% the current value	±3°	±1 hPa
Starting Threshold	0.1m/s	0.1m/s
Extreme Wind Speed	60m/s

DIMENSION & MOUNTING

There is rotary adjustable mounting holes at the bottom of the senor, when mounting the sensor, to ensure the indicator on on the sensor comply with the geographic north.

great wind speed detector factory for meteorology field 12

great wind speed detector factory for meteorology field 13

PRODUCT DETAILS

great wind speed detector factory for meteorology field 14

great wind speed detector factory for meteorology field 15 Ultrasonic Pavilion Reflection Principle

great wind speed detector factory for meteorology field 16

great wind speed detector factory for meteorology field 17 Suitable For Harsh Environment

great wind speed detector factory for meteorology field 18

great wind speed detector factory for meteorology field 19 Auto-Locate The Installation Position

great wind speed detector factory for meteorology field 20

great wind speed detector factory for meteorology field 21 Connectors and installation

PRODUCT APPLICATION

Automatic Weather Station
