Product details of the water ph probe
Product Description
Hunan Rika Electronic Tech Co.,Ltd is willing to purchase high quality raw material rather than poor one in order to guarantee quality for water ph probe. Many scientific and strict inspection means have been applied to ensure the premium quality of the product. Hunan Rika Electronic Tech Co.,Ltd is able to learn more about customers' problem from multiple perspectives.
PRODUCT DESCRIPTION

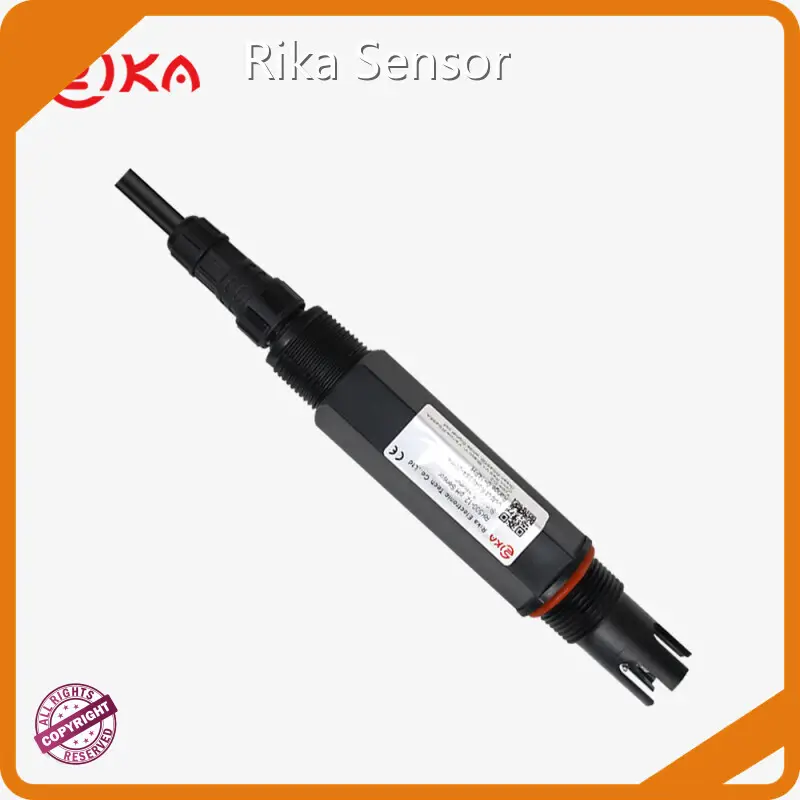

The RK500-12-D1 represents a sophisticated solution in pH monitoring technology, engineered to meet the rigorous demands of industrial, municipal, and environmental water quality management. Designed for reliability and precision in diverse aqueous environments—from conventional water systems to natural water bodies like rivers—this sensor redefines durability and performance through its advanced material composition and intelligent design.
Crafted with a robust Glass+PC+ABS housing, the RK500-12-D1 ensures long-term stability in challenging conditions, while its IP68 ingress protection rating guarantees complete immunity to dust and submersion in depths up to its operational limits. Operating seamlessly across a 0–60°C temperature range and handling up to 0.6MPa working pressure, it excels in both static and dynamic fluid environments, delivering a rapid 10-second response time (achieving 98% measurement stability in flowing liquids).
SPECIFICATIONS
Technical Parameter | |
Type | D1 |
Material | Glass+PC+ABS |
Operation temperature | 0-60℃ |
Working pressure | 0.6MPa |
Response time | 10 seconds (98% flowing liquid) |
Electrical connection | M16 waterproof connector |
Application | Conventional water, river water, etc |
Thread | Upper: NPT3/4 thread,Lower: NPT3/4 thread |
Range | 0-14pH |
Resolution | 0.01pH |
Accuracy | 0.01pH |
Temperature compensation | Thermal resistance |
Power supply | 7-30VDC(< 0.15W) |
Output | RS485 & 4-20mA |
Dimensions | Φ31.0 x 180.0 |
Ingress protection | IP68 |
pH Scale
pH value | Description |
<4.5 | Strongly acidity |
4.5-5.5 | Acidity |
5.5-6.5 | Faintly acidity |
6.5-7.5 | Neutral |
7.5-8.5 | Faintly alkalinity |
8.5-9.5 | Alkalinity |
>9.5 | Strongly alkalinity |
Electrode Maintenance
When the probe is not in use, it can be soaked in 3mol/l KCL solution or saturated KCL solution. It is strictly prohibited to immerse the electrode in distilled water, deionized water, or tap water with very low ion content. If the pH electrode is contaminated with inorganic substances, it can be cleaned with 0.1mol/l HCl or sodium hydroxide solution for a few minutes, and then rinsed with distilled water.If the pH electrode is contaminated with organic matter, it can be cleaned with alcohol or acetone, and then rinsed with distilled water. (Note: When using, remove the protective cap in front of the electrode)
According to the work environment, clean the electrodes with tap water every 3 or 6 months.
Installation & Fixed
Installation bracket (Iength=1m) NPT3/4 installation thread is optional
