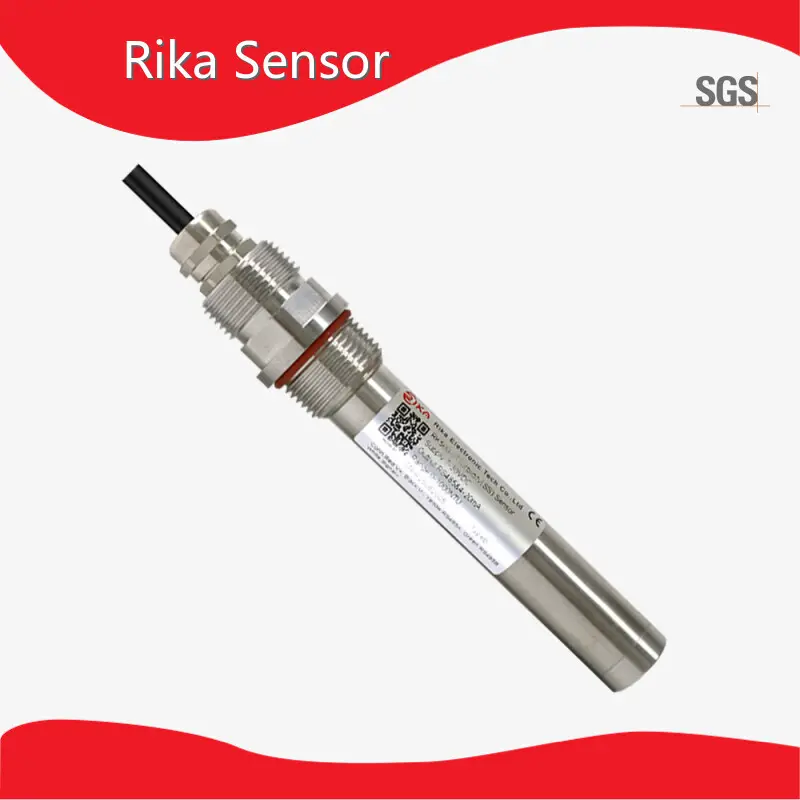

RK500-07 Water Turbidity Monitoring Sensor

For Aquaculture Turbidity Probe by Rika Sensor 3

For Aquaculture Turbidity Probe by Rika Sensor

Payment:

T/T, L/C or Paypal

OEM/ODM:

Available

Model:

RK500-07 Type-B

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

Product details of the turbidity probe

Quick Overview

Designed by experienced staff, turbidity probe has always been ranking top in the industry. Our professional testing people conduct strict testing for its quality. The product is widely sought after in the industry and has served many global customers.

Product Description

Compared with the turbidity probe of our peers, the turbidity probe we produce is provided with the following advantages.

PDF Download

PRODUCT DESCRIPTION

The RK500-7-B Turbidity Sensor represents a cutting-edge solution in water quality monitoring, engineered to deliver exceptional performance in demanding environments such as mariculture, strongly corrosive wastewater systems, and complex industrial scenarios. Combining premium materials, precise engineering, and industry-leading durability, this sensor is designed to meet the rigorous needs of professionals seeking reliability, accuracy, and versatility in turbidity measurement.

Crafted with a titanium alloy main body, the RK500-7-B ensures outstanding corrosion resistance, making it ideal for aggressive chemical environments while maintaining structural integrity in harsh conditions. Its robust design features NPT3/4 threaded connections on both upper and lower ends, facilitating easy installation and integration into existing systems.

Key technical specifications highlight its superior capabilities:

Accuracy: ±1% FS for dependable, repeatable measurements.

Resolution: 0.01 NTU (≤10 NTU) and 0.1 NTU (>10 NTU), delivering fine-grained data even in low-turbidity applications.

Low Power Consumption: <0.2W, optimizing energy efficiency for battery-powered or remote deployments.

Wide Operating Range: Functions reliably across 0–60°C with a measurement range of 0–10 NTU, 0–100 NTU, 0–1,000 NTU, or 0–4,000 NTU, adaptable to diverse water quality monitoring needs.

Dual Outputs: Simultaneous 4–20mA analog and RS485 digital signals, ensuring seamless compatibility with PLCs, data loggers, and control systems.

Enhanced Durability: Features an IP68 ingress protection rating, resisting dust and submersion up to specified depths, along with 0.8 MPa pressure resistance and a storage temperature range of 10–60°C (20–90% RH), ensuring longevity in extreme conditions.

For Aquaculture Turbidity Probe by Rika Sensor 10

Fast response.

For Aquaculture Turbidity Probe by Rika Sensor 11

Excellent stability.

For Aquaculture Turbidity Probe by Rika Sensor 12

Widely used.

For Aquaculture Turbidity Probe by Rika Sensor 13

High sensitivity.

For Aquaculture Turbidity Probe by Rika Sensor 14

High precision.

For Aquaculture Turbidity Probe by Rika Sensor 15

Simple operation.

SPECIFICATIONS

Technical Parameter
Type	RK500-07-B
Application	Mariculture, strongly corrosive sewage, complex scenes etc
Self-cleaning	/
Main material	titanium alloy
Screw thread	Upper: NPT3/4, Lower: NPT3/4
Accuracy	±1%FS
Resolution	0.01NTU(≤10NTU) , 0.1NTU(>10NTU)
Power consumption	<0.2W
Operating temperature	0-+60℃
Range	0-10NTU ,0-100NTU,0-1000NTU,0-4000NTU
Supply	7-30VDC
Output	4-20mA&RS485 at the same time
Response time	1S
Pressure resistance	0.8Mpa
Ingress protection	IP68
Storage	10-60℃@20%-90%RH
Cable length	5m default

DIMENSION

Unit:mm

Installation & Usage

Put directly into the liquid
Adopt submersible mounting bracket (show in the below figure)

For Aquaculture Turbidity Probe by Rika Sensor 17

Mounting bracket (length=1m)

If the pipeline is made of reflective material, such as stainless

steel, aligning the connection line of the two small holes with the

direction of the pipeline will significantly improve accuracy

For Aquaculture Turbidity Probe by Rika Sensor 18

For Aquaculture Turbidity Probe by Rika Sensor 19

Electrode maintenance:Keep the sensor's optical surface clean,and wipe it gently if necessary.Caution:Avoid strong vibrations to prevent damage to the front transparent glass.Do not scrapeit with hard objects.

PRODUCT DETAILS

Optical measurement principle of turbidity sensor

PRODUCT APPLICATION

For Aquaculture Turbidity Probe by Rika Sensor 22

Biodegradation

For Aquaculture Turbidity Probe by Rika Sensor 23

Agricultural Irrigation

For Aquaculture Turbidity Probe by Rika Sensor 24

Chemical

For Aquaculture Turbidity Probe by Rika Sensor 25

Reservoir

For Aquaculture Turbidity Probe by Rika Sensor 26

Water Treatment

For Aquaculture Turbidity Probe by Rika Sensor 27

River

For Aquaculture Turbidity Probe by Rika Sensor 28

Well

For Aquaculture Turbidity Probe by Rika Sensor 29

Urban Sewage
