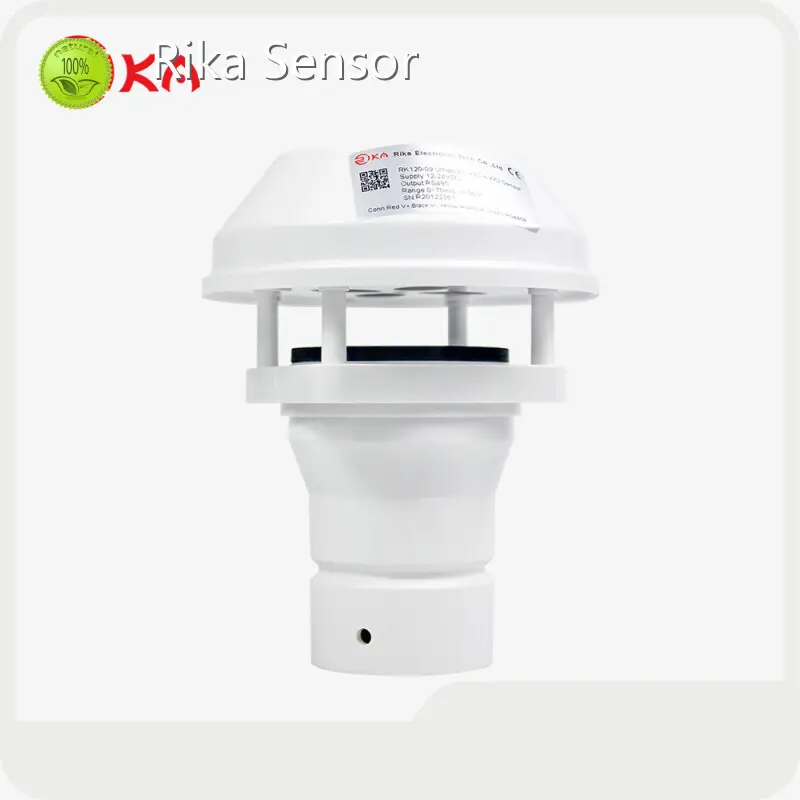

For Fluid Dynamics Experiments Ultrasonic Anemometer Price by Rika Sensor
Product details of the ultrasonic anemometer price
Product Description
Rika Sensor ultrasonic anemometer price is designed by experienced professionals who make use of superior quality raw materials. The product's performance reliability sets an example in the industry. ultrasonic anemometer price has passed tests of SGS, FDA, CE and etc.
PRODUCT DESCRIPTION
RK120-09 wind speed and direction meter is a measuring instrument which uses the time difference ofultrasonic wave in the air to measure the wind speed and direction. It uses a low-power chip with powerconsumption of only 0.12W, which is especially suitable for solar or battery powered environment withhigh power consumption requirements. Due to the adoption of advanced technology and new process,the structure is more compact.
SPECIFICATIONS
Item | Technical Specification | ||
Wind speed | Wind direction | ||
Range | 0-70m/s | 0-359° | |
Resolution | 0.1m/s | 1° | |
Accuracy | ±3% | ±3° | |
Starting threshold | 0.5m/s | ||
Power supply | 5V,12-24VDC | ||
Power consumption | 0.12W | ||
Output signal | RS485(Modbus-RTU/NMEA-0183)/RS232/SDI-124-20mA/0-5V(only for wind speed & direction optional) | ||
Extreme wind speed | 80m/s | ||
Baud rate | 4800-19200 | ||
Data update cycle | 1s | ||
Operating temperature | -20℃-+50℃ | ||
Storage temperature | -50℃-+80℃ | ||
Working humidity | 0 - 100% | ||
Ingress protection | IP65 | ||
Atmosphericpressure(optional) | Range | 300-1100hPa | |
Resolution | 0.1hPa | ||
Accuracy | ±1hPa | ||
Electronic compass | optional | ||
GPS | optional | ||
Dimension | Φ104×136mm | ||
Weight(unpacked) | 0.28kg | ||
Main materia | ASA | ||
