Low Cost Ultrasonic Anemometer Ultrasonic Wind Sensor Wholesale - Rika Sensor
Product details of the low cost ultrasonic anemometer
Product Overview
The raw material made for low cost ultrasonic anemometer is exported abroad. This product is methodically examined to ensure the quality and durability. The low cost ultrasonic anemometer produced by our company is widely recognized by customers and widely used in field. The product has gained great popularity in the market and enjoys a vast market application.
Product Information
Compared with other products in the same category, Rika Sensor's low cost ultrasonic anemometer has the following advantages.
PRODUCT DESCRIPTION

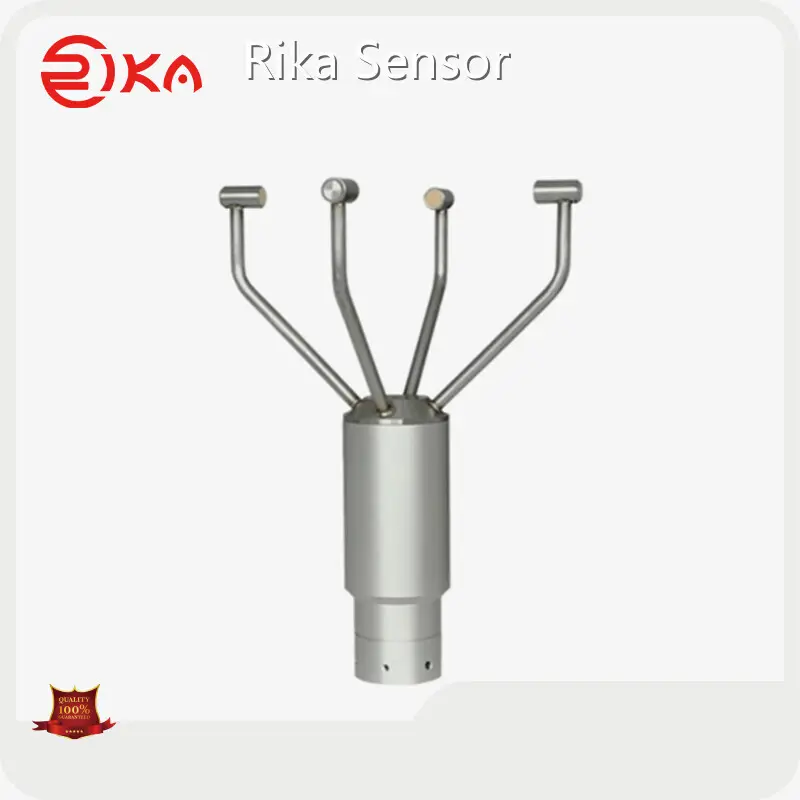

RK120-08 Ultrasonic Wind Speed &Direction Sensor operates on the work principle of ultrasonic transit-ime to measure the wind speed. The Anemometer features a light weight, no moving parts, and highdurability. It requires no maintenance and on-site calibration, and simultaneously outputs both windspeed and direction data. If necessary, customers may select wind speed unit, the output frequency andoutput format,may also select the heating device(recommended for cold environment)or analog output.It can connect with computers, data acquisition, or other RS485 or analog output consistent with thecollection of equipment. If necessary, you can also form a network of multiple to use. UltrasonicAnemometer is an advanced instrument of wind speed detection. Because it can overcome the inherentdefects of mechanical anemometer, it can work in whole day, long time. It gets more and more widelyused and is a powerful replacement of mechanical anemometer.
SPECIFICATIONS
Item | Technical Specification | |
Wind speed | Wind direction | |
Range | 0-60m/s | 0-359° |
Resolution | 0.01m/s | 1° |
Accuracy | ±2% | ±3° |
Starting threshold | 0.01m/s | |
Power supply | 12-24VDC(Heating must be 24VDC) | |
Power consumption | <0.2W (Heating not activated); <20W (Heating activated) | |
Output signal | RS485(MODBUS-RTU/NMEA-0183)/RS232/SDI-124-20mA/0-5V | |
Wind speed unit | m/s, knots, mph, kph, ft/min | |
Ultrasonic output frequency | 1Hz (default); 10Hz (optional) | |
Extreme Wind Speed | 80m/s | |
Baud rate | 4800-19200 | |
Operating temperature | -50℃-+70℃ | |
Storage temperature | -50℃-+80℃ | |
Working humidity | 0 - 100% | |
Ingress protection | IP66 | |
Dimension | Ф228*285mm | |
Weight(unpacked) | 1.13kg | |
Main material | Stainless steel + aluminum alloy | |
DIMENSION & MOUNTING
There are rotary adjustable mounting holes at the bottom of the sensor, when mounting the sensor, to ensure the indicator on the sensor comply with the geographic north.
Equipment Maintenance & Attention
PRODUCT APPLICATION
CUSTOMER TESTIMONIALS
CERTIFICATE
