Optical Ph Sensor - for Water Treatment - Rika Sensor
Product details of the optical ph sensor
Quick Overview
optical ph sensor has different kinds of shapes. The product has been tested to be in compliance with many quality norms. Hunan Rika Electronic Tech Co.,Ltd has a sales network that covers the whole country.
Product Description
Compared with its peer products, optical ph sensor produced by Rika Sensor has the following advantages.
PRODUCT DESCRIPTION

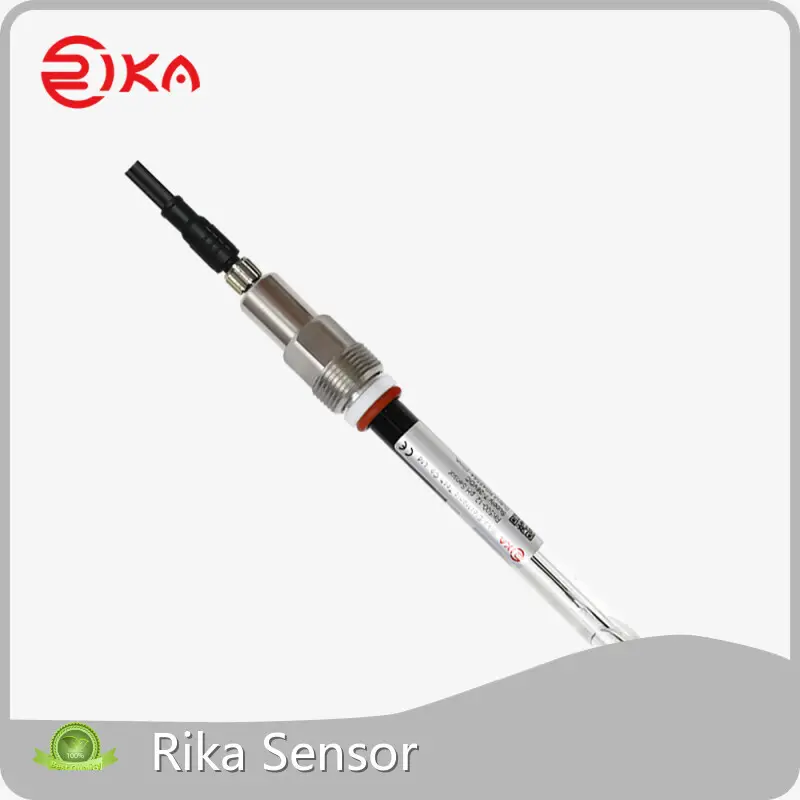

The RK500-12-B3 is a cutting-edge pH monitoring sensor engineered to excel in demanding industrial, environmental, and high-temperature applications, redefining precision and reliability in sensor technology. Designed with a robust construction of Glass+316L materials, this sensor ensures long-term durability even in harsh environments, combining chemical resistance with structural strength.
Operating seamlessly across a wide temperature range of 0-100°C and handling pressures up to 1MPa, it features a versatile PG13.5 thread and M8 waterproof connector for easy integration into existing systems, while its IP68 ingress protection guarantees performance in wet or submerged conditions.
SPECIFICATIONS
Technical Parameter | |
Type | B3 |
Material | Glass+316L |
Operation temperature | 0-100℃ |
Working pressure | 1MPa |
Thread | PG13.5 |
Electrical connection | M8 waterproof connector |
Application | High tempera-ture occasions, etc |
Range | 0-14pH |
Resolution | 0.01pH |
Accuracy | 0.01pH |
Response time | 10 seconds (98% flowing liquid) |
Temperature compensation | Thermal resistance |
Power supply | 7-30VDC(< 0.15W) |
Output | RS485 & 4-20mA |
Dimensions | Φ12.0 x 170.0 |
Ingress protection | IP68 |
pH Scale
pH value | Description |
<4.5 | Strongly acidity |
4.5-5.5 | Acidity |
5.5-6.5 | Faintly acidity |
6.5-7.5 | Neutral |
7.5-8.5 | Faintly alkalinity |
8.5-9.5 | Alkalinity |
>9.5 | Strongly alkalinity |
PRODUCT DETAILS
Electrode Maintenance
When the probe is not in use, it can be soaked in 3mol/l KCL solution or saturated KCL solution. It is strictly prohibited to immerse the electrode in distilled water, deionized water, or tap water with very low ion content. If the pH electrode is contaminated with inorganic substances, it can be cleaned with 0.1mol/l HCl or sodium hydroxide solution for a few minutes, and then rinsed with distilled water.If the pH electrode is contaminated with organic matter, it can be cleaned with alcohol or acetone, and then rinsed with distilled water. (Note: When using, remove the protective cap in front of the electrode)
According to the work environment, clean the electrodes with tap water every 3 or 6 months.
Installation & Fixed
Installation bracket (Iength=1m) NPT3/4 installation thread is optional
