PRODUCTS Ph Probes for Wastewater Manufacturer
Product details of the ph probes for wastewater
Product Description
The production technology of Rika Sensor ph probes for wastewater has been greatly improved by our dedicated R&D team. The product is inspected to industry standards to eliminate all defects. The product is widely praised among users for its good characteristics and has a high market application potential.
PRODUCT DESCRIPTION

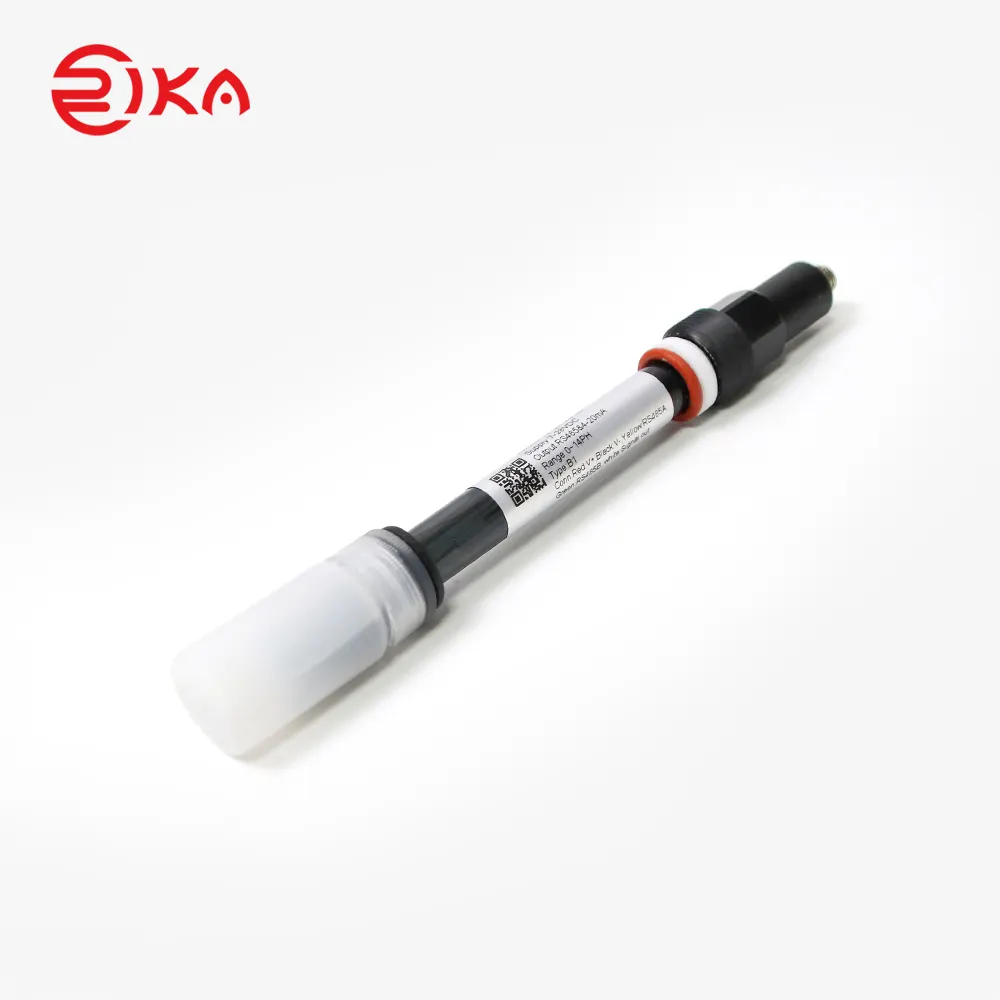

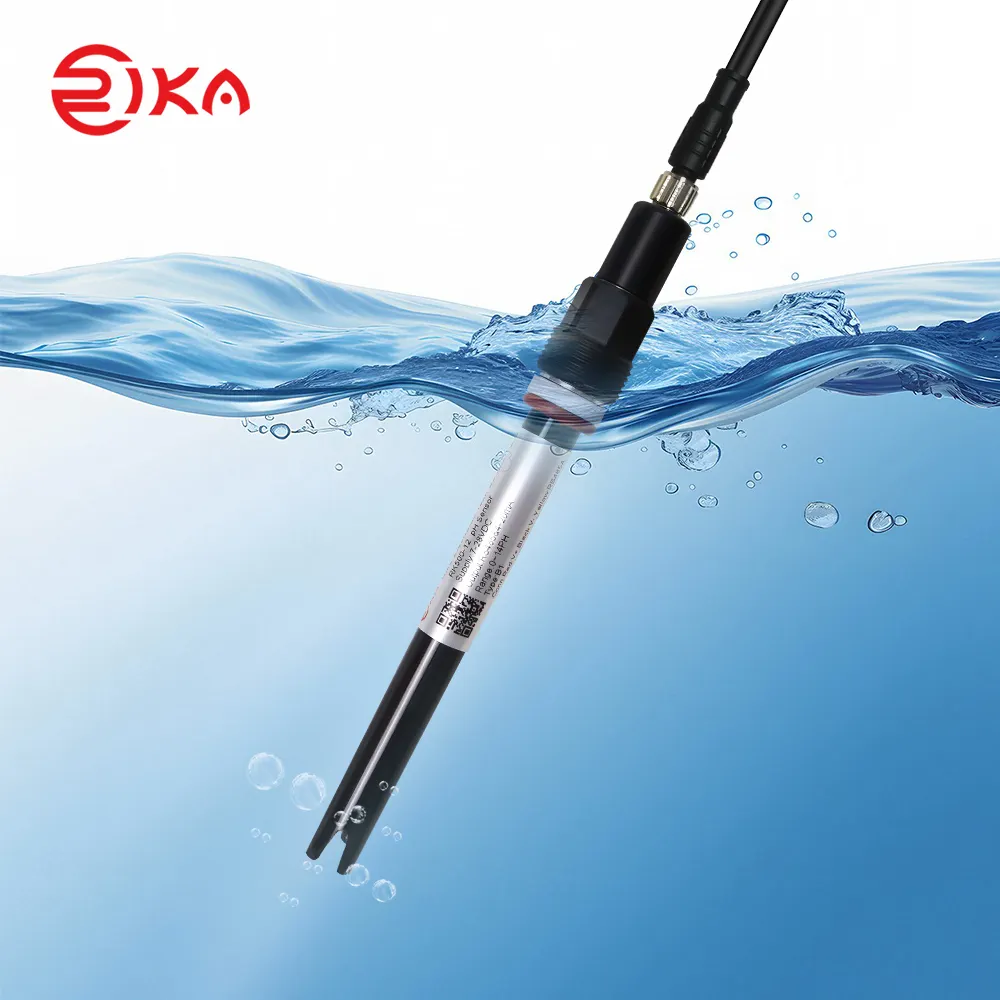

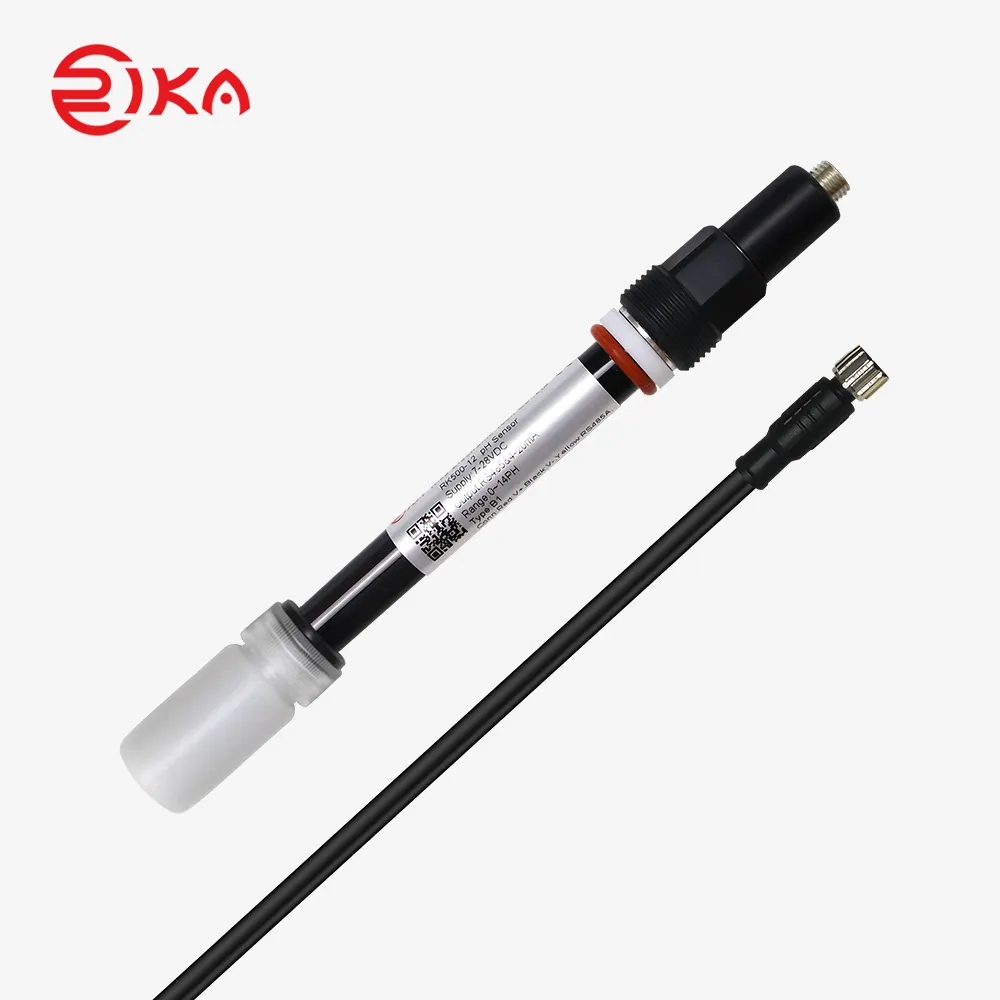

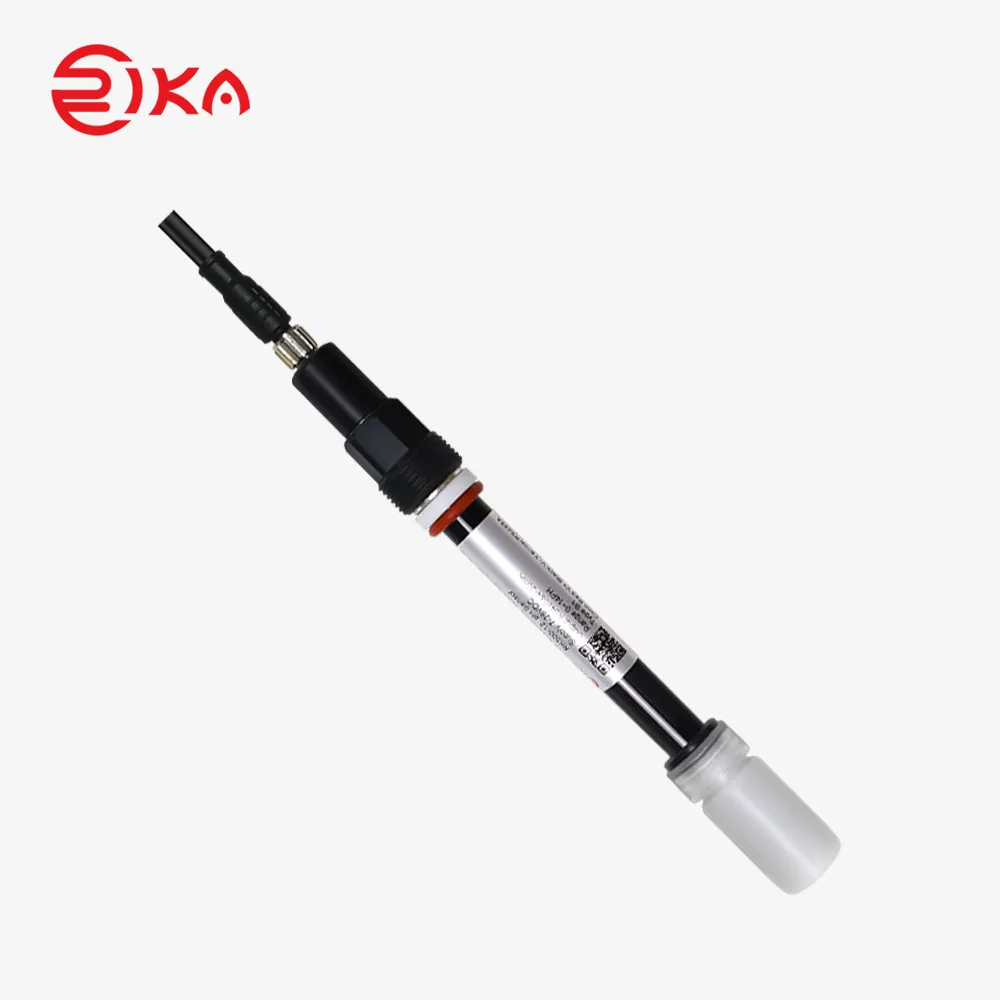

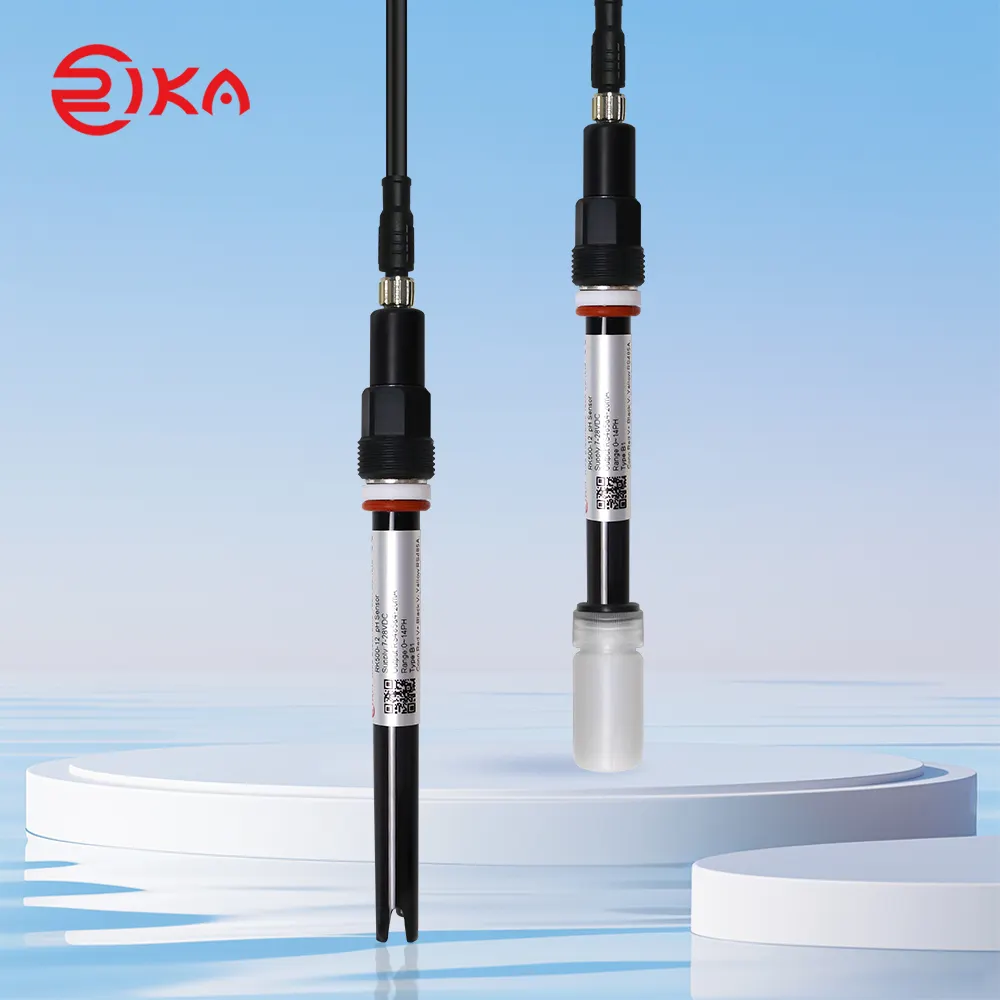

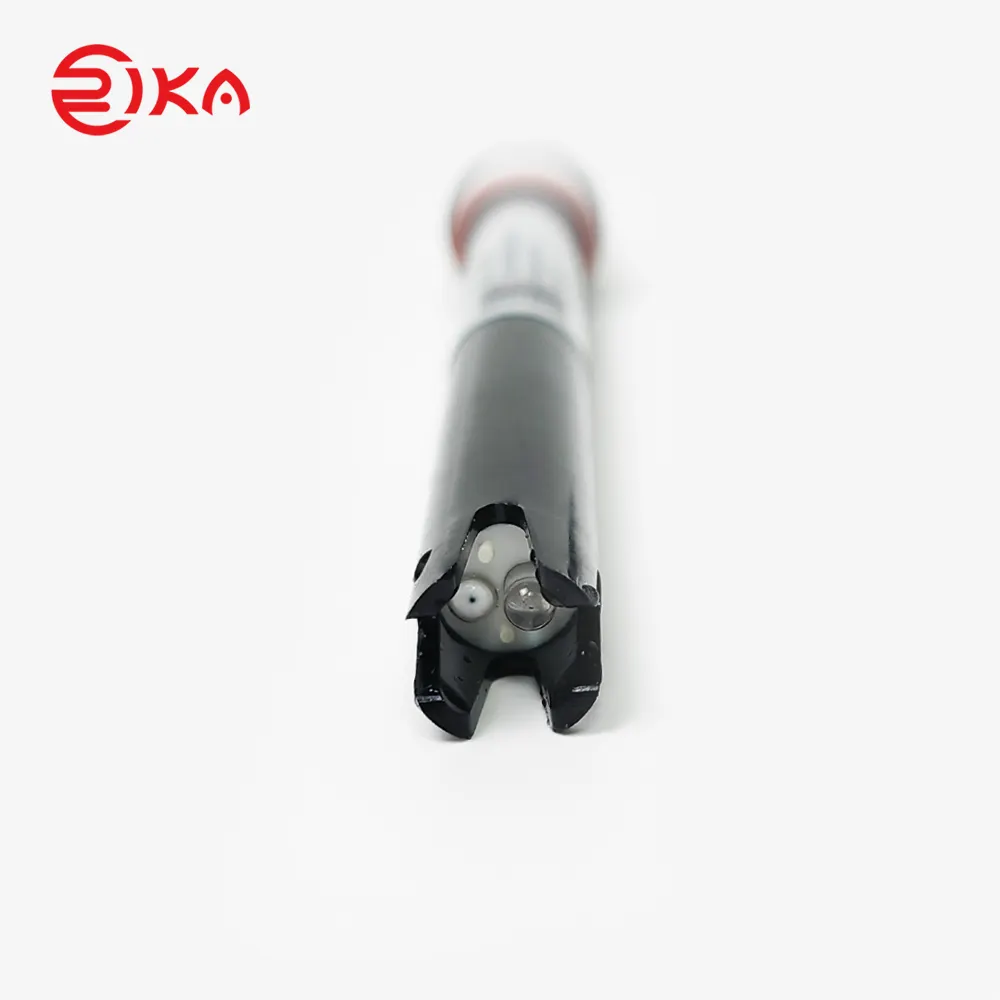

The RK500-12-B1 stands as a benchmark in pH monitoring technology, engineered to meet the rigorous demands of modern industrial, municipal, and environmental applications. This versatile and durable sensor redefines precision sensing through its advanced material composition (PC+ABS casing), intelligent design, and industry-leading performance—positioning it as an essential tool for professionals requiring unmatched accuracy, reliability, and adaptability in their monitoring systems.
Built to thrive in diverse environments, the RK500-12-B1 operates seamlessly across a 0–60°C temperature range and withstands 0.6MPa of working pressure, ensuring stability in high-pressure or fluctuating conditions. Its robust PG13.5 thread and M8 waterproof electrical connector (IP68-rated) deliver exceptional ingress protection, ideal for submersion, outdoor installations, or harsh industrial settings.
SPECIFICATIONS
Technical Parameter | |
Type | B1 |
Material | PC+ABS |
Operation temperature | 0-60℃ |
Working pressure | 0.6MPa |
Thread | PG13.5 |
Electrical connection | M8 waterproof connector |
Application | Conventional water, sewage, nutrient solution, etc |
Range | 0-14pH |
Resolution | 0.01pH |
Accuracy | 0.01pH |
Response time | 10 seconds (98% flowing liquid) |
Temperature compensation | Thermal resistance |
Power supply | 7-30VDC(< 0.15W) |
Output | RS485 & 4-20mA |
Dimensions | Φ12.0 x 170.0 |
Ingress protection | IP68 |
pH Scale
pH value | Description |
<4.5 | Strongly acidity |
4.5-5.5 | Acidity |
5.5-6.5 | Faintly acidity |
6.5-7.5 | Neutral |
7.5-8.5 | Faintly alkalinity |
8.5-9.5 | Alkalinity |
>9.5 | Strongly alkalinity |
PRODUCT DETAILS
Electrode Maintenance
When the probe is not in use, it can be soaked in 3mol/l KCL solution or saturated KCL solution. It is strictly prohibited to immerse the electrode in distilled water, deionized water, or tap water with very low ion content. If the pH electrode is contaminated with inorganic substances, it can be cleaned with 0.1mol/l HCl or sodium hydroxide solution for a few minutes, and then rinsed with distilled water.If the pH electrode is contaminated with organic matter, it can be cleaned with alcohol or acetone, and then rinsed with distilled water. (Note: When using, remove the protective cap in front of the electrode)
According to the work environment, clean the electrodes with tap water every 3 or 6 months.
Installation & Fixed
Installation bracket (Iength=1m) NPT3/4 installation thread is optional
