Product details of the water ph probe
Quick Overview
Each Rika Sensor water ph probe is tailored to your needs in accordance with environmentally friendly manufacturing practices.
Product Introduction
We strive for perfection and pursue excellence in every detail of production. All this promotes the high quality of our products.
PRODUCT DESCRIPTION

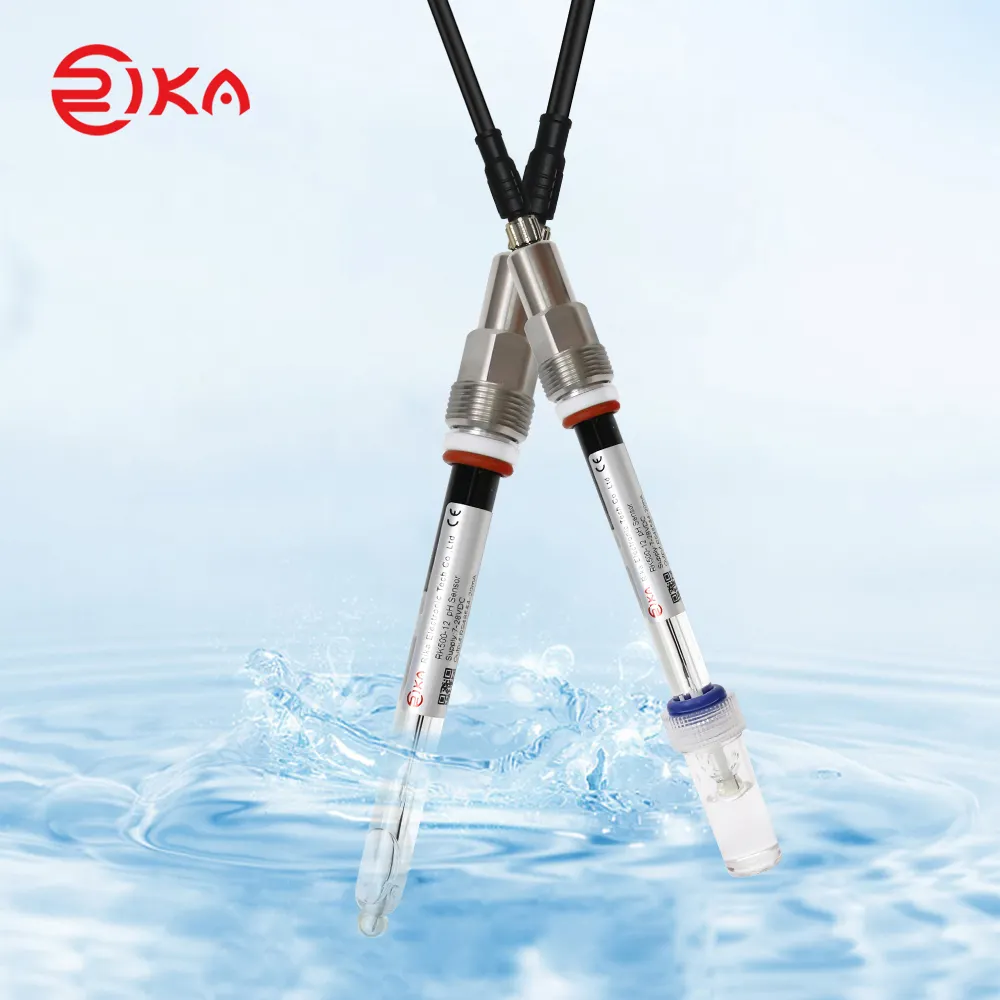

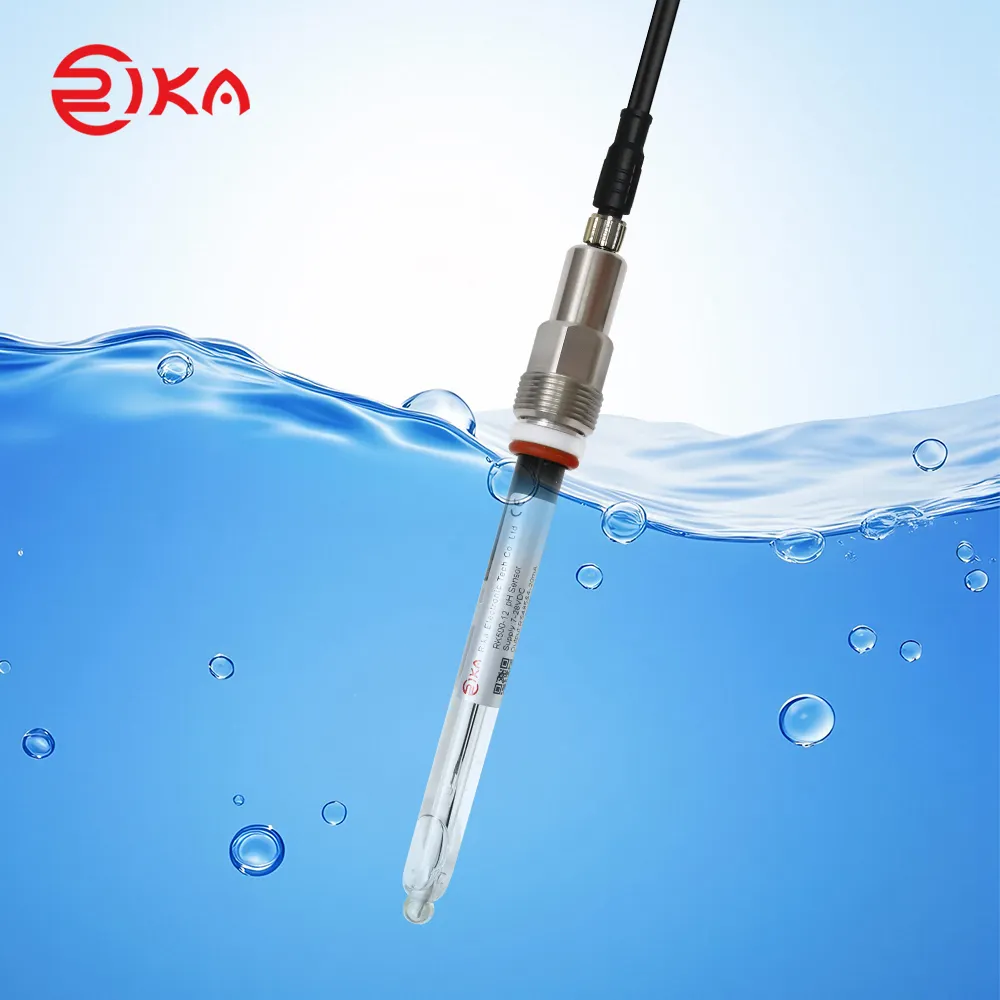

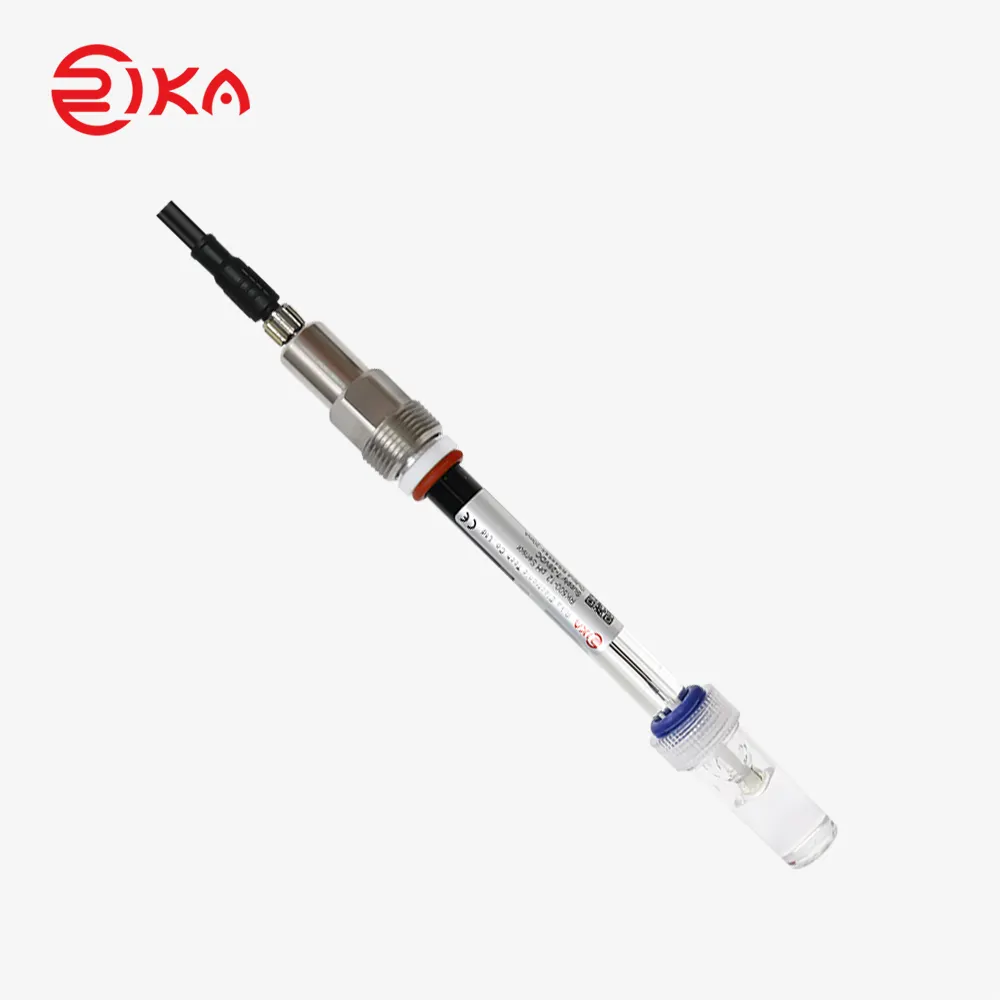

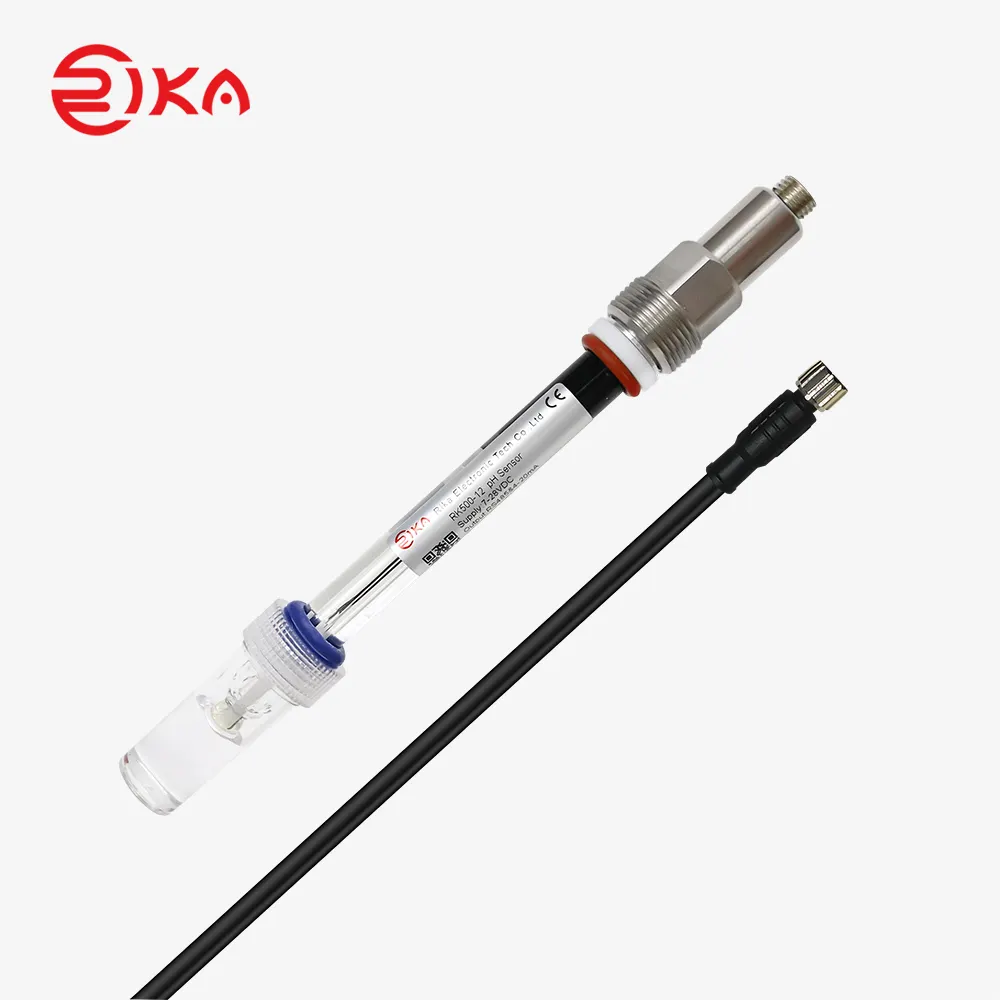

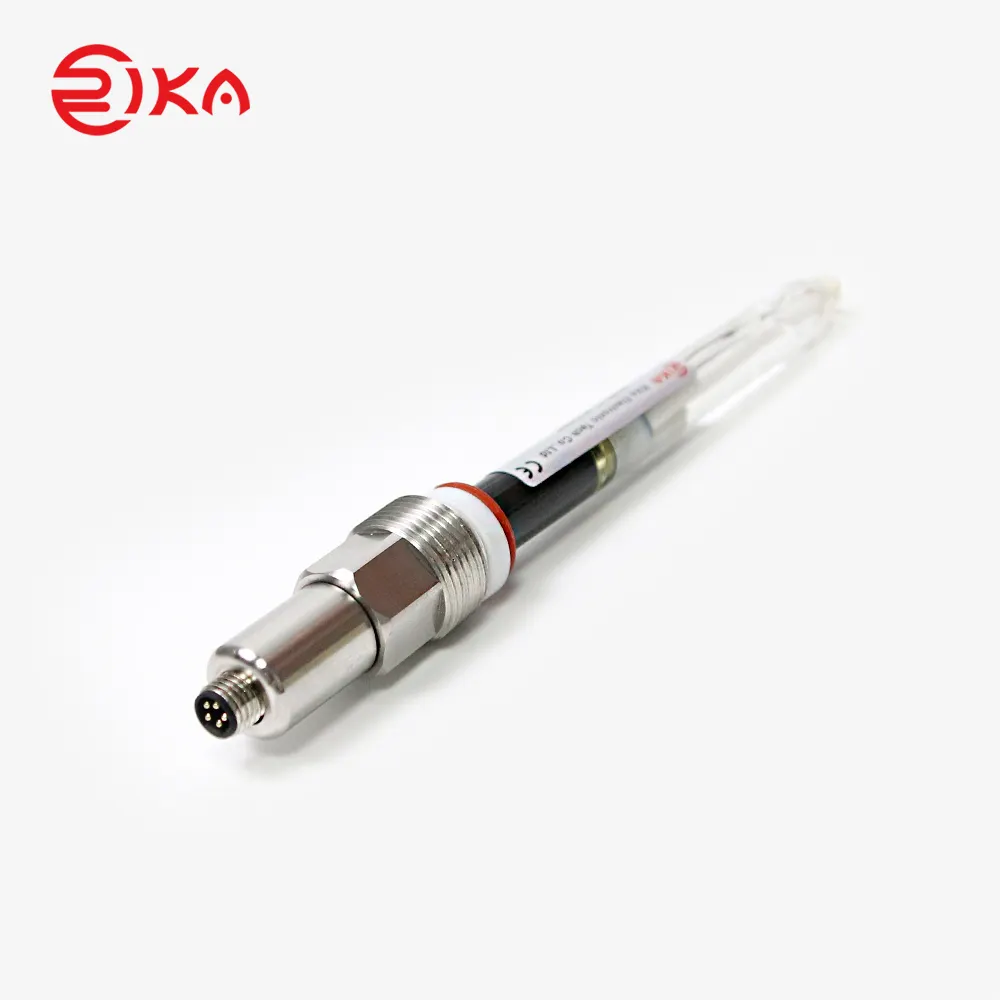

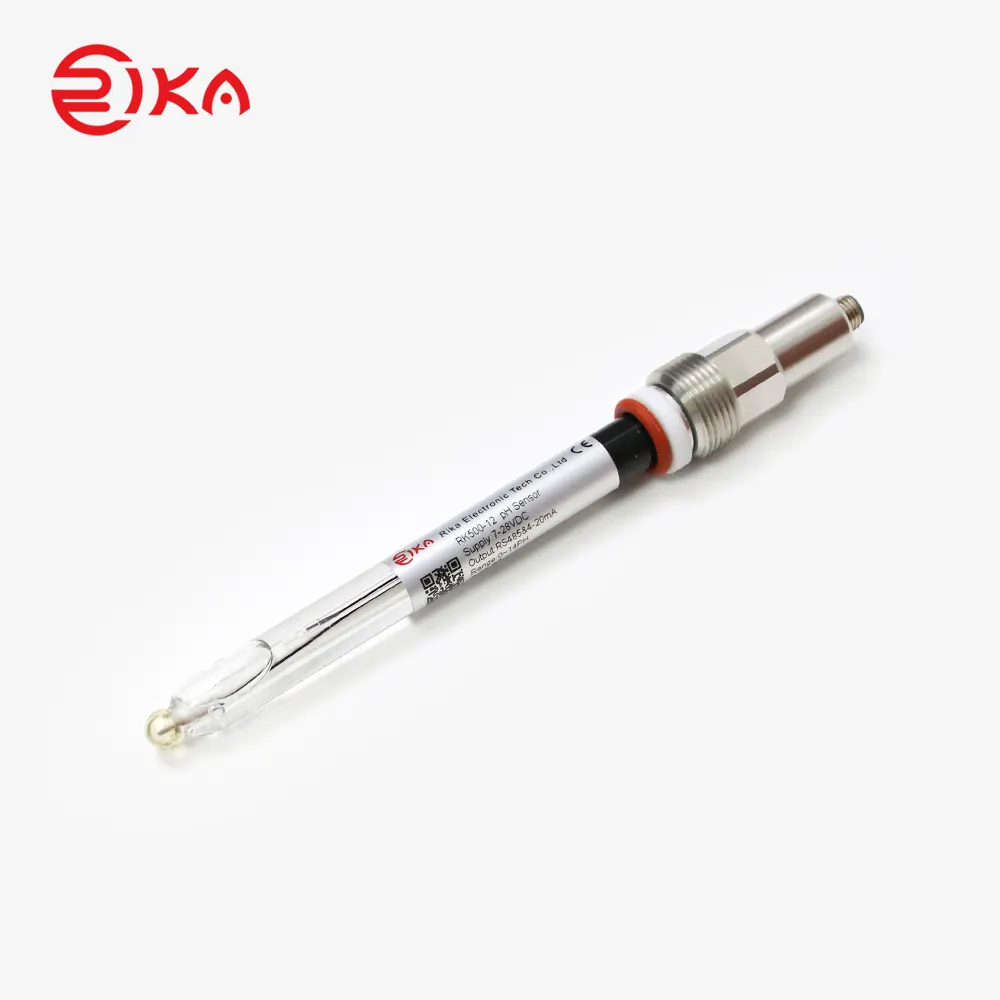

The RK500-12-B3 is a cutting-edge pH monitoring sensor engineered to excel in demanding industrial, environmental, and high-temperature applications, redefining precision and reliability in sensor technology. Designed with a robust construction of Glass+316L materials, this sensor ensures long-term durability even in harsh environments, combining chemical resistance with structural strength.
Operating seamlessly across a wide temperature range of 0-100°C and handling pressures up to 1MPa, it features a versatile PG13.5 thread and M8 waterproof connector for easy integration into existing systems, while its IP68 ingress protection guarantees performance in wet or submerged conditions.
SPECIFICATIONS
Technical Parameter | |
Type | B3 |
Material | Glass+316L |
Operation temperature | 0-100℃ |
Working pressure | 1MPa |
Thread | PG13.5 |
Electrical connection | M8 waterproof connector |
Application | High tempera-ture occasions, etc |
Range | 0-14pH |
Resolution | 0.01pH |
Accuracy | 0.01pH |
Response time | 10 seconds (98% flowing liquid) |
Temperature compensation | Thermal resistance |
Power supply | 7-30VDC(< 0.15W) |
Output | RS485 & 4-20mA |
Dimensions | Φ12.0 x 170.0 |
Ingress protection | IP68 |
pH Scale
pH value | Description |
<4.5 | Strongly acidity |
4.5-5.5 | Acidity |
5.5-6.5 | Faintly acidity |
6.5-7.5 | Neutral |
7.5-8.5 | Faintly alkalinity |
8.5-9.5 | Alkalinity |
>9.5 | Strongly alkalinity |
PRODUCT DETAILS
Electrode Maintenance
When the probe is not in use, it can be soaked in 3mol/l KCL solution or saturated KCL solution. It is strictly prohibited to immerse the electrode in distilled water, deionized water, or tap water with very low ion content. If the pH electrode is contaminated with inorganic substances, it can be cleaned with 0.1mol/l HCl or sodium hydroxide solution for a few minutes, and then rinsed with distilled water.If the pH electrode is contaminated with organic matter, it can be cleaned with alcohol or acetone, and then rinsed with distilled water. (Note: When using, remove the protective cap in front of the electrode)
According to the work environment, clean the electrodes with tap water every 3 or 6 months.
Installation & Fixed
Installation bracket (Iength=1m) NPT3/4 installation thread is optional
