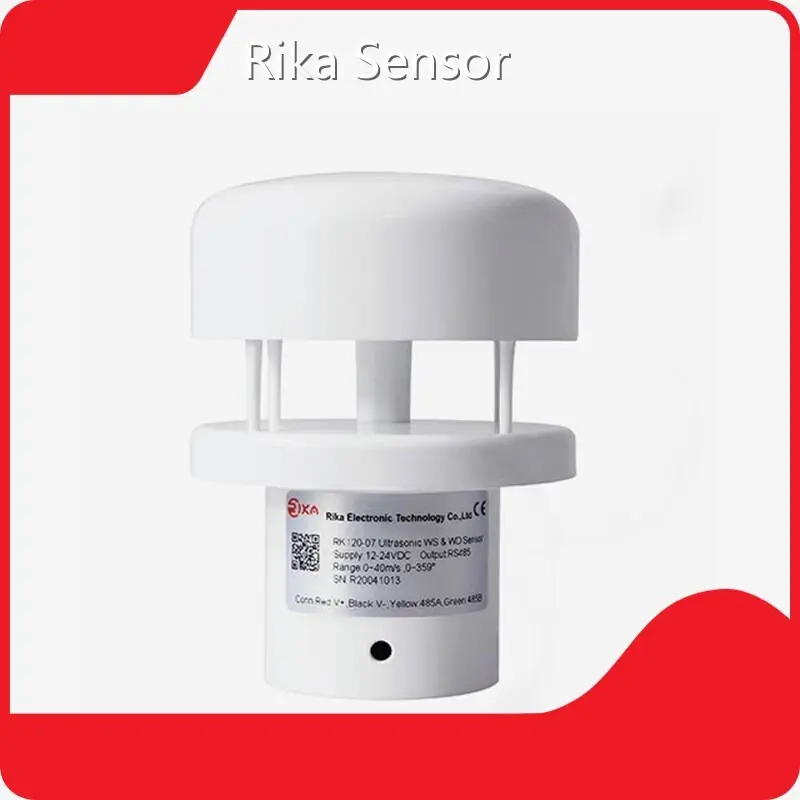

Ultrasonic Wind Sensor Low Cost Ultrasonic Anemometer Manufacturer
Product details of the low cost ultrasonic anemometer
Product Introduction
Rika Sensor low cost ultrasonic anemometer is precisely manufactured using leading-edge production techniques in line with the current market standards. The optimum quality and excellent performance makes the product the most sought-after product. With excellent economic returns, this product is considered to be the most promising product on the market.
PRODUCT DESCRIPTION
RK120-07 The wind speed and direction meter is a kind of measuring instrument which uses the time difference of ultrasonic wave in the air to measure the wind speed and direction. RK120-07 uses low-power chip with power consumption of only 0.2W, which is especially suitable for solar or battery powered environment with high power consumption requirements. Due to the adoption of new technology and new process, the structure is more compact and compact. Optional temperature and air pressure module.
SPECIFICATIONS
Item | Technical Specification | ||
Wind speed | Wind direction | ||
Range | 0-40m/s | 0-360° | |
Resolution | 0.1m/s | 1° | |
Accuracy | ±5% | ±3° | |
Starting threshold | 0.1m/s | ||
Power supply | 12-24VDC | ||
Power consumption | 0.12W | ||
Output signal | RS485(Modbus-RTU/NMEA-0183)/RS232/SDI-124-20mA/0-5V(only for wind speed & direction optional) | ||
Extreme wind speed | 40m/s | ||
Baud rate | 4800-19200 | ||
Data update cycle | 1s | ||
Operating temperature | -30℃-+60℃ | ||
Storage temperature | -40℃-+80℃ | ||
Working humidity | 0 - 100% | ||
Ingress protection | IP65 | ||
Atmosphericpressure(optional) | Range | 300-1100hPa | |
Resolution | 0.1hPa | ||
Accuracy | ±1hPa | ||
Dimension | Ф82*108mm | ||
Weight(unpacked) | 0.18kg | ||
Main material | ASA | ||
Mounting & Dimensions
Step1:
Positioning: The RK120-07 is generally installed in a vertical installation pipe. Ensure the measurementon the same level.
For indoor use, the sensor can be used at anywhere. Directional installation to measure wind speed ondifferent planes.
Step2:
There are rotary adjustable mounting holes at the bottom of the sensor, when mounting the sensor, toensure the indicator on the sensor comply with the geographic north.
Step3:
Installation: the installation pipe needs 3 equally spaced holes, tapping M5 screws, position7.5mm fromthe top of the pipe.
