Ultrasonic Wind Sensor Price Supply for Ship Navigation
Product details of the ultrasonic wind sensor price
Quick Detail
With unique design, our ultrasonic wind sensor price can satisfy the pursuits of clients to it. This product has an extremely high level of performance, which is guaranteed by the quality control system. Hunan Rika Electronic Tech Co.,Ltd provides both a professional image and quality service to attract and retain customers.
Product Description
Rika Sensor pursues perfection in every detail of ultrasonic wind sensor price, so as to show quality excellence.
PRODUCT DESCRIPTION

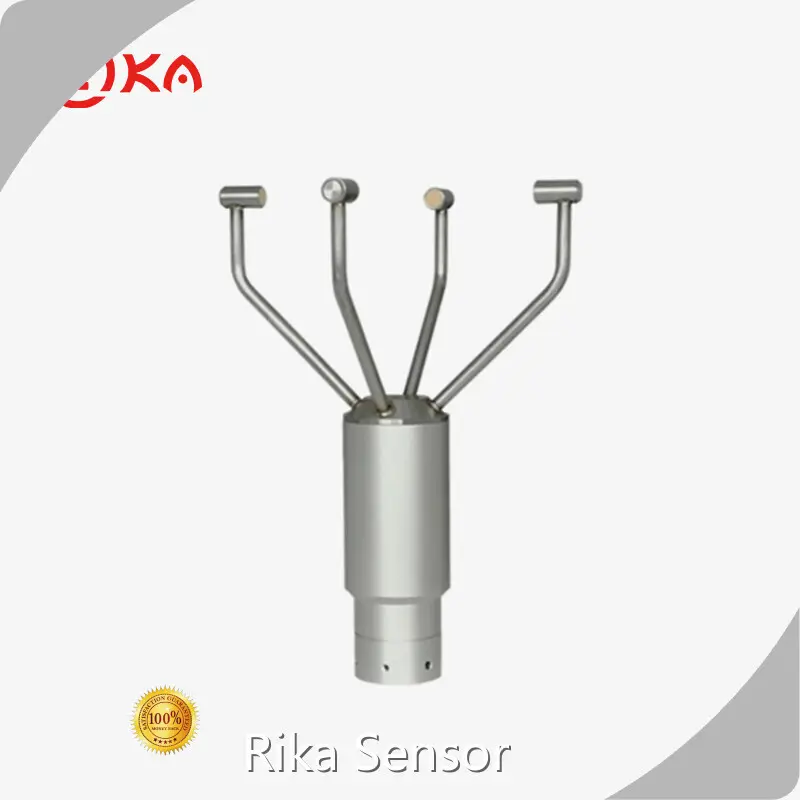

RK120-08 Ultrasonic Wind Speed &Direction Sensor operates on the work principle of ultrasonic transit-ime to measure the wind speed. The Anemometer features a light weight, no moving parts, and highdurability. It requires no maintenance and on-site calibration, and simultaneously outputs both windspeed and direction data. If necessary, customers may select wind speed unit, the output frequency andoutput format,may also select the heating device(recommended for cold environment)or analog output.It can connect with computers, data acquisition, or other RS485 or analog output consistent with thecollection of equipment. If necessary, you can also form a network of multiple to use. UltrasonicAnemometer is an advanced instrument of wind speed detection. Because it can overcome the inherentdefects of mechanical anemometer, it can work in whole day, long time. It gets more and more widelyused and is a powerful replacement of mechanical anemometer.
SPECIFICATIONS
Item | Technical Specification | |
Wind speed | Wind direction | |
Range | 0-60m/s | 0-359° |
Resolution | 0.01m/s | 1° |
Accuracy | ±2% | ±3° |
Starting threshold | 0.01m/s | |
Power supply | 12-24VDC(Heating must be 24VDC) | |
Power consumption | <0.2W (Heating not activated); <20W (Heating activated) | |
Output signal | RS485(MODBUS-RTU/NMEA-0183)/RS232/SDI-124-20mA/0-5V | |
Wind speed unit | m/s, knots, mph, kph, ft/min | |
Ultrasonic output frequency | 1Hz (default); 10Hz (optional) | |
Extreme Wind Speed | 80m/s | |
Baud rate | 4800-19200 | |
Operating temperature | -50℃-+70℃ | |
Storage temperature | -50℃-+80℃ | |
Working humidity | 0 - 100% | |
Ingress protection | IP66 | |
Dimension | Ф228*285mm | |
Weight(unpacked) | 1.13kg | |
Main material | Stainless steel + aluminum alloy | |
DIMENSION & MOUNTING
There are rotary adjustable mounting holes at the bottom of the sensor, when mounting the sensor, to ensure the indicator on the sensor comply with the geographic north.
Equipment Maintenance & Attention
PRODUCT APPLICATION
CUSTOMER TESTIMONIALS
CERTIFICATE
Company Advantages
Hunan Rika Electronic Tech Co.,Ltd is among those companies specializing in ultrasonic wind sensor price. Hunan Rika Electronic Tech Co.,Ltd spends lots of money on advanced ultrasonic wind sensor price manufacturing facilities. We commit ourselves to safety, quality, reliability, and innovations. We will always prioritize these values at the top during the production processes. Welcome to visit our factory!
We have high production efficiency, and we look forward to the cooperation with you.
