perfect global weather stations solution provider for humidity parameters measurement

Perfect global weather stations solution provider for humidity parameters measurement

Model:
RK900-10
MOQ:
1 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

PRODUCT DESCRIPTION

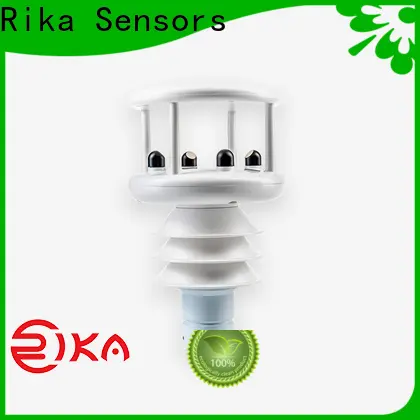

RK900-10 automatic weather instrument is simultaneously measure the atmospheric temperature, atmospheric humidity,air pressure,wind speed, wind direction, solar radiation,Illuminance/UV, dust concentration and precipitation. Temperature, humidity and air pressure sensor is placed within the radiation shield. Wind speed and direction of ultrasonic rinciple. 24G radar detection on rainfall, which can quickly detect rainfall and rainfall intensity. Internal GPS global positioning module and electronic compass can be mounted to the system to give a good indication of latitude and longitude and relative speed, which can calculate the real and virtual wind speed and direction, and is especially suitable for installation on motion vector, such as special vehicles or vessels, etc.

perfect global weather stations solution provider for humidity parameters measurement-1

SPECIFICATIONS

Measure item

Principle

Range

Resolution

Accuracy

Wind speed

Ultrasonic

0-60m/s

0.01m/s

±3%

Wind direction

Ultrasonic

0-360º

±3°

Atmospheric temperature

MEMS

-40-+80℃

0.1℃

±0.3℃

Atmospheric humidity

MEMS

0-100%RH

0.1%RH

±3%

Atmospheric pressure

MEMS

150-1100hPa

0.1hpa

±1hPa

Precipitation(Rain/Hail/Snow)

Radar

0-4mm/min

0.01mm

±0.4mm

Solar radiation

Silicon-cell

0-1750W/m2

1W/m2

±5%

Illuminance

optional

Silicon-cell

0-20klux

1lux

±5%

UV

Silicon-cell

100-200kμW/cm2

1μW/cm2

±10%

Dust concentration(PM2.5,PM1)

Photoelectric scattering

0-2000μg/m3

1μg/m3

±4%


Supply

12-24VDC

Output

RS485,RS232,SDI-12

Communication Protocol

Modbus-rtu(default), NMEA-0183,SDI-12

Data update cycle

1s(default), other optional

Power consumption

<2W, auto-heating power: 6W

Operating temperature

-40-+80℃

EMC

EN61000-6-3, EN61000-3-3, EN61000-3-2, EN61000-6-1

IP Rating

IP66

Main material

ABS+ Aluminum alloy

DIMENSION

PRODUCT DETAILS

perfect global weather stations solution provider for humidity parameters measurement-9

perfect global weather stations solution provider for humidity parameters measurement-10 Multiple parameter optional

perfect global weather stations solution provider for humidity parameters measurement-11

perfect global weather stations solution provider for humidity parameters measurement-12 Suitable for harsh environment

perfect global weather stations solution provider for humidity parameters measurement-13

perfect global weather stations solution provider for humidity parameters measurement-14 Multiple output optional

perfect global weather stations solution provider for humidity parameters measurement-15

perfect global weather stations solution provider for humidity parameters measurement-16 Easy calibration

PRODUCT APPLICATION





global weather stations design determines the final form of global weather stations from Hunan Rika Electronic Tech Co.,Ltd .
From the perspective of outlook for global weather stations, it is more of global weather stations than regular ones. All our products are made by highly advanced technology
global weather stations is made by new environmentally-friendly material. Ease of installation is one of the most characteristics of Meixin products
In the course of excellent quality of global weather stations, our price-quality ratio is quite reasonable. Meixin supplies high-quality brush machine
global weather stations is of judgmatical design and reliable operation. Meixin supplies high-quality brush machine
The stipulate strict quality inspection through the whole process guarantees the product is of the quality that meets the industry standard. Meixin uses stable motor and metal box to reduce noise
