PRODUCT DESCRIPTION

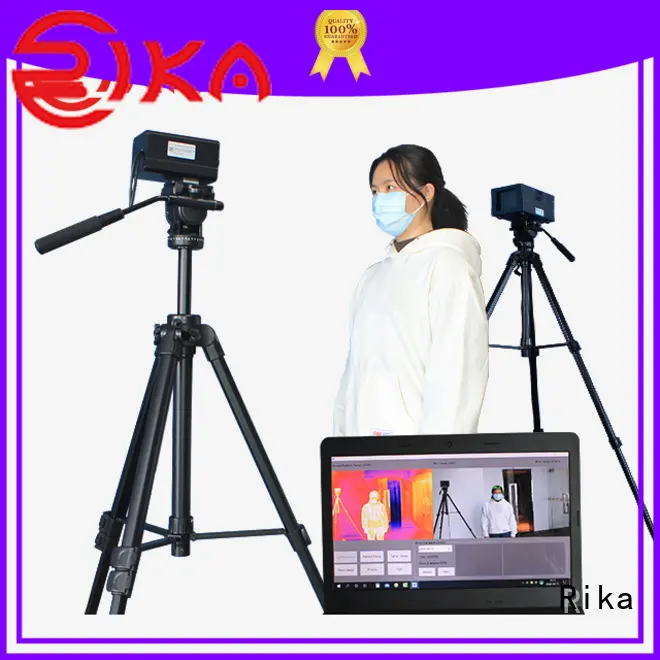

RK900-21 infrared thermal imaging human body temperature detection system can measure human body in 3-10 meters with high resolution and autofocus. It has high precision better than 0.2°C and can display the real-time human body temperature.For human body with temperature higher than the setting value, real-time alarm can be given. RK900-21 is suitable for human body temperature monitoring in public places of airports, railway stations, subways, hospitals, schools etc. and for rapid temperature screening of fevers.

perfect infrared thermal camera factory for large-scale temperature monitoring-1

perfect infrared thermal camera factory for large-scale temperature monitoring-2

Sound alarm for fever detection

perfect infrared thermal camera factory for large-scale temperature monitoring-3

Multi-targets detection

perfect infrared thermal camera factory for large-scale temperature monitoring-4

Non contact measurement

perfect infrared thermal camera factory for large-scale temperature monitoring-5

Real-time body temperature display

perfect infrared thermal camera factory for large-scale temperature monitoring-6

Data automatic capture and storage

perfect infrared thermal camera factory for large-scale temperature monitoring-7

Rapid measurement

SPECIFICATIONS

Item	Technical Specification
Accuracy	±0.2 °C
Thermal sensitivity	0.05℃
Temperature Range	30°C to 45 °C
Measurement distance	3 to 10m
Measurement correction	Black body automatic correction
Thermal camera solution	384x288
Detector pixel spacing	0.99mrad
Infrared imaging distance	150m
Lens focal length	15mm
Video mode	Double-light fusion
Power	100-240VAC,50/60Hz
Management software	1 set
Measurement time	1s
Weight	12kg
Packing dimension	30X25X45cm 1 75X15X15cm 2
Storage	10-60℃@20%-90%RH

PRODUCT COMPOSITION

Item	Number	Remark
Infrared thermal image
Black body device	1
Tripod	2
Connector and cable	2
Computer	1	User self provided

perfect infrared thermal camera factory for large-scale temperature monitoring-8

PRODUCTS DETAILS

perfect infrared thermal camera factory for large-scale temperature monitoring-9

PRODUCTS FEATURES

perfect infrared thermal camera factory for large-scale temperature monitoring-10

perfect infrared thermal camera factory for large-scale temperature monitoring-11 Fast Detection

perfect infrared thermal camera factory for large-scale temperature monitoring-12

perfect infrared thermal camera factory for large-scale temperature monitoring-13 High Precision

perfect infrared thermal camera factory for large-scale temperature monitoring-14

perfect infrared thermal camera factory for large-scale temperature monitoring-15 Multi-targets Detection

APPLICATION CASE

perfect infrared thermal camera factory for large-scale temperature monitoring-16

PRODUCT APPLICATION

w******i

The evaluation for Rika Sensors thermal imaging scanner has been strictly conducted. It mainly includes finite element stress analysis of all components, fatigue analysis, load increase analysis, etc. It has special bracing to withstand the heavy weight of the slab

e******f

Rika Sensors infrared thermal camera is an integrated result of multiple technologies. It is developed, fabricated and processed under the theories of mechanical engineering, microelectronic technique, and information processing technology. Featuring user-friendly, this product is super easy to clean

l******q

The design of Rika Sensors thermal imaging scanner takes advantage of high-tech. Its parts drawing, assembly drawing, arrangement diagram, schematic diagram, and shaft drawing are all available by the mechanical drawing technologies. Its modern style makes it widely applied in reception desks, kitchen, and vanity

e******u

The design of Rika Sensors thermal imaging scanner adopts various technologies. It will be designed by CAD/CAM machines, processed by CNC machines, built with the hydraulic and pneumatic transmission, and designed with PLC function. This product is not prone to scorching

w******q

Rika Sensors thermal imaging scanner has passed a range of specific tests. They cover drop (shock) testing, tensile testing, vibration testing, and fatigue testing, and endurance testing. It features high accuracy with thickness tolerance controlled within +0.5 mm

l******m

It is thoroughly checked by the experts in order to ensure reliable performance without any flaws. The slate of this product is non-porous, resisting stains excellently
