perfect pyranometer price manufacturer for relative humidity measurement

Perfect pyranometer price manufacturer for relative humidity measurement

Model:
RK95-08
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

PRODUCT DESCRIPTION

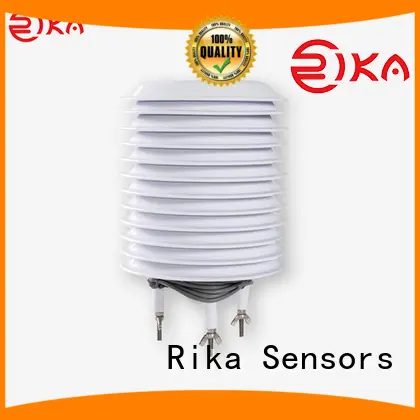

The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather conditions.The product with breathing fan, make sure the screen inside and outside environment difference is minimal.

perfect pyranometer price manufacturer for relative humidity measurement-1

SPECIFICATIONS

Item

Specifications

Number of plates

7-20 plates optional,typ.:11,14,19

Color

White

Material

Anti-radiation engineering plastics & Stainless steel screw

Supply of fan

7-13.8VDC(typ.12VDC)

Rated power

1W

Operating temperature

-40℃-+75℃

Dimension

Inner diameter:62mm,Outer diameter:140mm/180mm
     Height:180mm(11 plates),220mm(14 plates),280mm(19 plates)

Optional accessories

Metal bracket(304SS),Embrace hoop screw(inner diameter:60mm,304SS)

BRACKET DIMENSION & WATERPROOF GLANDS SPECIFICATIONS

DIMENSION

perfect pyranometer price manufacturer for relative humidity measurement-8

Plates

Inner space(mm)

D1(mm)

H1(mm)

H2(mm)

7

ø62*50

140

89

approx.63

8

ø62*63

140

101

approx.63

9

ø62*75

140

114

approx.63

10

ø62*88

140

126

approx.63

11

ø62*100

140

139

approx.63

12

ø62*113

140

151

approx.63

13

ø62*125

140

164

approx.63

14

ø62*138

140

176

approx.63

15

ø62*150

140

189

approx.63

16

ø62*163

140

201

approx.63

17

ø62*175

140

214

approx.63

18

ø62*198

140

226

approx.63

19

ø62*200

140

239

approx.63

20

ø62*213

140

251

approx.63

ADAPTER WATERPROOF GLANDS

PG  Glands

Model

Cable/Sensor Diameter(mm)

PG7

3-6.5

PG9

4-8

PG11

5-10

PG13.5

6-12

PG16

10-13

PG19

12-15

PG21

13-18

PG25

16-21

PG29

18-25

PG36

22-32

perfect pyranometer price manufacturer for relative humidity measurement-9

PRODUCT DETAILS

perfect pyranometer price manufacturer for relative humidity measurement-10

perfect pyranometer price manufacturer for relative humidity measurement-11Material

perfect pyranometer price manufacturer for relative humidity measurement-12

perfect pyranometer price manufacturer for relative humidity measurement-13 Multiple output optional

perfect pyranometer price manufacturer for relative humidity measurement-14

perfect pyranometer price manufacturer for relative humidity measurement-15Product features

PRODUCT APPLICATION



irradiance sensor is designed to bring great convenience for customers. The product has the advantage of high strength
weather station radiation shield from Hunan Rika Electronic Tech Co.,Ltd is of superior quality. It has a strong adjustment function, ensuring the calibration accuracy
It is weather station radiation shield that contributes to the uniqueness of our pyranometer price. It conforms to the standards of EN, ASTM, DIN, BS, JIS, etc
Hunan Rika Electronic Tech Co.,Ltd provides different designs of pyranometer price for your choice. The edges of the product have been machined to be smooth
Through the extinguished design of our professional engineers, our pyranometer price in its pyranometer price rank top. It has an alarm report function when finishing the test work
Rika Sensors combines weather station radiation shield with weather station radiation shield together to ensure the durability of irradiance sensor. High impact resistance is the special property of the product
