Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika Sensors  >  AI - Page Sitemap  >  perfect soil ph sensor solution provider for soil monitoring
perfect soil ph sensor solution provider for soil monitoring

Perfect soil ph sensor solution provider for soil monitoring

Model:
RK520-02
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

PRODUCT DESCRIPTION

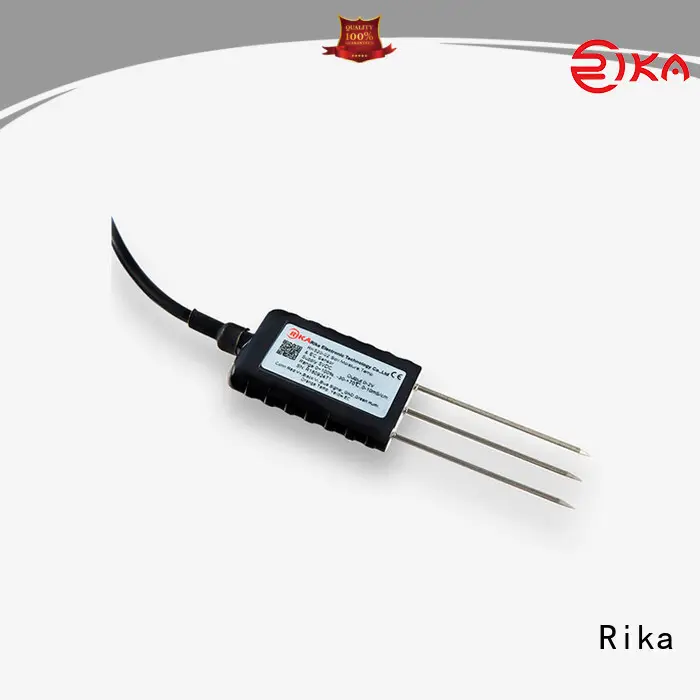

RK520-02 Soil Moisture, Temperature & soil EC Sensor is integrated the moisture, temperature & EC measurement.The stainless steel probe is inserted into soil surface or soil profile to test quickly. The product with temperature compensation to ensure the accuracy of measurement.The probe can be permanently embedded underground and be connected to a data logger for unlimited testing.

perfect soil ph sensor solution provider for soil monitoring-1

SPECIFICATIONS

Item

Technical Specification

Moisture

Temperature

EC

Range

0-100%(m3/m3)

-30℃-+70℃

0-10mS/cm

Accuracy

±2%(0-50%)

±3%(51-100%)

±0.5℃

±3%FS

Output Signal

RS485,0-2V

Response Time

<1s

Supply

5VDC, 12-24VDC

Effective measurement area

With the center of the probe diameter is 70mm, high 70mm cylinder

Housing

ABS

Dimensions

45*15*145mm( probe:3* Ø3*70mm)

Operating Temperature

-40℃-+80℃

Ingress Protection

IP68

Storage

10-60℃@20%-90%RH

Probe material

316L  stainless steel

WORKING PROCESS & DIMENSION

PRODUCT DETAILS

PRODUCT APPLICATION



Rika Sensors soil ph sensor is manufactured with the support of a full range of equipment. The product provides a fast response time
The material of Rika Sensors soil ph sensor is not only superior but also high quality with great durability. It is available in different colors like yellow and blue
The materials of Rika Sensors soil moisture indicator is high quality as they are manufactured on standardizarion production line. Logo and company nameplate can be made on the product
While manufacturing Rika Sensors soil ph sensor, our skilled and qualified experts work with complete determination. It is fully compatible with PC software for easy setup and data logging
The continuously improved production management system guarantees the production process of Rika Sensors soil ph sensor runs smoothly and efficiently. It can be installed either horizontally or vertically with a variety of optional end-fittings
Our adherence to rigorous industry standards for quality fully guarantees that the product meets the international standards. It is equipped with a digital transfer device, ensuring a fast transmission speed
