perfect water monitoring sensors manufacturer for temperature monitoring

Perfect water monitoring sensors manufacturer for temperature monitoring

Model:
RK 500-06
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Enterprise Strength
  • Rika Sensors runs the business in good faith and strives to provide professional services for customers.
Product Details
Rika Sensors's environmental sensor is processed based on advanced technology. It has excellent performances in the following details.Rika Sensors has the ability to meet different needs. environmental sensor is available in multiple types and specifications. The quality is reliable and the price is reasonable.
  • product-Rika Sensors-perfect water monitoring sensors manufacturer for temperature monitoring-img

PRODUCT DESCRIPTION

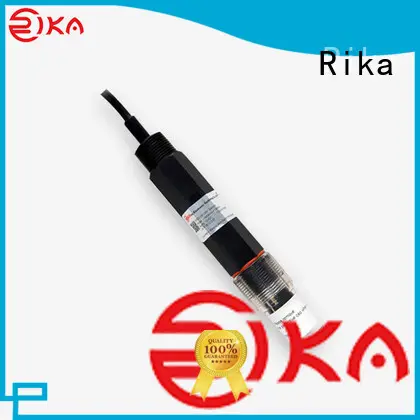

RK500-06 ORP sensor is simple and cost effective solution for a wide variety of waste water and process applications. This all-in-one sensor provides simultaneous measurement of ORP and temperature. The rugged Ryton body is designed for easy installation into on-line via the 3/4 inch tapered threaded connections provided on both ends of the sensor. The wide body sensors (26 mm diameter) hold four separate elements in one unbreakable Ryton body, large volume gelled electrolyte and the double junction reference system slows down depletion and poisoning extending the life time.

perfect water monitoring sensors manufacturer for temperature monitoring-1

SPECIFICATIONS

Item

Technical Specification

ORP

Temperature(only for RS485)

Measurement Principle

Electrochemical(platinum ring)

Thermal resistance

Range

-1500mV-+1500mV

0-80℃

Resolution

0.1mV

0.1℃

Accuracy

±0.5mV

±0.5℃

Supply

7-30VDC

Response time

5s

Output

4-20mA & RS485 at the same time

Operating Environment

-10-+80℃(<0.6MPa)

Stability

≤1%/year

Maintenance

Every 1 months to clean the electrode, every 6 months calibrated

Power consumption

<0.4W

Ingress Protection

IP68

Storage

10-60℃@20%-90%RH

Cable length

5m default, customizable

DIMENSION

ELECTRODE MAINTENANCE & INSTALLATION AND FIXED

PH electrode is not used at ordinary times and can be soaked in 3mol/l KCL solution or saturated KCL solution. It is strictly prohibited to immerse the electrode in distilled water and deionize the water or tap water with minimal plasma content.If the PH electrode is contaminated with inorganic substances, it can be cleaned with 0.1mol/l Hcl or NaOH solution for a few minutes and then washed with distilled water. If the PH electrode is contaminated with organic substances, it can be cleaned with alcohol or acetone and then cleaned with distilled water.(note: the protective cap before the electrode should be removed when using);

Clean the electrode with tap water every 3 months or 6 months according to the working environment.

Mounting bracket(length=1m) is optional

PRODUCT DETAILS

perfect water monitoring sensors manufacturer for temperature monitoring-16

perfect water monitoring sensors manufacturer for temperature monitoring-17Product Principle & Material

perfect water monitoring sensors manufacturer for temperature monitoring-18

perfect water monitoring sensors manufacturer for temperature monitoring-19 Product Features

PRODUCT APPLICATION



Production of Rika Sensors water monitoring sensors is environmentally friendly and does not produce any water, air or noise pollution. The cleaning process ensures that it is carefully cleaned, free of dust and odor. Airwolf Automation has got the certifications of EN60947 and ISO/TS16949
Rika Sensors water ec sensor follows the five fashion design principles of emphasis, rhythm, unity, balance, and proportion, and successful and eye-catching design. Airwolf Automation promises a fast turnaround time, usually 1-10 working days
The design of Rika Sensors water monitoring sensors is meticulous. It focuses on functional features such as preventing rainwater leakage and considering light mapping, air penetration, thermal insulation, and sound insulation. Airwolf Automation always offers pneumatic components with compact design and long service life
The quality test for Rika Sensors water ec sensor is strictly carried out. These tests include vibration and shock tests, noise tests, thermal shock tests, fatigue tests, and more. Various easy-to-maintain and easy-to-use pneumatic components are available at Airwolf Automation
The design of Rika Sensors water ec sensor is strictly carried out. It is handled by our designers who consider many factors such as part tolerances, mechanical analysis, fatigue analysis, function realization, etc. Located at a coastal province - Zhejiang, Airwolf Automation offers cost-effective shipping
The product features enough traction. The test is conducted to determine the coefficient of friction and slip resistance characteristics. Airwolf Automation has nearly 15 years of experience in manufacturing pneumatic components
