PRODUCT DESCRIPTION

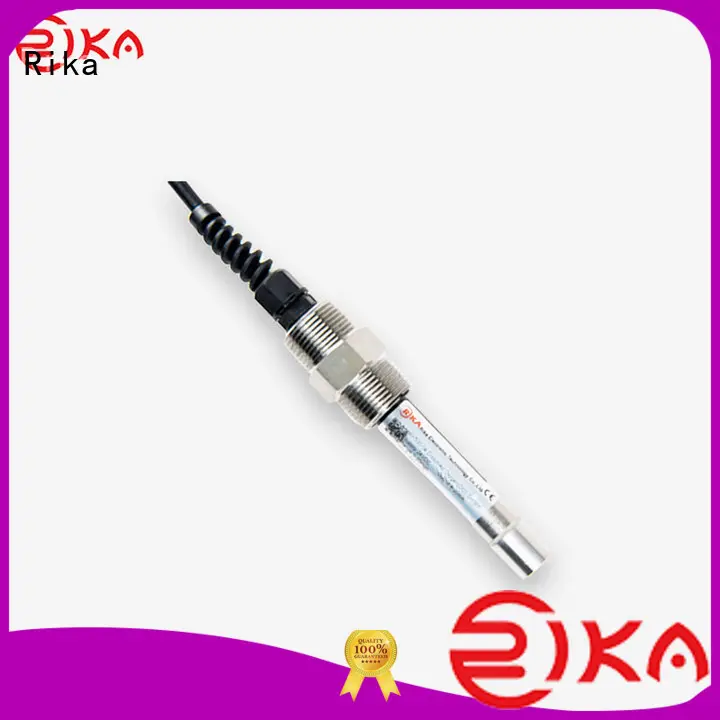

RK500-04 Dissolved Oxygen(DO) Sensor design based on the principle of fluorescence and high performance through oxygen membrane, with short response time, measurement accuracy, stable performance, etc. It can be widely used in chemical fertilizer, metallurgy, environmental protection water treatment engineering, pharmaceutical, biochemical, food, aquaculture and water such as continuous monitoring of dissolved oxygen in the solution.

perfect water monitoring sensors solution provider for dissolved oxygen, SS,ORP/Redox monitoring-1

perfect water monitoring sensors solution provider for dissolved oxygen, SS,ORP/Redox monitoring-2

SPECIFICATIONS

Item	Technical Specification
	DO	Temperature
Range	0-20mg/L(ppm)	0-60℃
Accuracy	±0.5%FS	±0.5℃
Resolution	0.01mg/L	0.1℃
Supply	12VDC,24VDC
Temperature compensation	0-60℃
Output	RS485
Measuring principle	Fluorescence
Maintenance	Every 1year to replace fluorescent cap
Response time	<60s
Pressure Resistance	0.3MPa
Power consumption	<0.4W
Operating Temperature	0-+80℃
Probe material	General: 316L
Dimension	Φ16*125mm
Weight(probe)	0.7kg
Ingress Protection	IP68
Storage	10-60℃@20%-90%RH
Cable length	5m default, other length customizable

PRODUCT DETAILS

perfect water monitoring sensors solution provider for dissolved oxygen, SS,ORP/Redox monitoring-8

perfect water monitoring sensors solution provider for dissolved oxygen, SS,ORP/Redox monitoring-9 Product Principle

perfect water monitoring sensors solution provider for dissolved oxygen, SS,ORP/Redox monitoring-10

perfect water monitoring sensors solution provider for dissolved oxygen, SS,ORP/Redox monitoring-11 Material

PRODUCT APPLICATION

perfect water monitoring sensors solution provider for dissolved oxygen, SS,ORP/Redox monitoring-12

Agricultural Irrigation

perfect water monitoring sensors solution provider for dissolved oxygen, SS,ORP/Redox monitoring-13
