perfect wind direction gauge manufacturer for industrial applications

Perfect wind direction gauge manufacturer for industrial applications

Model:
RK100-02
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

PRODUCT DESCRIPTION

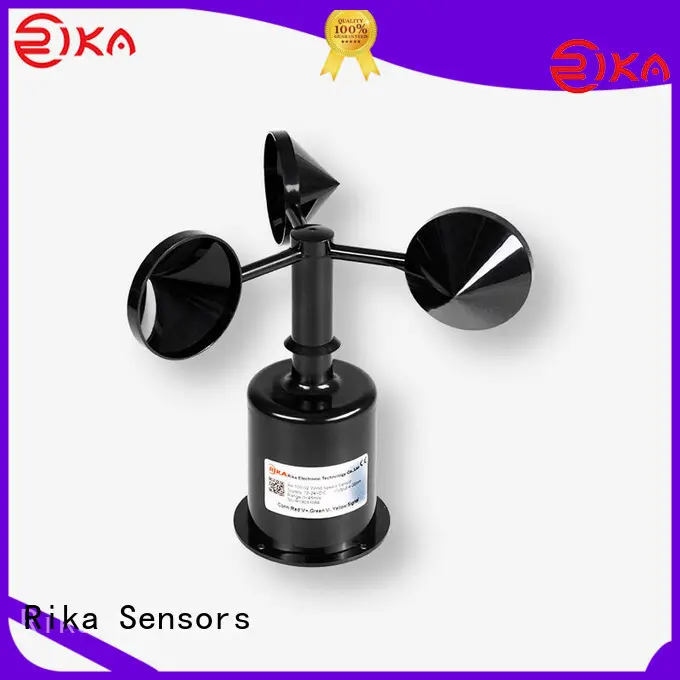

The RK100-02 Wind Speed Sensor uses a sensitive 3-cup anemometer designed to measure wind speed and wind run. The cups are made of carbon fiber material, with high intensity and low starting threshold. The signal processing units are built in the housing shell. Rika RK100-02 3 cup anemometer can be widely used in meteorology, marine, environmental monitoring, airport, harbor, laboratory, industrial and agricultural areas.

perfect wind direction gauge manufacturer for industrial applications-1

SPECIFICATIONS

Rika RK100-02 wind speed sensor features

Output

Pulses

4-20mA

0-5V

RS485

Supply voltage

5V, 12V-24V

5V, 12V-24V

5V, 12V-24V

5V, 12V-24V

Load capacity

>1kΩ

<500Ω(typ 250Ω)

>1kΩ


Range

0-45m/s

0-45m/s

0-45m/s

0-45m/s

Accuracy

±(0.3+0.03V)m/s; (V is the current wind speed)

Starting threshold

<0.5m/s

Limit wind speed

50m/s

Ingress protection

IP65

Operating temperature

-40℃ ~ +50℃

Cable grade

Nominal voltage: 300V, Temperature grade: 80℃

Weight(unpacked)

170g

Dimension

Cup rotor: 179mm, Height: 160mm

Main material

Carbon fiber

Storage condition

10℃-50℃@20%-90%RH

DIMENSION & MOUNTING

Rika RK100-02 3-cup anemometer size

PRODUCT FUNCTION

perfect wind direction gauge manufacturer for industrial applications-11
perfect wind direction gauge manufacturer for industrial applications-12
perfect wind direction gauge manufacturer for industrial applications-13

PRODUCT APPLICATION





The selection of wind direction gauge depends on the quality of wind direction gauge to a large extent. The product adopts a highly efficient feeding platform
If you can provide drawing for wind direction gauge, Hunan Rika Electronic Tech Co.,Ltd can design and develop for you based on your requirements. It can run at a very high speed
The increasing notability of wind direction gauge can not be achieved without the unique design. The product can process items in a large quantity
wind direction gauge come in all shape and size. The product ensures stable and reliable performance
As our wind direction gauge are made of wind direction gauge, they are both high quality and refined. The product is not easy to rust and is highly resistant to harsh conditions
The product has satisfying functions that customers need and require. The product is not easy to rust and is highly resistant to harsh conditions
