Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

perfect wind monitoring solution provider for wind spped monitoring

Payment:

T/T, L/C or Paypal

MOQ:

1PCS

Model:

RK120-01C

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

PRODUCT DESCRIPTION

perfect wind monitoring solution provider for wind spped monitoring 2

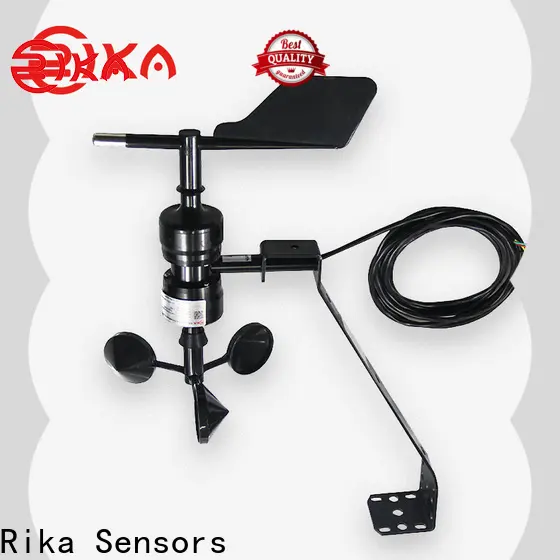

RK120-01C Combined Wind Speed & Direction Sensor is assembled with aluminum alloy precision machined parts, which has high strength and convenient installation.The wind speed part adopts the traditional three-wind cup structure, the wind cup is made of carbon fiber material, the starting performance is good, the measuring range is large, the linearity is good, stable and reliable.The wind direction part adopts low inertia wind direction to respond to the wind direction. When the wind direction changes, the tail wheel drives the angle sensor to sense the azimuth change, thereby generating a change of electrical signal output, good linearity, high precision, and no blind zone.

perfect wind monitoring solution provider for wind spped monitoring 3

Low starting threshold.

Overall carbon fiber material.

Strong corrosion resistant ability.

Light structure.

Various output signals optional.

Easy Installation.

SPECIFICATIONS

Item	Technical Specification
	Wind speed	Wind direction
Range	0-45m/s(current or voltage ouput); 0-70m/s(pulse,RS485,RS232 output)	0-360°
Resolution	0.1m/s	1°
Accuracy	±(0.3+0.03V)m/s ,V is current wind speed	≤±3°
Acquisition Cycle	3s
Starting wind speed	0.5m/s
Limited wind speed	75m/s
Supply	5V(only for digital output),12-24VDC
Output Signal	RS485,4-20mA,0-5V,RS232,pulse(NPN,only for wind speed)
Operating Temperature	-40℃-+70℃
Ingress Protection	IP65
Main material	Aluminum alloy and carbon fiber Cups:PA, reinforced with carbon fibre, black Vane:PA, reinforced with fiberglass, white



Storage	10-60℃@20%-90%RH
Cable length	Default 2.5m,other length is optional
Installation bracket	attached
Weight(unpacked)	700g

DIMENSION & MOUNTING

Unit:mm

PRODUCT DETAILS

perfect wind monitoring solution provider for wind spped monitoring 12

perfect wind monitoring solution provider for wind spped monitoring 13 Product Principle & Output

perfect wind monitoring solution provider for wind spped monitoring 14

perfect wind monitoring solution provider for wind spped monitoring 15 Product Material

PRODUCT MOUNTING

perfect wind monitoring solution provider for wind spped monitoring 16

PRODUCT APPLICATION

Farming Weather Stations

Greenhouse Weather Station

Agricultural Meteoroiogical Station

Metereological Monitoring For Expressway

Metereological Monitoring For High-altitude Facility

Metereological Monitoring For Seaport

Weather Monitoring For Power Generating

Wind Speed Sensor & Wind Direction Sensor

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
