Company Advantages
1. The fibre of Rika Sensors must be inspected strictly before it leaves the factory. The fibre must be evaluated in terms of strength, tensile strength, gram weight and feel. This product has a high level of IP65
2. This product is usually very decorative and has almost unlimited colors and styles to choose from. Users can look forward to a nice bedroom with this product. Its housing parts are made of UV-stabilized thermoplastic
3. This product has such features as lightweight, high compressive strength and load-carrying capacity. And it is strong enough to bear rough handling. This product allows for an easy installation

Company Features
1. Hunan Rika Electronic Tech Co.,Ltd 's advanced technology and sophisticated production ensure product quality and customer interests.
2. Our mission is to implement market diversification. We will seek practical approaches to sell to multiple markets so as to allow us to diversify our business, spread our risk, and we will not be tied to the changes in the business cycle of the fixed market.

PRODUCT DESCRIPTION

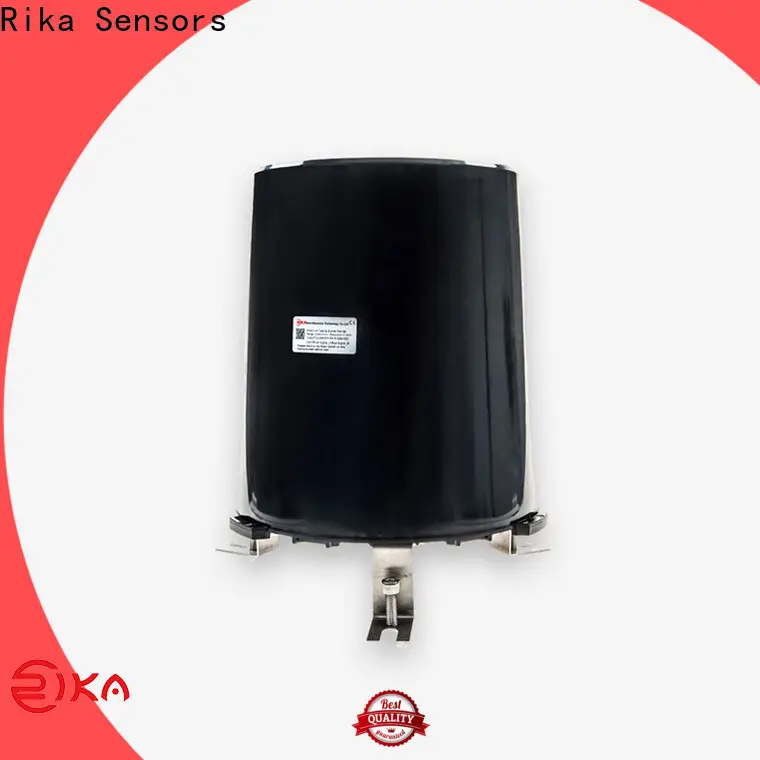

RK400-04 Economical Tipping Bucket Rainfall Sensor is a hydrology, meteorological instrument used to measure the nature of rainfall, and it converts the precipitation into a pulse signal output. Designed with insect-proof nets, free blocking nozzle and built-in leveller. The model can be used in meteorology, hydrology, agriculture, forestry, field monitoring stations and other industries. Combined with rainfall recorder can be used to measure measure precipitation, precipitation intensity, precipitation time.

professional how to read a rain gauge factory for agriculture-1

professional how to read a rain gauge factory for agriculture-2

Compact size for easy use.

professional how to read a rain gauge factory for agriculture-3

Auto-heating function.

professional how to read a rain gauge factory for agriculture-4

High accuracy.

professional how to read a rain gauge factory for agriculture-5

High accuracy.

professional how to read a rain gauge factory for agriculture-6

Stainless steel Construction.

professional how to read a rain gauge factory for agriculture-7

Outlet with insect-proof.

SPECIFICATIONS

Item	Specification
Collector	Diameter :φ200mm, height: 271mm
Measured rainfall intensity	Max: 4mm/min
Allow rainfall intensity	Max: 8mm/min
Resolution	0.2mm
Accuracy(2mm/min)	±4%
Maximum load voltage	30VDC(pulse output)
Maximum load current	20mA
Output	Pulses(@10kΩ&0.01uF),RS485(12-24VDC supply)
Operating temperature	0-60℃@0%-100%RH
Weight(unpacked)	Rainfall collector & tipping bucket: ABS, Supporting leg:304SS
Weight(unpacked)	2kg

WORKING PROCESS DIMENSION & MOUNTING

DIMENSION & MOUNTING

Adjust the balance foot screws to ensure that it is in a horizontal position.Using three fastening screws to fix this three support legs at the platform to keep the entire apparatus at an optimum level , which ensure the accuracy of rainfall data.

professional how to read a rain gauge factory for agriculture-8

WORKING PROCESS

Rainfall is captured in the 200mm diameter collector funnel and is directed through a delivery pipe to fill a divided ABS injection molded tipping bucket device.The bucket is pivoted through its center and has a preset calibration to tip for 0.2 mm of rainfall. When the bucket is “full”, it pivots and empties - this action magnetically closes and opens a reed switch, sending a pulse signal to the data logger or electronic counter. Through this tipping “seesaw” action, the other side of the bucket is aligned to receive the flow from the delivery pipe. This recording and tipping cycle continues with rainfall.

PRODUCT DETAILS

professional how to read a rain gauge factory for agriculture-9

professional how to read a rain gauge factory for agriculture-10 Product Principle

professional how to read a rain gauge factory for agriculture-11

professional how to read a rain gauge factory for agriculture-12 Material

professional how to read a rain gauge factory for agriculture-13

professional how to read a rain gauge factory for agriculture-14 Leaf Filter

professional how to read a rain gauge factory for agriculture-15

professional how to read a rain gauge factory for agriculture-16 Horizontal Adjustment

PRODUCT APPLICATION

professional how to read a rain gauge factory for agriculture-17

b******c

The raw materials of Rika Sensors how to read a rain gauge are carefully selected from our reliable suppliers. These quality materials meet with customer's requirements and strict regulatory requirements. Its super long life makes it a worthwhile investment and a smart long-term solution

h******c

Innovative design concept: the design concept of Rika Sensors how to read a rain gauge is put forward and completed by a team of designers who are full of innovative design ideas. These ideas not only meet the industrial standards but cater to the market demands. Its fast charging ability help minimize downtime

e******w

Rika Sensors how to read a rain gauge has been greatly paid attention from the beginning of the development stage. It is well-developed by the professional R&D team with deep consideration. This product stands out for its high energy density

f******k

Produced by the combination of sophisticated technology and skilled worker, Rika Sensors how to read a rain gauge is exquisite in every detail. The load characteristics of this product are reasonably good

j******b

With the assistance of skilled professionals, the production of Rika Sensors how to read a rain gauge is carried out according to the principles of lean production. This product merely requires little maintenance

b******x

Based on the use of automated mechanical production equipment, our production efficiency has been greatly improved, and we can produce a large number of high-quality how to read a rain gauge in a timely manner. In addition, we have also established a strict cost control system, and insist on strictly controlling the production cost of each link , prompting the production of how to read a rain gauge to be extremely cost-effective.
