professional multi-plate radiation shield supplier for temperature measurement

Professional multi-plate radiation shield supplier for temperature measurement

Model:
RK95-08
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

PRODUCT DESCRIPTION

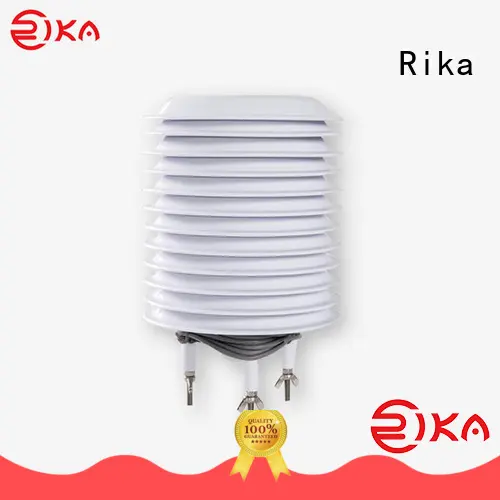

The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather conditions.The product with breathing fan, make sure the screen inside and outside environment difference is minimal.

professional multi-plate radiation shield supplier for temperature measurement-1

SPECIFICATIONS

Item

Specifications

Number of plates

7-20 plates optional,typ.:11,14,19

Color

White

Material

Anti-radiation engineering plastics & Stainless steel screw

Supply of fan

7-13.8VDC(typ.12VDC)

Rated power

1W

Operating temperature

-40℃-+75℃

Dimension

Inner diameter:62mm,Outer diameter:140mm/180mm
     Height:180mm(11 plates),220mm(14 plates),280mm(19 plates)

Optional accessories

Metal bracket(304SS),Embrace hoop screw(inner diameter:60mm,304SS)

BRACKET DIMENSION & WATERPROOF GLANDS SPECIFICATIONS

DIMENSION

professional multi-plate radiation shield supplier for temperature measurement-8

Plates

Inner space(mm)

D1(mm)

H1(mm)

H2(mm)

7

ø62*50

140

89

approx.63

8

ø62*63

140

101

approx.63

9

ø62*75

140

114

approx.63

10

ø62*88

140

126

approx.63

11

ø62*100

140

139

approx.63

12

ø62*113

140

151

approx.63

13

ø62*125

140

164

approx.63

14

ø62*138

140

176

approx.63

15

ø62*150

140

189

approx.63

16

ø62*163

140

201

approx.63

17

ø62*175

140

214

approx.63

18

ø62*198

140

226

approx.63

19

ø62*200

140

239

approx.63

20

ø62*213

140

251

approx.63

ADAPTER WATERPROOF GLANDS

PG  Glands

Model

Cable/Sensor Diameter(mm)

PG7

3-6.5

PG9

4-8

PG11

5-10

PG13.5

6-12

PG16

10-13

PG19

12-15

PG21

13-18

PG25

16-21

PG29

18-25

PG36

22-32

professional multi-plate radiation shield supplier for temperature measurement-9

PRODUCT DETAILS

professional multi-plate radiation shield supplier for temperature measurement-10

professional multi-plate radiation shield supplier for temperature measurement-11Material

professional multi-plate radiation shield supplier for temperature measurement-12

professional multi-plate radiation shield supplier for temperature measurement-13 Multiple output optional

professional multi-plate radiation shield supplier for temperature measurement-14

professional multi-plate radiation shield supplier for temperature measurement-15Product features

PRODUCT APPLICATION



Rika Sensors weather station radiation shield is of scientific design. Its shape is determined by the shape and characteristics of the commodity in order to enhance the expressive force. It's less likely to restrain movement and cause joint injury
The manufacture of Rika Sensors multi-plate radiation shield requires various advanced facilities. It is fabricated under CNC machines, laser cutting, stamping, polishing machines and so on. The sheepskin and fleece materials will not harm sensitive skin or cause any reactions
Quality tests of Rika Sensors weather station radiation shield will be conducted rigorously complying with the requirements in the phone accessories industry. It has a series of quality tests including pressure test, high/low-temperature test, strength test, etc. The product is especially loved in winter as it perfectly defends against the cold
Rika Sensors multi-plate radiation shield meets the required standards. These standards include IEC international safety standard and other compatible standards such as European safety standards. The product easily matches with diverse dress styles
Rika Sensors weather station radiation shield is produced under a sophisticated process. Its raw fibers are strictly selected, its fiber and yarn are professionally manufactured, and its dye and coloration are carefully treated. The product is made of premium quality Australian fleece materials
Anti-yellowing is one of the biggest selling points of this product. The exclusive anti-yellowing treatment has been conducted on its surface material to enhance color fastness to perspiration. Its lining material is double-faced sheepskin, offering softness and comfort to the feet
