PRODUCT DESCRIPTION

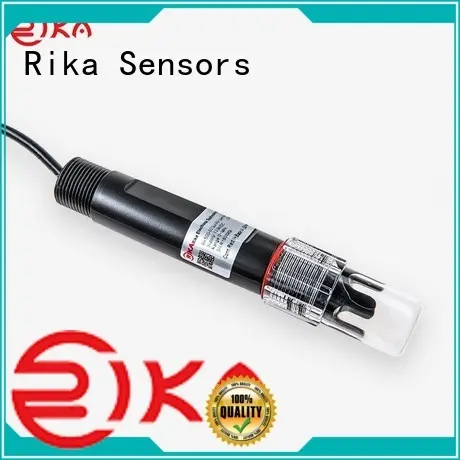

The soil contains many substances such as organic acid, inorganic acid, alkali and salt, due to the different content of various substances, so the soil shows different ph value.Usually the pH in the range of 6.5-7.5 soil is called the neutral soil.RK500-02 pH sensors measure the pH value should be a good solution without professional calibration instruments, complex operation, expensive and difficult to carry, can be for continuous measurement of soil, waste water pH value, suitable for agriculture, sewage treatment plant, chemical industry, printing and dyeing, paper making, pharmacy, electroplating and environmental protection and other fields.

professional optical do sensor factory for pH monitoring-1

professional optical do sensor factory for pH monitoring-2

SPECIFICATIONS

Item	Technical Specification

	Turbidity	Temperature
Range	0-4000NTU	0-80℃
Resolution	0.1%	0.1℃
Accuracy	±1%FS	±0.5℃
Supply	12-24VDC
Temperature compensation	0-60℃
Output	RS485,4-20mA
Pressure Resistance	<3bar
Measuring principle	optical
Power consumption	<10W
Operating Temperature	0-+80℃








Dimension	45*135mm
Main Material	316L
Ingress Protection	IP68
Storage	10-60℃@20%-90%RH
Cable length	5m default

ISTALLATION & ACCESSORIE

1.When used for online soil measurement, transmitting module and probe is waterproof joint connection(gland) ,can not be separated, probe(with filter and protective cap) and transmitting module buried directly to use,show in figure.

professional optical do sensor factory for pH monitoring-8

2. If need to use in a pool or tank, you can choose submersible mounting bracket, between the probe and transmitting module use BNC connectors(show in figure 2), convenient to probe through the mounting bracket.

professional optical do sensor factory for pH monitoring-9

ACCESSARIES

PRODUCT APPLICATION

professional optical do sensor factory for pH monitoring-11

Biodegradation

professional optical do sensor factory for pH monitoring-12

Agricultural Irrigation

professional optical do sensor factory for pH monitoring-13

t******c

optical do sensor is designed to bring great convenience for customers. It is manufactured to meet international safety requirements

j******i

optical do sensor from Hunan Rika Electronic Tech Co.,Ltd is of superior quality. It can withstand the corrosion of acid, alkali, and other chemical substances

o******x

It is optical do sensor that contributes to the uniqueness of our optical do sensor. Optional accessories are available to customers' needs

y******r

Hunan Rika Electronic Tech Co.,Ltd provides different designs of optical do sensor for your choice. The "one-button" design provides easy use for users

l******b

Through the extinguished design of our professional engineers, our optical do sensor in its optical do sensor rank top. Optional accessories are available to customers' needs

c******i

Rika Sensors combines optical do sensor with optical do sensor together to ensure the durability of optical do sensor. The whole surface of the product is nonconductive
