Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika accurate rain gauge supplier for measuring rainfall amount

Payment:

T/T, L/C or Paypal

OEM/ODM:

Available

MOQ:

2 PCS

Model:

RK400-01

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

Application Scope

The environmental sensor produced by Rika Sensors is very popular in the market and is widely used in Manufacturing Environmental Protection Waste Treatment Environmental Products industry.Rika Sensors is dedicated to providing professional, efficient and economical solutions for customers, so as to meet their needs to the greatest extent.

Product Comparison

environmental sensor is in line with the stringent quality standards. The price is more favorable than other products in the industry and the cost performance is relatively high.Rika Sensors's environmental sensor has better performances in the following aspects.

PRODUCT DESCRIPTION

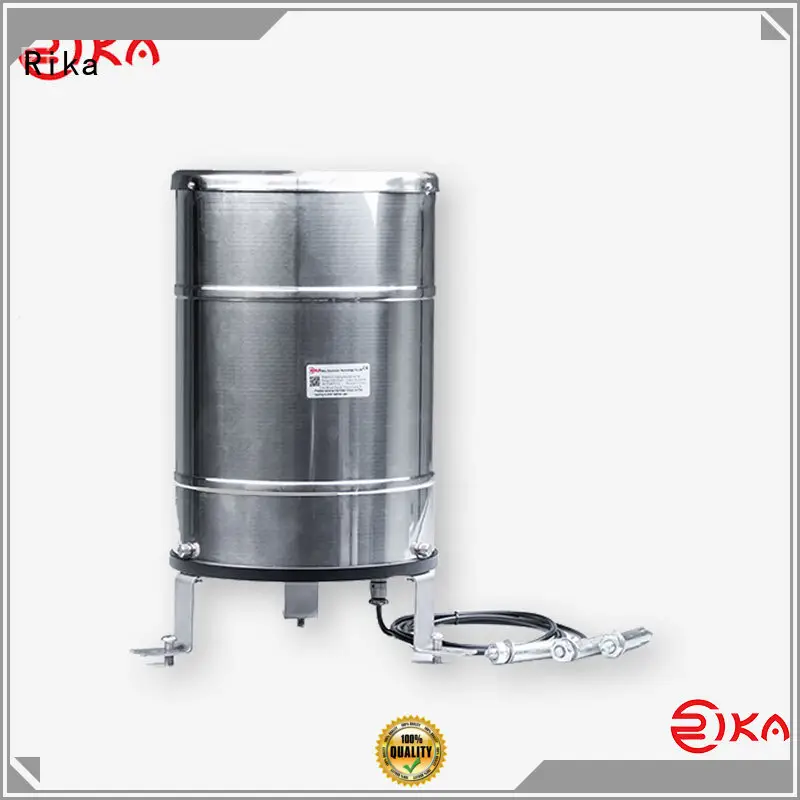

The RK400-01 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. It can be widely used in weather stations, hydrometric stations, agriculture & forestry, defense & field monitoring stations. It can provide the original data for flood-prevention, water-supply system, and reservoir water management in plant.

Rika accurate rain gauge supplier for measuring rainfall amount 5

Compact size for easy use.

Auto-heating function.

Excellent stability.

High accuracy.

Stainless steel Construction.

Outlet with insect-proof.

SPECIFICATIONS

Item	Specification
Rainfall collector	Diameter :φ200mm, height: 350mm
Measured rainfall intensity	Max: 4mm/min
Allow rainfall intensity	Max: 10mm/min
Resolution	0.1mm, 0.2mm
Accuracy(2mm/min)	±4%
Maximum load voltage	30VDC(pulse output)
Maximum load current	20mA(pulse output)
Output	Reed switch pulses,RS485(12-24VDC supply)
Operating temperature(no freeze)	-20-+80℃
Main material	Collector:304SS,tipping bucket:ABS
Tipping bucket	Single
Heating(optional)	Heating power: approx.350W Heating voltage:220VAC
Collector filter	Removable filter (prevent leaves and sundries)optional
Weight(unpacked)	3.5kg

WORKING PROCESS & DIMENSION

Rainfall is captured in the 200mm diameter collector funnel and is directed through a delivery pipe to fill a divided ABS injection molded tipping bucket device.The bucket is pivoted through its center and has a preset calibration to tip for 0.2 mm of rainfall. When the bucket is “full”, it pivots and empties - this action magnetically closes and opens a reed switch, sending a pulse signal to the data logger or electronic counter. Through this tipping “seesaw” action, the other side of the bucket is aligned to receive the flow from the delivery pipe. This recording and tipping cycle continues with rainfall.

Rika accurate rain gauge supplier for measuring rainfall amount 12

Unit:mm

PRODUCT DETAILS

Rika accurate rain gauge supplier for measuring rainfall amount 14

Rika accurate rain gauge supplier for measuring rainfall amount 15 Product Principle & Material

Rika accurate rain gauge supplier for measuring rainfall amount 16

Rika accurate rain gauge supplier for measuring rainfall amount 17 Product Feature

Rika accurate rain gauge supplier for measuring rainfall amount 18

Rika accurate rain gauge supplier for measuring rainfall amount 19 Product Feature

PRODUCT APPLICATION

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
