 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika best rain measuring device industry for hydrometeorological monitoring 1
Rika best rain measuring device industry for hydrometeorological monitoring 1

Rika best rain measuring device industry for hydrometeorological monitoring

Payment:
T/T, L/C or Paypal
OEM/ODM:
Available
MOQ:
2 PCS
Model:
RK400-01
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry
Product Details
Rika Sensors pays great attention to details of environmental monitoring.Rika Sensors has professional production workshops and great production technology. environmental monitoring we produce, in line with the national quality inspection standards, has reasonable structure, stable performance, good safety, and high reliability. It is also available in a wide range of types and specifications. Customers' diverse needs can be fully fulfilled.
  • Rika best rain measuring device industry for hydrometeorological monitoring 2
Enterprise Strength
  • Rika Sensors persists in the principle of 'users are teachers, peers are the examples'. We have a group of efficient and professional personnel to provide high-quality services for customers.


PRODUCT DESCRIPTION

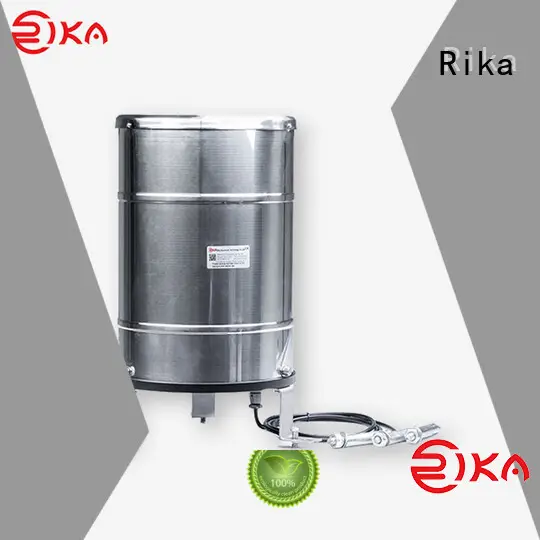

The RK400-01 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. It can be widely used in weather stations, hydrometric stations, agriculture & forestry, defense & field monitoring stations. It can provide the original data for flood-prevention, water-supply system, and reservoir water management in plant.

Rika best rain measuring device industry for hydrometeorological monitoring 3

SPECIFICATIONS

Item

Specification

Rainfall collector

Diameter :φ200mm, height: 350mm

Measured rainfall intensity

Max: 4mm/min

Allow rainfall intensity

Max: 10mm/min

Resolution

0.1mm, 0.2mm

Accuracy(2mm/min)

±4%

Maximum load voltage

30VDC(pulse output)

Maximum load current

20mA(pulse output)

Output

Reed switch pulses,RS485(12-24VDC supply)

Operating temperature(no freeze)

-20-+80℃

Main material

Collector:304SS,tipping bucket:ABS

Tipping bucket

Single

Heating(optional)

Heating power: approx.350W
     Heating voltage:220VAC

Collector filter

Removable filter (prevent leaves and sundries)optional

Weight(unpacked)

3.5kg

WORKING PROCESS & DIMENSION

PRODUCT DETAILS

Rika best rain measuring device industry for hydrometeorological monitoring 12

Rika best rain measuring device industry for hydrometeorological monitoring 13Product Principle & Material

Rika best rain measuring device industry for hydrometeorological monitoring 14

Rika best rain measuring device industry for hydrometeorological monitoring 15 Product Feature

Rika best rain measuring device industry for hydrometeorological monitoring 16

Rika best rain measuring device industry for hydrometeorological monitoring 17Product Feature

PRODUCT APPLICATION



Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
