 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika dust sensor factory for air quality monitoring 1
Rika dust sensor factory for air quality monitoring 1

Rika dust sensor factory for air quality monitoring

Payment:
T/T, L/C or Paypal
OEM/ODM:
Available
MOQ:
2 PCS
Model:
RK300-01
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry
Product Comparison
Rika Sensors pays great attention to integrity and business reputation. We strictly control the quality and production cost in the production. All these guarantee weather sensors to be quality-reliable and price-favorable.Rika Sensors's weather sensors has better quality than other products in the industry, which is specifically shown in the following aspects.
  • Rika dust sensor factory for air quality monitoring 2
    Rika dust sensor factory for air quality monitoring 3
Application Scope
The weather sensors produced by Rika Sensors has a wide range of applications.Rika Sensors always adheres to the service concept to meet customers' needs. We are committed to providing customers with one-stop solutions that are timely, efficient and economical.
  • Rika dust sensor factory for air quality monitoring 4

PRODUCT DESCRIPTION

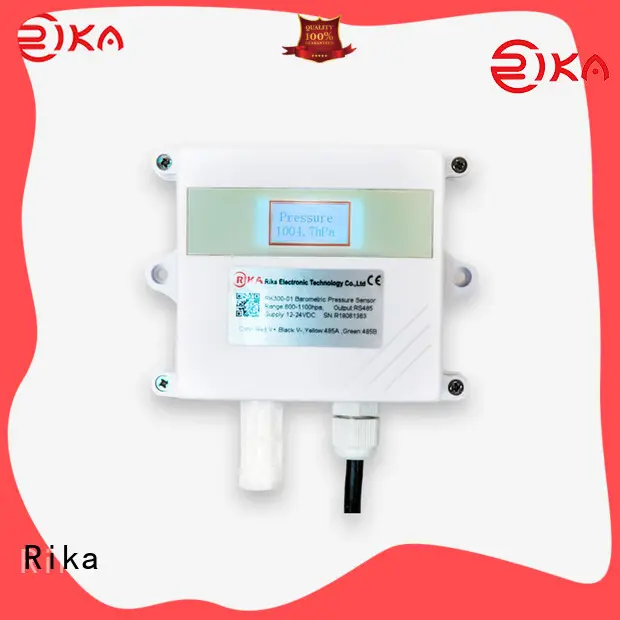

RK300-01 Wall-mounted Barometric Pressure Sensor with small size, reliable performance, high precision, long transmission distance, strong anti-jamming capability,which is widely used in meteorology, marine, environment, airports, ports, laboratory, agricultural and transportation and other fields.

Rika dust sensor factory for air quality monitoring 5

SPECIFICATIONS

Item

Technical Specification

Range

600-1100hPa(mbar)

Resolution

0.1hPa

Accuracy

±0.5hPa

Temperature Drift

≤0.02%FS/℃

Response Time

<1s

Supply

5VDC, 12-24VDC

Output Signal

RS485, 4-20mA, 0-5V, 0-10V optional

Operating Temperature

-40℃-+75℃

Ingress Protection

IP65

Storage

10-60℃@20%-90%RH

Dimensions

117 *86*40 mm

Weight(unpacked)

100g

DIMENSION & MOUNTING

Rika dust sensor factory for air quality monitoring 12

1. Install the product in stable environment area, avoid direct sunlight, away from windows air-conditioning, heating and other equipment. Otherwise it will cause atmospheric pressure measurement inaccuracies.

2. It is recommended to install in the cabinet open to the atmosphere,for example: instrument shelter

PRODUCT DETAILS

Rika dust sensor factory for air quality monitoring 13

Rika dust sensor factory for air quality monitoring 14Product Principle & Material

Rika dust sensor factory for air quality monitoring 15

Rika dust sensor factory for air quality monitoring 16 Product Features

Rika dust sensor factory for air quality monitoring 17

Rika dust sensor factory for air quality monitoring 18Multiple Output Optional

Rika dust sensor factory for air quality monitoring 19

Rika dust sensor factory for air quality monitoring 20 Connection & Installation

PRODUCT APPLICATION
