 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika giant rain gauge factory 1
Rika giant rain gauge factory 1

Rika giant rain gauge factory

Payment:
T/T, L/C or Paypal
OEM/ODM:
Available
MOQ:
2 PCS
Model:
RK400-01
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry
Product Comparison
Rika Sensors is certified by various qualifications. We have advanced production technology and great production capability. environmental sensor has many advantages such as reasonable structure, excellent performance, good quality, and affordable price.Compared with products in the same category, Rika Sensors's environmental sensor has the following outstanding features.
  • Rika giant rain gauge factory 2
    Rika giant rain gauge factory 3

PRODUCT DESCRIPTION

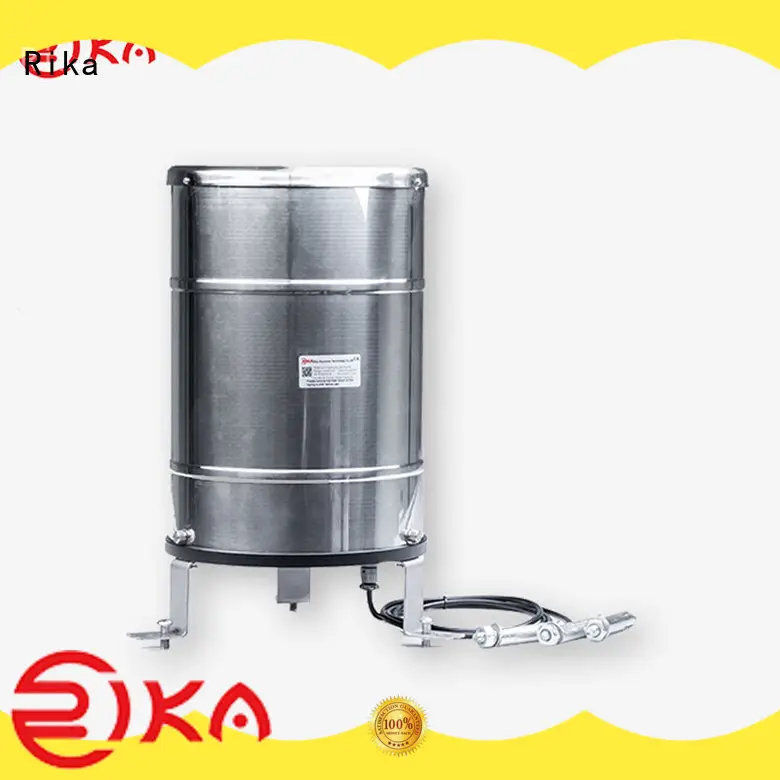

The RK400-01 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. It can be widely used in weather stations, hydrometric stations, agriculture & forestry, defense & field monitoring stations. It can provide the original data for flood-prevention, water-supply system, and reservoir water management in plant.

Rika giant rain gauge factory 4

SPECIFICATIONS

Item

Specification

Rainfall collector

Diameter :φ200mm, height: 350mm

Measured rainfall intensity

Max: 4mm/min

Allow rainfall intensity

Max: 10mm/min

Resolution

0.1mm, 0.2mm

Accuracy(2mm/min)

±4%

Maximum load voltage

30VDC(pulse output)

Maximum load current

20mA(pulse output)

Output

Reed switch pulses,RS485(12-24VDC supply)

Operating temperature(no freeze)

-20-+80℃

Main material

Collector:304SS,tipping bucket:ABS

Tipping bucket

Single

Heating(optional)

Heating power: approx.350W
     Heating voltage:220VAC

Collector filter

Removable filter (prevent leaves and sundries)optional

Weight(unpacked)

3.5kg

WORKING PROCESS & DIMENSION

PRODUCT DETAILS

Rika giant rain gauge factory 13

Rika giant rain gauge factory 14Product Principle & Material

Rika giant rain gauge factory 15

Rika giant rain gauge factory 16 Product Feature

Rika giant rain gauge factory 17

Rika giant rain gauge factory 18Product Feature

PRODUCT APPLICATION


Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
