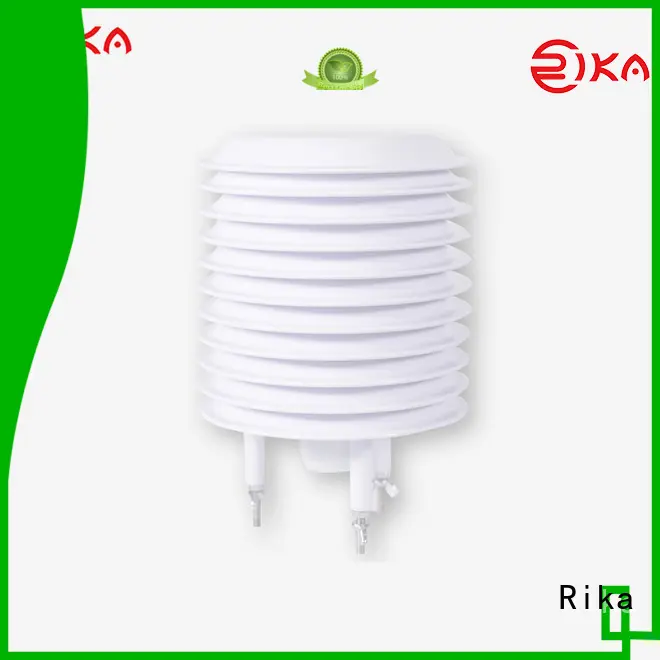

Rika good quality weather station radiation shield industry for temperature measurement

Rika good quality weather station radiation shield industry for temperature measurement

Model:
RK95-01
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika good quality weather station radiation shield industry for temperature measurement
Enterprise Strength
  • Rika Sensors is dedicated to providing quality services to meet the needs of customers.

PRODUCT DESCRIPTION

The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather conditions.

Rika good quality weather station radiation shield industry for temperature measurement-1

SPECIFICATIONS

Item

Specifications

Number of plates

4 -20 plates optional,typ.:11,14,19

Color

White

Material

Anti-radiation ABS engineering plastics & Stainless steel screw

Operating temperature

-40℃-+75℃

Dimension

Inner diameter:62mm,Outer diameter:140mm/180mm
     Height:180mm(11 plates),220mm(14 plates),280mm(19 plates)

Optional accessories

Metal bracket(304SS),Embrace hoop screw(inner diameter:60mm,304SS)

BRACKET DIMENSION & WATERPROOF GLANDS SPECIFICATIONS

DIMENSION

Rika good quality weather station radiation shield industry for temperature measurement-8

Plates

Inner space(mm)

D1(mm)

H1(mm)

H2(mm)

4

ø62*45

140

51

approx.55

5

ø62*57

140

64

approx.55

6

ø62*70

140

76

approx.55

7

ø62*82

140

89

approx.55

8

ø62*95

140

101

approx.55

9

ø62*107

140

114

approx.55

10

ø62*120

140

126

approx.55

11

ø62*132

140

139

approx.55

12

ø62*145

140

151

approx.55

13

ø62*157

140

164

approx.55

14

ø62*170

140

176

approx.55

15

ø62*182

140

189

approx.55

16

ø62*195

140

201

approx.55

17

ø62*207

140

214

approx.55

18

ø62*220

140

226

approx.55

19

ø62*232

140

239

approx.55

20

ø62*245

140

251

approx.55

ADAPTER WATERPROOF GLANDS

PG  Glands

Model

Cable/Sensor Diameter(mm)

PG7

3-6.5

PG9

4-8

PG11

5-10

PG13.5

6-12

PG16

10-13

PG19

12-15

PG21

13-18

PG25

16-21

PG29

18-25

PG36

22-32

Rika good quality weather station radiation shield industry for temperature measurement-9

PRODUCT DETAILS

Rika good quality weather station radiation shield industry for temperature measurement-10

Rika good quality weather station radiation shield industry for temperature measurement-11Enhanced UV resistance plastic

Rika good quality weather station radiation shield industry for temperature measurement-12

Rika good quality weather station radiation shield industry for temperature measurement-13 Plates quantity

Rika good quality weather station radiation shield industry for temperature measurement-14

Rika good quality weather station radiation shield industry for temperature measurement-15Support & Mounting

Rika good quality weather station radiation shield industry for temperature measurement-16

Rika good quality weather station radiation shield industry for temperature measurement-17Connectors for sensors
