 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika great electronic rain gauge solution provider for measuring rainfall amount 1
Rika great electronic rain gauge solution provider for measuring rainfall amount 1

Rika great electronic rain gauge solution provider for measuring rainfall amount

Payment:
T/T, L/C or Paypal
OEM/ODM:
Available
MOQ:
2 PCS
Model:
RK400-01
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry
Application Scope
Rika Sensors's environmental monitoring is of excellent quality and is widely used in the Manufacturing Environmental Protection Waste Treatment Environmental Products industry.Rika Sensors insists on providing customers with one-stop and complete solution from the customer's perspective.
  • Rika great electronic rain gauge solution provider for measuring rainfall amount 2
Product Comparison
Under the guidance of market, Rika Sensors constantly strives for innovation. environmental sensor has reliable quality, stable performance, good design, and great practicality.Compared with similar products, Rika Sensors's environmental sensor is more advantageous in the following aspects.
  • Rika great electronic rain gauge solution provider for measuring rainfall amount 3
    Rika great electronic rain gauge solution provider for measuring rainfall amount 4

PRODUCT DESCRIPTION

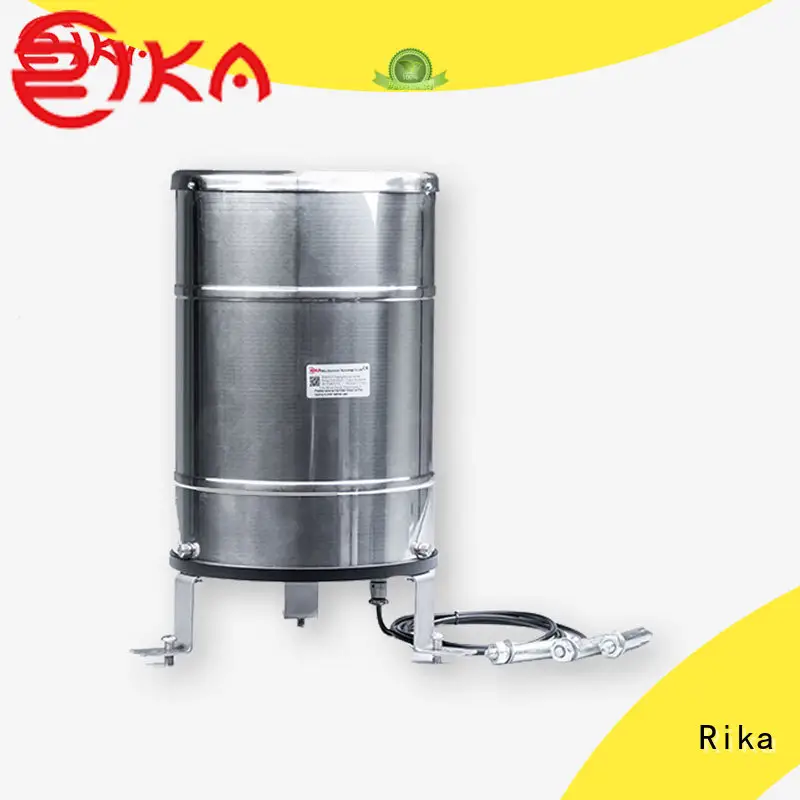

The RK400-01 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. It can be widely used in weather stations, hydrometric stations, agriculture & forestry, defense & field monitoring stations. It can provide the original data for flood-prevention, water-supply system, and reservoir water management in plant.

Rika great electronic rain gauge solution provider for measuring rainfall amount 5

SPECIFICATIONS

Item

Specification

Rainfall collector

Diameter :φ200mm, height: 350mm

Measured rainfall intensity

Max: 4mm/min

Allow rainfall intensity

Max: 10mm/min

Resolution

0.1mm, 0.2mm

Accuracy(2mm/min)

±4%

Maximum load voltage

30VDC(pulse output)

Maximum load current

20mA(pulse output)

Output

Reed switch pulses,RS485(12-24VDC supply)

Operating temperature(no freeze)

-20-+80℃

Main material

Collector:304SS,tipping bucket:ABS

Tipping bucket

Single

Heating(optional)

Heating power: approx.350W
     Heating voltage:220VAC

Collector filter

Removable filter (prevent leaves and sundries)optional

Weight(unpacked)

3.5kg

WORKING PROCESS & DIMENSION

PRODUCT DETAILS

Rika great electronic rain gauge solution provider for measuring rainfall amount 14

Rika great electronic rain gauge solution provider for measuring rainfall amount 15Product Principle & Material

Rika great electronic rain gauge solution provider for measuring rainfall amount 16

Rika great electronic rain gauge solution provider for measuring rainfall amount 17 Product Feature

Rika great electronic rain gauge solution provider for measuring rainfall amount 18

Rika great electronic rain gauge solution provider for measuring rainfall amount 19Product Feature

PRODUCT APPLICATION



Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
