Rika great how to read a rain gauge solution provider for measuring rainfall amount

Rika great how to read a rain gauge solution provider for measuring rainfall amount

Model:
RK400-04
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika great how to read a rain gauge solution provider for measuring rainfall amount
Product Comparison
environmental sensor, manufactured based on high-quality materials and advanced technology, has reasonable structure, excellent performance, stable quality, and long-lasting durability. It is a reliable product which is widely recognized in the market.Compared with products in the same category,Rika Sensors's environmental sensor's outstanding advantages are as follows.
Application Scope
The environmental monitoring produced by Rika Sensors is widely used in the Manufacturing Environmental Protection Waste Treatment Environmental Products industry.Rika Sensors has professional engineers and technicians, so we are able to provide one-stop and comprehensive solutions for customers.

PRODUCT DESCRIPTION

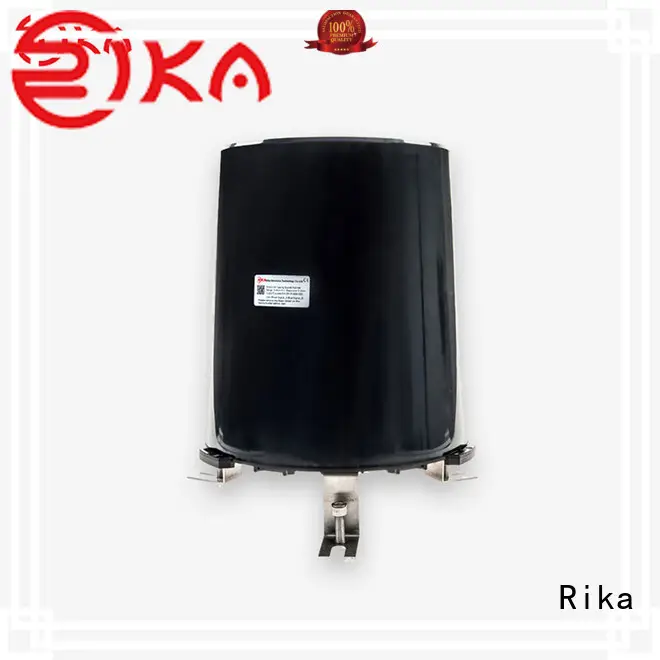

RK400-04 Economical Tipping Bucket Rainfall Sensor is a hydrology, meteorological instrument used to measure the nature of rainfall, and it converts the precipitation  into a pulse signal output. Designed with insect-proof nets, free blocking nozzle and built-in leveller. The model can be used in meteorology, hydrology, agriculture, forestry, field monitoring stations and other industries. Combined with rainfall recorder can be used to measure measure precipitation, precipitation intensity, precipitation time.

Rika great how to read a rain gauge solution provider for measuring rainfall amount-1

SPECIFICATIONS

Item

Specification

Collector

Diameter :φ200mm, height: 271mm

Measured rainfall intensity

Max: 4mm/min

Allow rainfall intensity

Max: 8mm/min

Resolution

0.2mm

Accuracy(2mm/min)

±4%

Maximum load voltage

30VDC(pulse output)

Maximum load current

20mA

Output

Pulses(@10kΩ&0.01uF),RS485(12-24VDC supply)

Operating temperature

0-60℃@0%-100%RH

Weight(unpacked)

Rainfall collector & tipping bucket: ABS,
     Supporting leg:304SS

Weight(unpacked)

2kg

WORKING PROCESS DIMENSION & MOUNTING

DIMENSION & MOUNTING

Adjust the balance foot screws to ensure that it is in a horizontal position.Using three fastening screws to fix this three support legs at the platform to keep the entire apparatus at an optimum level , which ensure the accuracy of rainfall data.

Rika great how to read a rain gauge solution provider for measuring rainfall amount-8

WORKING PROCESS

Rainfall is captured in the 200mm diameter collector funnel and is directed through a delivery pipe to fill a divided ABS injection molded tipping bucket device.The bucket is pivoted through its center and has a preset calibration to tip for 0.2 mm of rainfall. When the bucket is “full”, it pivots and empties - this action magnetically closes and opens a reed switch, sending a pulse signal to the data logger or electronic counter. Through this tipping “seesaw” action, the other side of the bucket is aligned to receive the flow from the delivery pipe. This recording and tipping cycle continues with rainfall.

PRODUCT DETAILS

Rika great how to read a rain gauge solution provider for measuring rainfall amount-9

Rika great how to read a rain gauge solution provider for measuring rainfall amount-10Product Principle

Rika great how to read a rain gauge solution provider for measuring rainfall amount-11

Rika great how to read a rain gauge solution provider for measuring rainfall amount-12 Material

Rika great how to read a rain gauge solution provider for measuring rainfall amount-13

Rika great how to read a rain gauge solution provider for measuring rainfall amount-14Leaf Filter

Rika great how to read a rain gauge solution provider for measuring rainfall amount-15

Rika great how to read a rain gauge solution provider for measuring rainfall amount-16Horizontal Adjustment
