Rika great soil sensor solution provider for soil monitoring

Rika great soil sensor solution provider for soil monitoring

Model:
RK500-01
MOQ:
1PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika great soil sensor solution provider for soil monitoring

PRODUCT DESCRIPTION

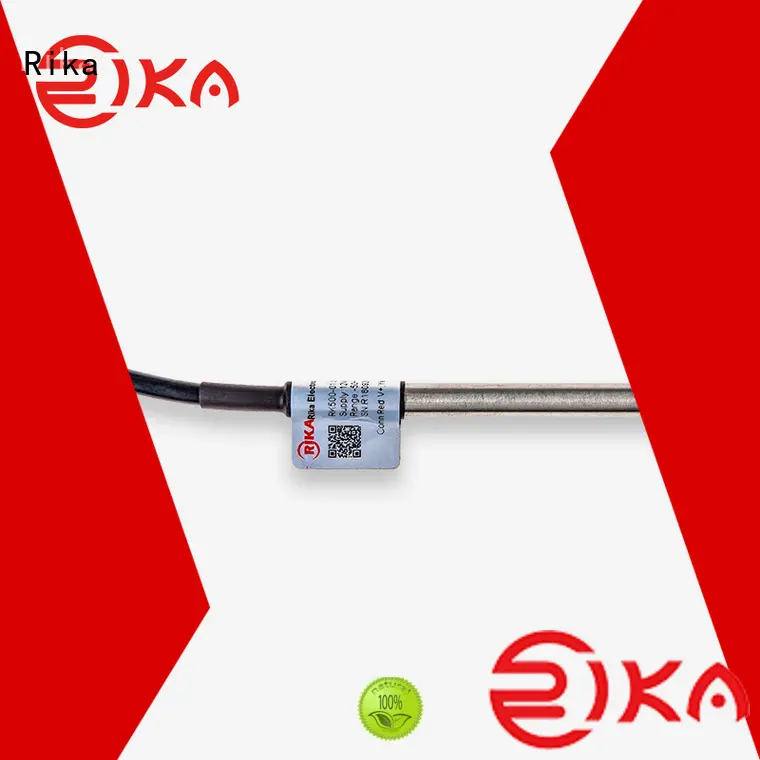

RK500-01 Soil/Liquid Temperature Sensor is used to measure the temperature of the soil or liquid medium, applied to the automatic meteorological station, soil temperature testing,  pond or reservoir water temperature detection and other fields.The products can be used into the water or buried in the soil.Sensor with precision thermal resistance as a sensing component, built-in signal sampling and amplification, zero drift and temperature compensation function, has the characteristics of high measuring precision and good stability.

Rika great soil sensor solution provider for soil monitoring-1

SPECIFICATIONS



Item

Technical Specification

Range

-20-+50℃,-50-+100℃

Supply

5VDC,12-24VDC

Accuracy

±0.5℃

Response Time

<1s

Output Signal

PT100/PT1000 class A (3-wires),4-20mA,0-5V,RS485

Operating Temperature-50℃-+80℃

Ingress Protection(probe)

IP68

Storage

10-60℃@20%-90%RH

Size

4-20mA,0-5V,RS485: Probe:Ø19 ×119 mm,Transmitting module:Ø27*120mm

PT100: Probe:Ø6 ×50mm

Probe weight(unpacked)

145g

Housing material

304 stainless steel



If you select 4-20mA,0-5V,RS485 output,need add transmitting module.



DIMENSION

Unit:mm

Rika great soil sensor solution provider for soil monitoring-8

PRODUCT DETAILS

Rika great soil sensor solution provider for soil monitoring-9

Rika great soil sensor solution provider for soil monitoring-10Product Principle & Material

Rika great soil sensor solution provider for soil monitoring-11

Rika great soil sensor solution provider for soil monitoring-12 Muitiple Output Optional

Rika great soil sensor solution provider for soil monitoring-13

Rika great soil sensor solution provider for soil monitoring-14IP67 Waterproof

PRODUCT APPLICATION
