Rika great water level probe sensor factory for industrial applications

Rika great water level probe sensor factory for industrial applications

Model:
RKL-03
MOQ:
1PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika great water level probe sensor factory for industrial applications

PRODUCT DESCRIPTION

RKL-03 Ultrasonic Liquid Level Transmitter is a kind of non-contact, high reliability, high cost performance, easy installation and maintenance of material level measuring instrument.It doesn't have to contact medium can meet the requirements of most of the material level measurement.Firing pulse and receives the pulse interval and the antenna to the surface of the measured medium is proportional to the distance, to calculate the distance on the surface of the antenna to the measured medium.The product can cooperate with RK600-01 data logger or general recording instrument is used.

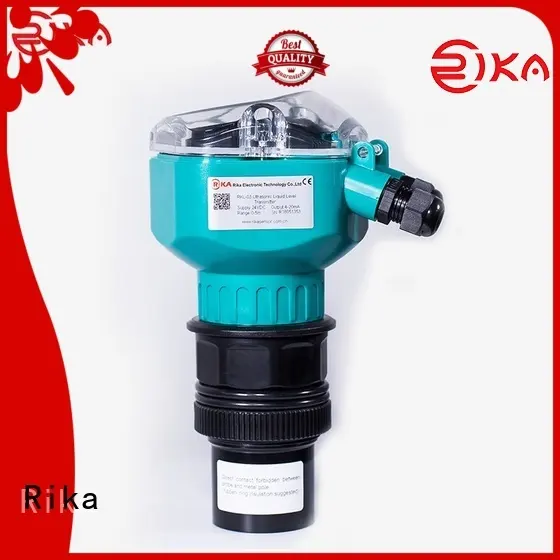

Rika great water level probe sensor factory for industrial applications-1

SPECIFICATIONS

Item

Technical specifications

Range

5m,10m,15m,20m,30m

Output

4-20mA( 2wires),4-20mA(4wires),RS485(4wires)

Supply Voltage

24VDC,220VAC

Accuracy

0.5%-1%

Resolution

±3mm or 0.1%FS(take the maximum value)

Display

LCD with English

Control output(optional)Relay AC250V/8A or 30V/5A
Power consumption

4-wire,without relay:1.9W

4-wire,with relay:3.1W

2-wire,without relay:0.72W

Ingress ProtectionProbe:IP68,Display unit:IP66
Operating TemperatureProbe:-40℃~ +85℃,Display unit:-20℃~ +60℃
Housing materialAnti-aging corrosion resistant engineering plastics
Process connection

Range=0-5m:M48*2

Range=0-10m:G2 or M60*2

Range=0-20m:G3 or M78*2

Range=0-30m:G3 M78*2

Range>30m:M108*2

Menu settingReference zero point, maximum of measuring range,minimum of measuring range,alarm point,Return difference setting,working mode,response time,parameter correction,communication setting etc.
Storage Condition10℃-50℃@20%-90%RH


PRODUCT DETAILS

MOUNTING

PRODUCT APPLICATION
