Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika great weather data logger supplier 1

Rika great weather data logger supplier 2

Rika great weather data logger supplier 3

Rika great weather data logger supplier 4

Rika great weather data logger supplier 5

Rika great weather data logger supplier 6

Rika great weather data logger supplier 7

Rika great weather data logger supplier 8

Rika great weather data logger supplier 9

Rika great weather data logger supplier 10

Rika great weather data logger supplier

Payment:

T/T, L/C or Paypal

OEM/ODM:

Available

MOQ:

1PCS

Model:

RK600-07C

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

PDF Download

PRODUCT DESCRIPTION

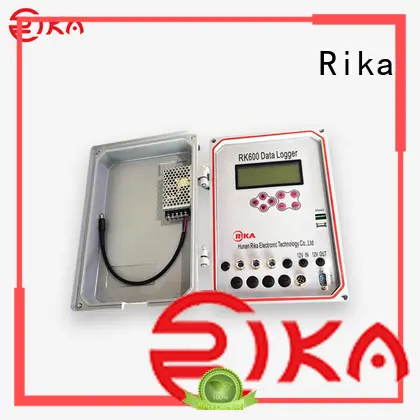

RK600-07 Data Logger with data acquisition, storage, transmission and management, and other functions, is the core component of automatic weather station, which can connect 32 parameters at the same time, has the settings and color LCD display, can communication with sever or cloud via cable or wireless connection, provide communication protocol, convenient for secondary development.

Rika great weather data logger supplier 11

Rika great weather data logger supplier 12

Real-time display

Rika great weather data logger supplier 13

Solar power supply optional

Rika great weather data logger supplier 14

Large storage

Rika great weather data logger supplier 15

Wireless optional

Rika great weather data logger supplier 16

Multiple sensor Interface

Rika great weather data logger supplier 17

Self-contained clock chip

SPECIFICATIONS

Parameter of the weather data logger

Item	Details
Display	7” color touch screen with backlight
resolving power	1024*600
Touch type	Resistive type
Screen sleep	Support
Backlight adjustable	Support
Communication status indication	Support
Internal storage	4GB+512M
Communication interface	COM1:RS232/COM2:RS485/COM3:RS485
network	Ethernet (standard), 4G, WIFI ,LoRaWan(optional)
Communication protocol	Modbus-Rtu、Modbus-TCP、HTTP、MQTT
Supply	DC12-24V, AC100-240V（adapter）
Measurement parameters	32 max
Recording interval	1-240min settable
U_disk download	Support
Relay output	customized
Average consumption	<7W
CPU	Quad core A7 processor
Power protection	Equipped with surge protection and anti reverse protection
Withstanding voltage	500VAC
Insulation impedance	Exceeding 50M Ω @ 500VDC
working temperature	-10-+60℃
Storage environment	-20 ~70℃
CE	EN55022 & EN55024
Shell	400500200mm, Support solar power supply

SYSTEM DIAGRAM

Rika great weather data logger supplier 18

PART LIST

Item	RK600-07C
Data logger	√
Protection box	√
Waterproof connector(to sensors)	√
Power connection terminal	√
USB-RS485 converter	√
Power adapter(AC100-240V@12VDC)	√
Solar charging controller	Optional
Solar panel	Optional
Lead acid battery①	Optional
Ethernet module	√
GPRS/2G/3G/4G	Optional
Lora module	Optional
Relay module	Optional
Other parts	Customizable
①Since air transportation is not available, it is recommended that users purchase locally.

CUSTOMER TESTIMONIALS

Subtitle Description

Rika great weather data logger supplier 19

Rika great weather data logger supplier 20

CERTIFICATE

Subtitle Description

Rika great weather data logger supplier 21

ISO9001

Rika great weather data logger supplier 22

TUV Certificate

Rika great weather data logger supplier 23

CE-Automatic Weather Station

Rika great weather data logger supplier 24

RoHS-Automatic Weather Station

Rika great weather data logger supplier 25

EMC-Automatic Weather Station

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
