  PRODUCT DESCRIPTION

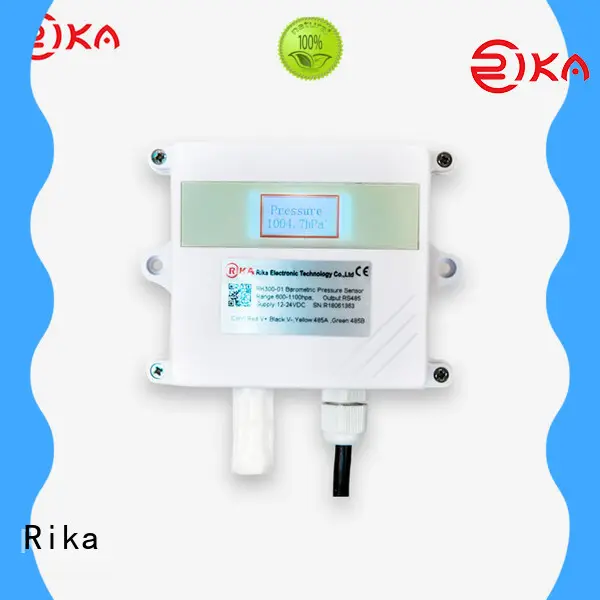

RK300-01 Wall-mounted Barometric Pressure Sensor with small size, reliable performance, high precision, long transmission distance, strong anti-jamming capability,which is widely used in meteorology, marine, environment, airports, ports, laboratory, agricultural and transportation and other fields.
SPECIFICATIONS
Item  | Technical Specification  |
Range  | 600-1100hPa(mbar)  |
Resolution  | 0.1hPa  |
Accuracy  | ±0.5hPa  |
Temperature Drift  | ≤0.02%FS/℃  |
Response Time  | <1s  |
Supply  | 5VDC, 12-24VDC  |
Output Signal  | RS485, 4-20mA, 0-5V, 0-10V optional  |
Operating Temperature  | -40℃-+75℃  |
Ingress Protection  | IP65  |
Storage  | 10-60℃@20%-90%RH  |
Dimensions  | 117 *86*40 mm  |
Weight(unpacked)  | 100g  |
DIMENSION & MOUNTING
1. Install the product in stable environment area, avoid direct sunlight, away from windows air-conditioning, heating and other equipment. Otherwise it will cause atmospheric pressure measurement inaccuracies.
2. It is recommended to install in the cabinet open to the atmosphere,for example: instrument shelter
PRODUCT DETAILS
PRODUCT APPLICATION
