Rika perfect datalogger factory for air quality monitoring
PRODUCT DESCRIPTION

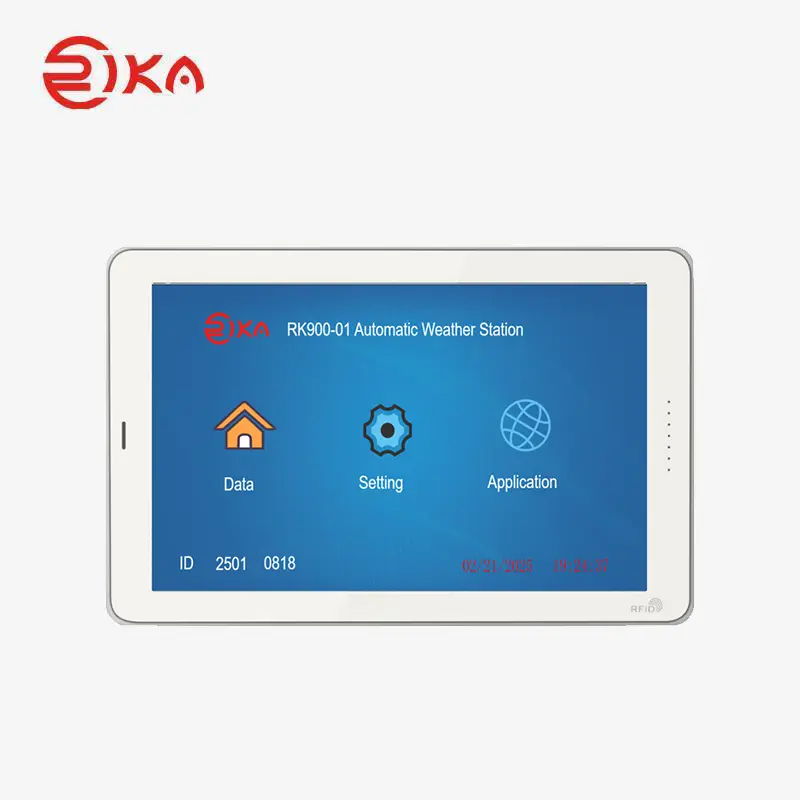

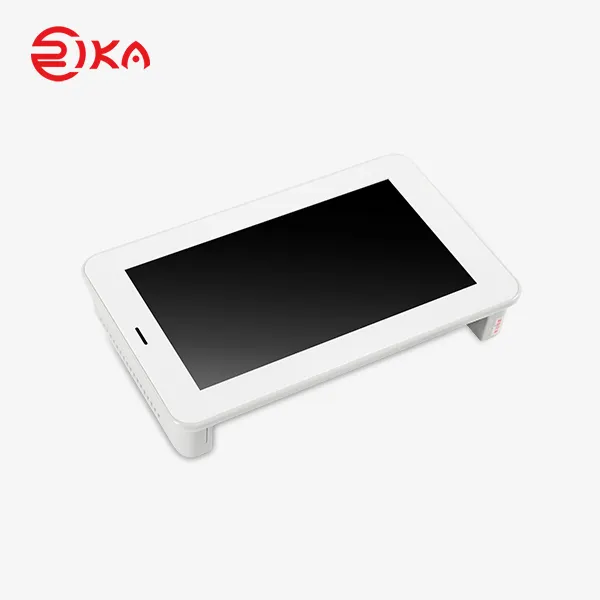

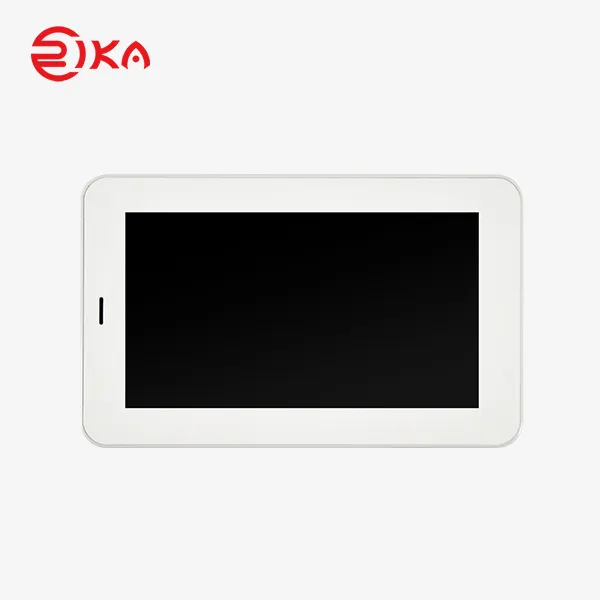

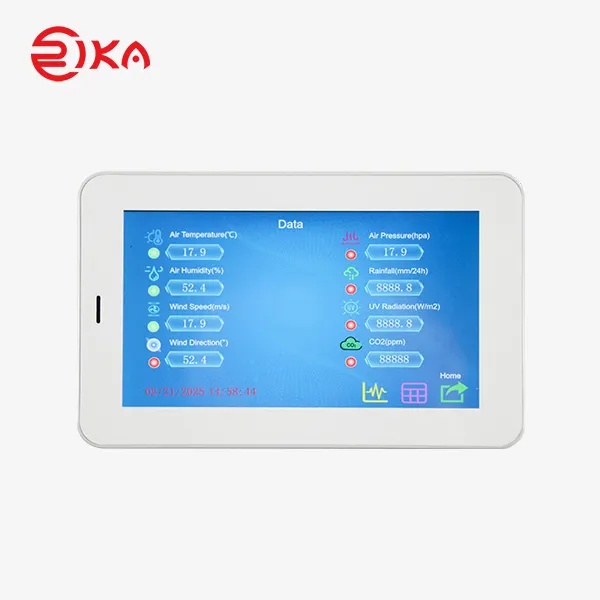

RK600-07 Data Logger with data acquisition, storage, transmission and management, and other functions, is the core component of automatic weather station, which can connect 32 parameters at the same time, has the settings and color LCD display, can communication with sever or cloud via cable or wireless connection, provide communication protocol, convenient for secondary development.
SPECIFICATIONS
Parameter of the weather data logger
Item | Details |
Display | 7” color touch screen with backlight |
resolving power | 1024*600 |
Touch type | Resistive type |
Screen sleep | Support |
Backlight adjustable | Support |
Communication status indication | Support |
Internal storage | 4GB+512M |

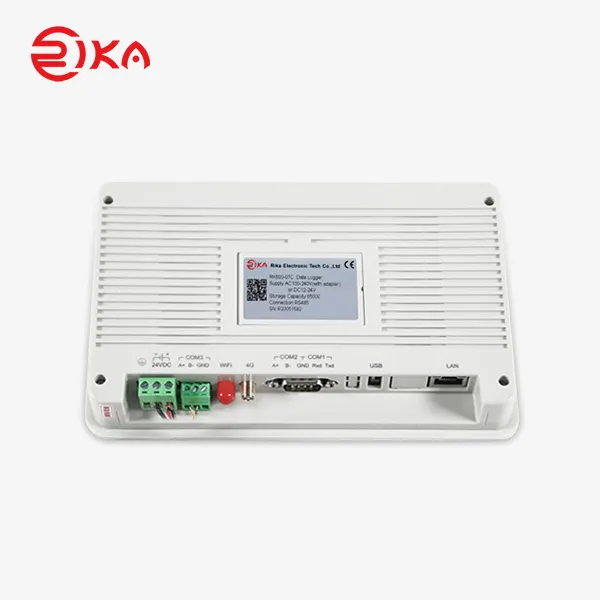

Communication interface | COM1:RS232/COM2:RS485/COM3:RS485 |
network | Ethernet (standard), 4G, WIFI ,LoRaWan(optional) |

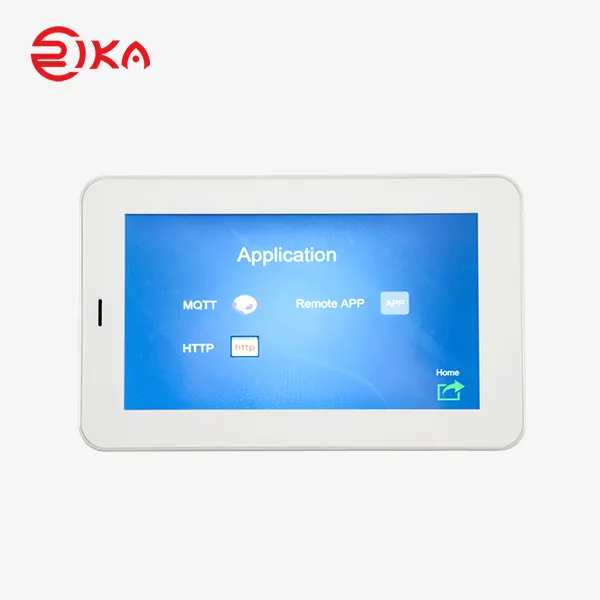

Communication protocol | Modbus-Rtu、Modbus-TCP、HTTP、MQTT |
Supply | DC12-24V, AC100-240V（adapter） |
Measurement parameters | 32 max |
Recording interval | 1-240min settable |
U_disk download | Support |
Relay output | customized |
Average consumption | <7W |
CPU | Quad core A7 processor |
Power protection | Equipped with surge protection and anti reverse protection |
Withstanding voltage | 500VAC |
Insulation impedance | Exceeding 50M Ω @ 500VDC |
working temperature | -10-+60℃ |
Storage environment | -20 ~70℃ |
CE | EN55022 & EN55024 |
Shell | 400*500*200mm, Support solar power supply |
SYSTEM DIAGRAM
PART LIST
Item | RK600-07C |
Data logger | √ |
Protection box | √ |
Waterproof connector(to sensors) | √ |
Power connection terminal | √ |
USB-RS485 converter | √ |
Power adapter(AC100-240V@12VDC) | √ |
Solar charging controller | Optional |
Solar panel | Optional |
Lead acid battery① | Optional |
Ethernet module | √ |
GPRS/2G/3G/4G | Optional |
Lora module | Optional |
Relay module | Optional |
Other parts | Customizable |
①Since air transportation is not available, it is recommended that users purchase locally. | |
