Rika perfect dust sensor solution provider for atmospheric environmental quality monitoring

Rika perfect dust sensor solution provider for atmospheric environmental quality monitoring

Model:
RK300-02
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika perfect dust sensor solution provider for atmospheric environmental quality monitoring

PRODUCT DESCRIPTION

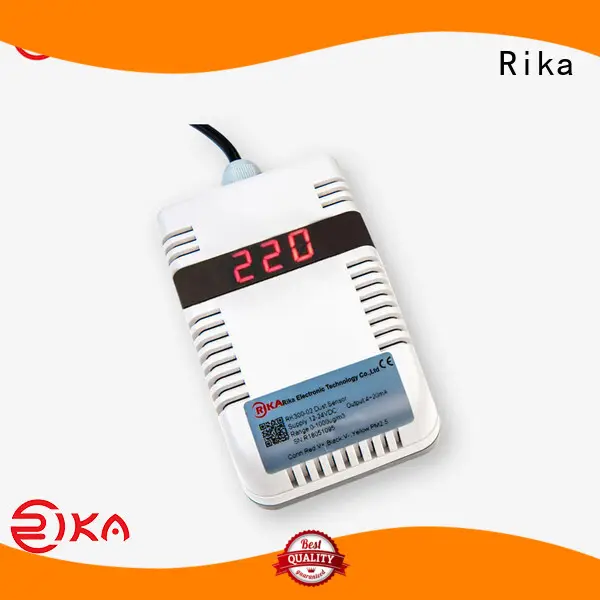

RK300-02 Dust Sensor using laser scattering principle, detecting the existence of dust particle concentration in the air, the minimum can detect 1.0um particles, has a good consistency and stability.According to different usage environment ,there are indoor type and outdoor type to select.

Rika perfect dust sensor solution provider for atmospheric environmental quality monitoring-1

SPECIFICATIONS

Item

Technical Specification

Sampling object

PM1.0, PM2.5, PM10 Concentration

Range

0-1000ug/m3

Accuracy

±3%FS@25℃

Supply

5VDC,12-24VDC

Output

4-20mA,0-5V,0-10V,RS485

Power Consumption

<50mA@24V(4-20mA)

Warm Up Time

3min

Response Time

<90s

Temperature Drift

≤0.2%FS/℃

Stability

<±2%fs

Repeatability

<±1%fs

Operating Temperature

-20℃-+50℃@15-80%RH

Storage

-40-60℃@20%-90%RH

Shell material

ABS

DIMENSION & MOUNTING

PRODUCT DETAILS

Rika perfect dust sensor solution provider for atmospheric environmental quality monitoring-10

Rika perfect dust sensor solution provider for atmospheric environmental quality monitoring-11Product Principle

Rika perfect dust sensor solution provider for atmospheric environmental quality monitoring-12

Rika perfect dust sensor solution provider for atmospheric environmental quality monitoring-13 Suitable For Harsh Environment

Rika perfect dust sensor solution provider for atmospheric environmental quality monitoring-14

Rika perfect dust sensor solution provider for atmospheric environmental quality monitoring-15Multiple Range & Output Optional

Rika perfect dust sensor solution provider for atmospheric environmental quality monitoring-16

Rika perfect dust sensor solution provider for atmospheric environmental quality monitoring-17Material & LED Display

PRODUCT APPLICATION
