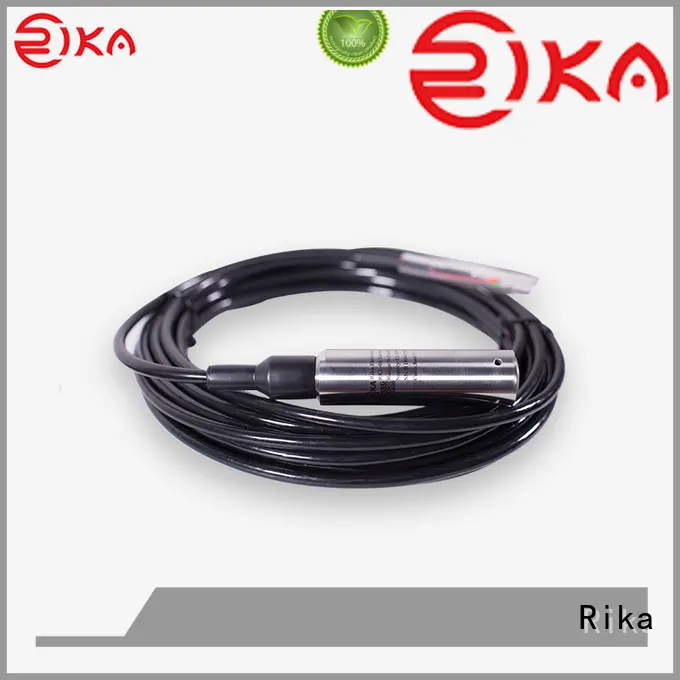

Rika perfect level probes level sensors factory for industrial applications

Rika perfect level probes level sensors factory for industrial applications

Model:
RKL-01
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika perfect level probes level sensors factory for industrial applications

PRODUCT DESCRIPTION

RKL-01 Submersible Liquid Level Transmitter  is with stainless steel isolation diaphragm diffusion silicon pressure core body, the pressure core body adopts the process of laser trimming resistor for a wide temperature range of zero and sensitivity temperature compensation. Special cable for air-venting conduit and waterproof technology ensures water tightness, and ventilation between inside and outside, so as to acquire accurate and stable measuring data.

Rika perfect level probes level sensors factory for industrial applications-1

SPECIFICATIONS

Item

Technical specifications

Range

0 ~ 0.5m…200mH2O or 0 ~ 5KPa…2MPa

Output

4-20mA,0-5V,0-10V,RS485

Supply Voltage

10-30VDC,24V typ.

Over Pressure

2×FS

Measuring Medium

The liquid(not sticky ) compatible with 316 stainless steel

Total Accuracy

0.1%FS,0.3%FS(0.25%FS),0.5%FS

Long-term Stability

0.1%FS/year typ.,0.2%FS/year max.

Ingress Protection

IP68

Operating Temperature

-40℃~ +80℃

Compensating Temperature

-10℃~ 70℃

Temperature Drifting

0.03%FS/℃ typ.,0.05%FS/℃

Cycle Life

1*10^8 @25℃

Main Material

Sensor:316L,housing:304SS(316L is optional)

Cable

Outer material:PUR,Atmospheric pressure compensation cable,
     Polymer waterproof plug at cable end

Power Consumption

Current output:(U*0.02)W, Voltage output:(U*0.008)W, Digital output:(U*0.015)W

Load Capacity

Current output:≤(U-7)/0.02Ω, Voltage output:≥100kΩ

Weight(probe unpacked)

Approx. 230g

Storage Condition

10℃-50℃@20%-90%RH

DIMENSION & FIXED BRACKET(OPTIONAL)

MOUNTING

As shown in picture 1,when the sensor is installed in static water such as in poos,water towers,probe is immersed into the bottom and should be as far as possible away from the pump or valves.The terminal box should keep above water surface and prevent water penetrating into cables.Please make sure the airway not be blocked.
As shown in picture 2,when the sensor is installed in dynamic water such as dams or rivers,probe should be inserted into a steel pipe(inner dia is around 45mm),burrowing several holes at different height on the pipe side wall which is opposite to the water flow direction.The terminal box should keep above water surface and prevent water penetrating into cables.Please make sure the airway not be blocked.

Rika perfect level probes level sensors factory for industrial applications-10
Rika perfect level probes level sensors factory for industrial applications-11

PRODUCT DETAILS

Rika perfect level probes level sensors factory for industrial applications-12

Rika perfect level probes level sensors factory for industrial applications-13Product inner part

Rika perfect level probes level sensors factory for industrial applications-14

Rika perfect level probes level sensors factory for industrial applications-15 Product accuracy and material

Rika perfect level probes level sensors factory for industrial applications-16

Rika perfect level probes level sensors factory for industrial applications-17PUR cable

Rika perfect level probes level sensors factory for industrial applications-18

Rika perfect level probes level sensors factory for industrial applications-19IP68 waterproof design

PRODUCT APPLICATION
