Rika perfect wind speed monitor factory for meteorology field

Rika perfect wind speed monitor factory for meteorology field

Model:
RK120-03
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika perfect wind speed monitor factory for meteorology field

PRODUCT DESCRIPTION

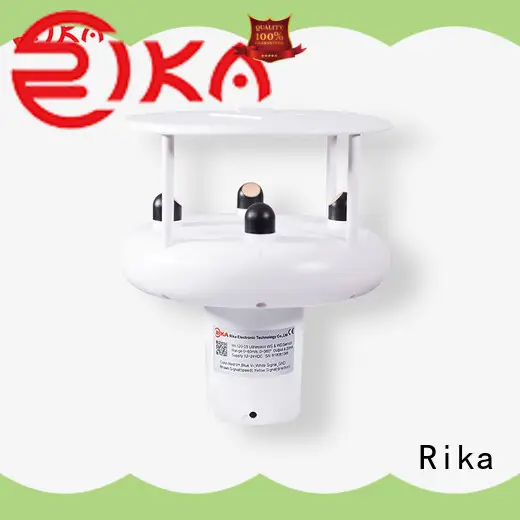

RK120-03 Economical Ultrasonic Wind Sensor is a fully digital detector, high-precision sensors,  integrated by the ultrasonic wind speed and direction sensors. it can accurately and quickly detect the wind speed, wind direction; built-in signal processing unit can output a corresponding signal in response to user needs, with the structure lightweight and compact, no moving parts, high-strength structural design can be accurately detected in the harsh climatic conditions,made the accurate and stable elements, low maintenance, an open communications protocol and so on.It can be widely used in meteorology, oceanography, environment, airports, ports, laboratories, industry and agriculture, and transportation and other fields.

Rika perfect wind speed monitor factory for meteorology field-1

SPECIFICATIONS

Item

Technical Specification

Power Supply

12-24VDC

Power consumption

<1W(Heating not activated); <3W(Heating activated)

Output Signal

RS232/RS485(Modbus/NMEA-0183),4-20mA(only for wind speed & direction) optional

Operating Temperature

-30℃-+70℃

Ingress Protection

IP66

Heating power

3W max.

Electronic compass

optional

Atmospheric pressure

optional

Dimension

Ф145*138mm

Weight(unpacked)

0.8kg

Main material

Anti-radiation ABS Engineering plastic

Item

Technical Specification

Wind speed

Wind direction

Atmospheric pressure

Range

0-45m/s,0-60m/s

0-360°

150-1100hPa

Resolution

0.01m/s

0.1hPa

Accuracy

≤10m/s:±0.2m/s
     >10m/s:<±2% the current value

±3°

±1 hPa

Starting Threshold

0.1m/s

0.1m/s


Extreme Wind Speed

60m/s

DIMENSION & MOUNTING

PRODUCT DETAILS

Rika perfect wind speed monitor factory for meteorology field-10

Rika perfect wind speed monitor factory for meteorology field-11Ultrasonic Pavilion Reflection Principle

Rika perfect wind speed monitor factory for meteorology field-12

Rika perfect wind speed monitor factory for meteorology field-13 Suitable For Harsh Environment

Rika perfect wind speed monitor factory for meteorology field-14

Rika perfect wind speed monitor factory for meteorology field-15Auto-Locate The Installation Position

Rika perfect wind speed monitor factory for meteorology field-16

Rika perfect wind speed monitor factory for meteorology field-17Connectors and installation
