Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika professional air quality monitoring equipment factory for atmospheric environmental quality monitoring

Payment:

T/T, L/C or Paypal

OEM/ODM:

Available

MOQ:

2 PCS

Model:

RK330-01

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

Application Scope

Rika Sensors's environmental sensor can be used in a variety of situations.Rika Sensors has been engaged in the production of weather sensors for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.

Product Details

Rika Sensors pays great attention to details of environmental sensor.Good materials, advanced production technology, and fine manufacturing techniques are used in the production of environmental sensor. It is of fine workmanship and good quality and is well sold in the domestic market.

PRODUCT DESCRIPTION

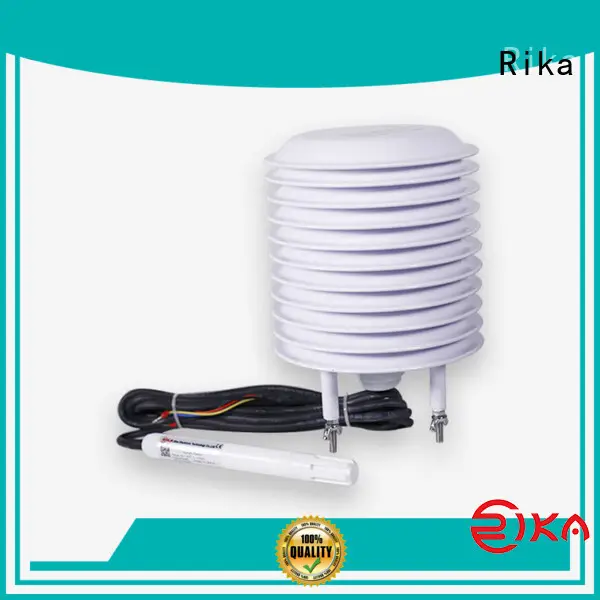

RK330-01 Atmospheric Temperature, Humidity & Pressure Sensor is a professional measurement of air temperature, relative humidity & barometric pressure. Sensors are built-in the water-proof and anti-UV shelter. It is widely used in agriculture, forestry, meteorology as well as a climate chamber, warehousing and other places.This model also can be equipped with 11 plates radiation shield(RK95-01) to protect the sensors from solar radiation and rain.

Rika professional air quality monitoring equipment factory for atmospheric environmental quality monitoring 4

High sensitivity.

LCD display optional.

Temperature compensation.

Fast response.

Multiple signal output options.

Excellent stability.

SPECIFICATIONS

Item	SPECIFICATIONS
	Temperature	Humidity	Pressure
Range	-40-60℃	0-100%RH	10-110kPa(100-1100hPa)
Resolution	0.1℃	0.5%RH	0.1hPa
Accuracy	±0.5℃	±3%RH	±1hPa
Supply	5VDC, 12-24VDC
Output Signal	4-20mA,0-5V,0-10V,RS485(MODBUS),IIC
Current Consumption	<20mA
Operating Temperature	-40℃-+80℃
Ingress Protection	IP65
Storage	10-60℃@20%-90%RH
Weight(unpacked)	120g
Probe material	ABS
Radiation Shield(optional)	RK95-01,11 plates

* Analog output only is proper for one or two measurement parameters.

DIMENSION & MOUNTING

Unit:mm

MOUNTING

1. Install the product in stable environment area, avoid direct sunlight, away from windows air-conditioning, heating and other equipment. Otherwise it will cause measurement inaccuracies.
2.Fixing rail is optional.
3.If you use indoor, recommends clamp to install, as shown on the right picture.

PRODUCT DETAILS

PRODUCT APPLICATION

Schoolyard Weather Station

Solar radiation monitoring station

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
