 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika professional ambient sensor manufacturer for humidity monitoring 1
Rika professional ambient sensor manufacturer for humidity monitoring 1

Rika professional ambient sensor manufacturer for humidity monitoring

Payment:
T/T, L/C or Paypal
OEM/ODM:
Available
MOQ:
2 PCS
Model:
RK300-04
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry
Product Comparison
weather sensors has the following advantages: well-chosen materials, reasonable design, stable performance, excellent quality, and affordable price. Such a product is up to the market demand.Rika Sensors's weather sensors has been substantially improved in a scientific way, as shown in the following aspects.
  • Rika professional ambient sensor manufacturer for humidity monitoring 2
    v s
    Rika professional ambient sensor manufacturer for humidity monitoring 3
Application Scope
Rika Sensors's weather sensors is mostly used in the following scenes.Rika Sensors always provides customers with reasonable and efficient one-stop solutions based on the professional attitude.
  • Rika professional ambient sensor manufacturer for humidity monitoring 4

PRODUCT DESCRIPTION

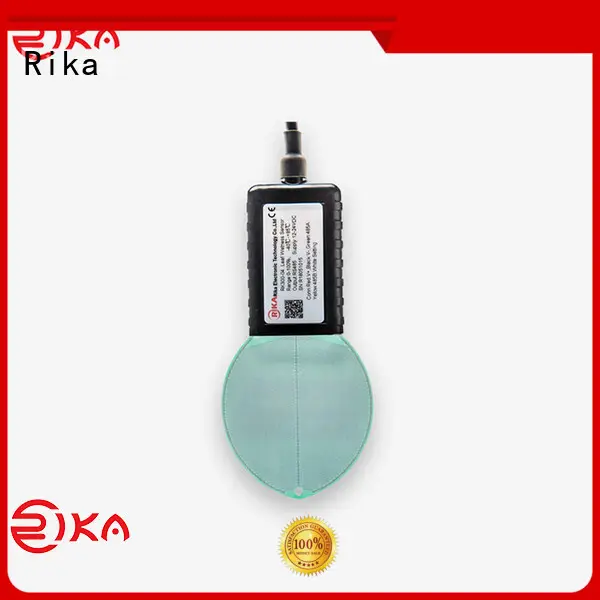

RK300-04 Leaf Wetness Sensor is an important tool for observing and studying leaf wetness, preventing pests and diseases, and spraying sprinkler control. The accurate measurement of the moisture content of the leaf surface can be used to monitor the trace moisture or ice crystal residue. The shape of the sensor is simulated by the blade, which can simulate the characteristics of the leaf surface, so that it can reflect the situation of the leaf surface more accurately. By measuring the variation of the dielectric constant of the upper surface of the blade, the mist, water vapor and ice can be measured.

Rika professional ambient sensor manufacturer for humidity monitoring 5

SPECIFICATIONS

Item

Technical Specification

Range

Wetness: 0-100%
     Temperature: -40-+80℃

Accuracy

Wetness: ±3%(0-50%),±5%(>50%)
    Temperature: ±0.5℃

Repeatability

<±3%fs

Temperature Drift

≤0.2%FS/℃

Supply

5VDC,12-24VDC

Output

4-20mA,0-5V,0-2V,RS485

IP Rating

IP65

Operating Temperature

-40℃-+80℃

Dimension

65*13*145mm

Storage

-40-70℃@20%-90%RH

DIMENSION & MOUNTING

Rika professional ambient sensor manufacturer for humidity monitoring 12

When installing the sensor to simulate the face of the grid part of the face, roughly the same angle with the surrounding surface and the ground. Such as foliar fertilization spray testing, can be installed in the plant height of different height, to ensure that the plant close to the ground effect of foliar fertilization.

PRODUCT DETAILS

Rika professional ambient sensor manufacturer for humidity monitoring 13

Rika professional ambient sensor manufacturer for humidity monitoring 14Product Principle

Rika professional ambient sensor manufacturer for humidity monitoring 15

Rika professional ambient sensor manufacturer for humidity monitoring 16 Multiple Output Optional

Rika professional ambient sensor manufacturer for humidity monitoring 17

Rika professional ambient sensor manufacturer for humidity monitoring 18RS485 Or RS232 Output

Rika professional ambient sensor manufacturer for humidity monitoring 19

Rika professional ambient sensor manufacturer for humidity monitoring 20 Product Features

PRODUCT APPLICATION



Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
